QSFP+, MPO, 150 m
Description

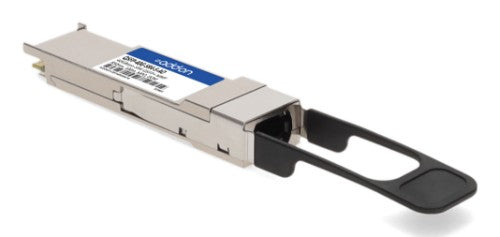

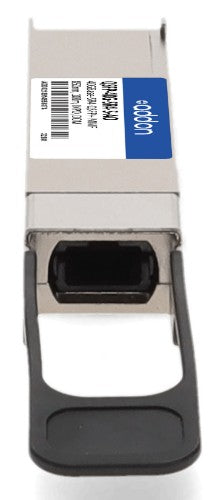

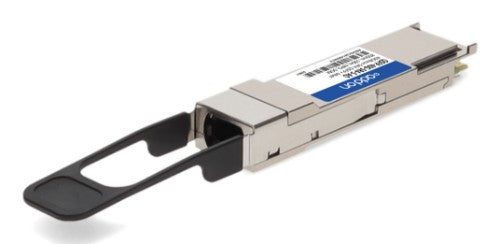

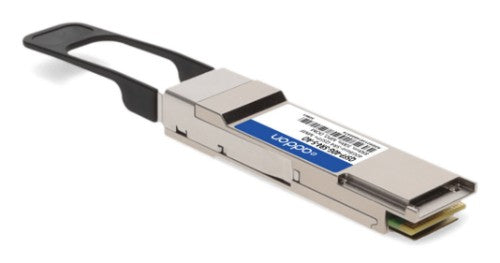

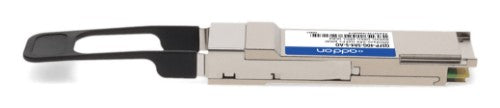

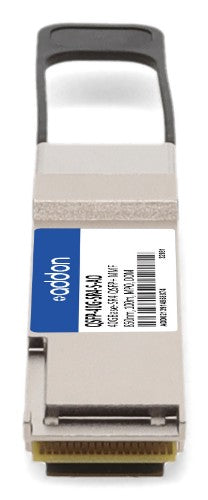

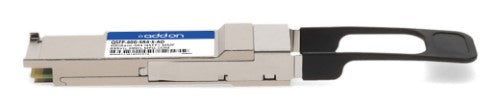

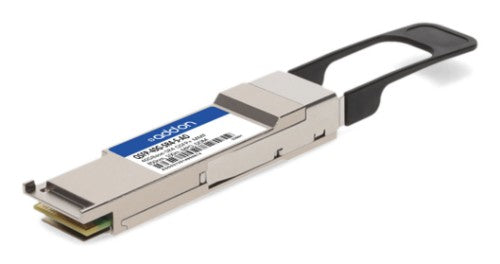

This Cisco® QSFP-40G-SR4-S compatible QSFP+ transceiver provides 40GBase-SR4 throughput up to 150m over multi-mode fiber (MMF) using a wavelength of 850nm via an MPO connector. It can operate at temperatures between 0 and 70C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Cisco®. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
QSFP+ |
| Maximum transfer distance |
150 m |
| Wavelength |
850 nm |
| Maximum data transfer rate |
40000 Mbit/s |
| Interface type |
QSFP+ |
| Multi-mode fiber (MMF) supported |
Yes |
| SFP transceiver standard |
SR4 |
| Fiber ethernet cabling technology |
40GBASE |
| Easy to install |
Yes |
| Product colour |
Black, Stainless steel |
| Housing material |
Metal |
| Hot-Plug support |
Yes |
| Hot-swap |
Yes |
| Brand compatibility |
Cisco |
| Features |
|---|
| Easy to install |
Yes |
| Product colour |
Black, Stainless steel |
| Housing material |
Metal |
| Hot-Plug support |
Yes |
| Hot-swap |
Yes |
| Brand compatibility |
Cisco |
| Power |
|---|
| Maximum voltage |
3.465 V |
| Input voltage |
3.3 V |
| Certificates |
|---|
| Compliance certificates |
CE, Network Equipment Building Standards (NEBS), REACH, RoHS, Trade Agreements Act (TAA), WEEE |
| Sustainability |
|---|
| Doesn't contain |
Lead |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
QSFP+ |
| Maximum data transfer rate |
40000 Mbit/s |
| Interface type |
QSFP+ |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Hot-Plug support |
Yes |
| Hot-swap |
Yes |
| Maximum transfer distance |
150 m |
| Wavelength |
850 nm |
| Doesn't contain |
Lead |
| Compliance certificates |
CE, Network Equipment Building Standards (NEBS), REACH, RoHS, Trade Agreements Act (TAA), WEEE |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
