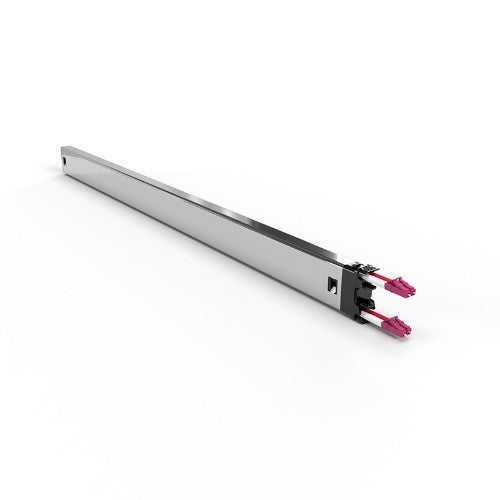

PATCHBOX® Plus+ Fiber Optic Cassette (OM4, LC-LC, 1.8m / 30RU)
Key Features
- Extendable fiber optic cables for perfect patching
- Interchangeable modular cassette system
- Cable stopper for precise adjustment of cable length
- Integrated cassette labelling
- OS2 RBS 9µ/125µ, LSZH
- Connector: LC Duplex - SC Duplex
- Cable length: 1.8m (30RU)
Description
PATCHBOX® is the most innovative cabling system for network cabinets ever. No more cable spaghetti, as the fiber optic cables are always available in the correct length. Easy to install and reduced maintenance. Saves massive amounts of time and money. The PATCHBOX® Plus+ is suitable for up to 30RU with a cable length of 1.8m. ISO/IEC tested fibre optic cables with Corning®-fibres. Extractable fibre optic cables for the perfect length. Cable stopper for precise cable length adjustment. Each PATCHBOX® Cassette has its own labelling option. Steel frame for up to 24 PATCHBOX® Cassettes. PATCHBOX® Patchcatch (0RU cable management) also included for free. Easy replacement of PATCHBOX® Cassettes. PATCHBOX® has been designed with speed and simplicity in mind. The installation of the PATCHBOX® and the patching of the 24 cables is on average 8 times faster than the conventional method. Likewise, the typical maintenance work (moves, adds, changes) and the replacement of a switch are even 10 times faster. In addition, the PATCHBOX® enables a higher packing density in the network cabinet compared to the conventional method. This means: More components in your network cabinet with a better overview!
Specifications
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable type |
OFC |
| Cable length |
1.8 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.1 dB |
| Features |
|---|
| Fibre optic type |
OM4 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable type |
OFC |
| Cable length |
1.8 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Operating temperature (T-T) |
10 - 45 °C |
| Insertion loss |
0.1 dB |
| Data transfer rate |
100 Gbit/s |
| Certification |
CE |
| Country of origin |
Hungary |
| Ethernet interface type |
100 Gigabit Ethernet |
| Wavelengths supported |
850,1300 nm |
| Product colour |
Violet |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Data transmission |
|---|
| Data transfer rate |
100 Gbit/s |
| Material |
|---|
| Material |
Polyoxymethylene (POM), Steel |
| Certificates |
|---|
| Certification |
CE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 45 °C |
| Weight & dimensions |
|---|
| Cable length |
1.8 m |
| Package width |
50 mm |
| Package depth |
690 mm |
| Package height |
50 mm |
| Package weight |
400 g |
| Packaging data |
|---|
| Package width |
50 mm |
| Package depth |
690 mm |
| Package height |
50 mm |
| Package weight |
400 g |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Material |
Polyoxymethylene (POM), Steel |
