Description
2 × TL-PA7027P, 300 m max, Gigabit Ethernet, HomePlug AV/AV2, 58x42x95mm
Your Existing Electrical Wiring

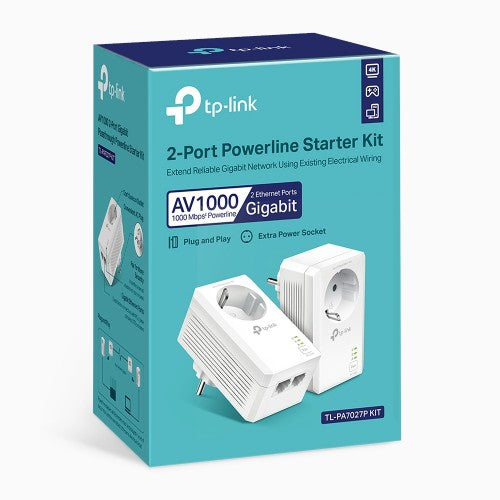

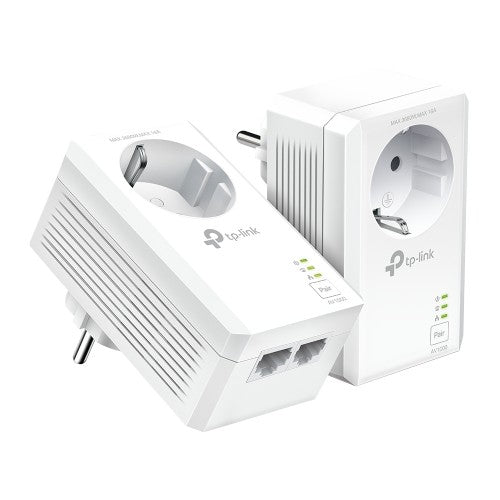

AV1000 2-Port Gigabit Passthrough Powerline Starter Kit
Extend an AV1000
Speed Network to Any Outlet
- No need for new wires or drilling
- Network passes through walls and floors
Integrating advanced HomePlug AV2 technology, this kit provides users with high-speed data transfer rates up to 1000 Mbps, which is ideal for bandwidth-intensive applications such as simultaneous HD/3D/4K video streaming, online gaming, and large file transfers. Just plug in and enjoy!

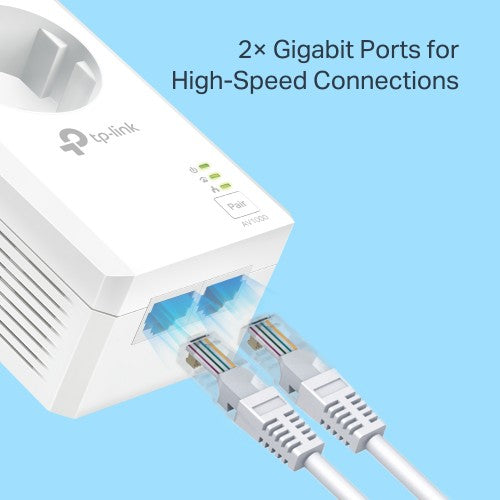

2× Gigabit Ports for High-Speed Connections
Provide reliable high-speed wired connections for game consoles, smart TVs, STBs, and more.

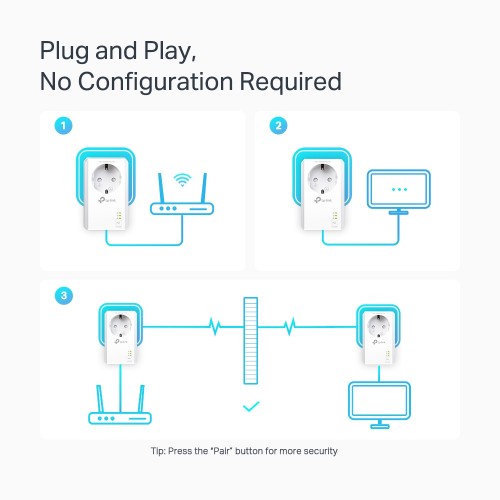

Plug and Play, No Configuration Required
Key Features
- HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
- 2 Gigabit Ports - provides secure wired networks for desktops, smart TVs or games consoles
- Plug and Play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired connections right away
- Extra Power Socket - ensures no power outlet goes to waste
- Patented Power-Saving Mode - automatically reduces power consumption by up to 85%
Description
Extend a Gigabit Network viaYour Existing Electrical Wiring
AV1000 2-Port Gigabit Passthrough Powerline Starter Kit
Extend an AV1000
Speed Network to Any Outlet
- No need for new wires or drilling
- Network passes through walls and floors
Integrating advanced HomePlug AV2 technology, this kit provides users with high-speed data transfer rates up to 1000 Mbps, which is ideal for bandwidth-intensive applications such as simultaneous HD/3D/4K video streaming, online gaming, and large file transfers. Just plug in and enjoy!
2× Gigabit Ports for High-Speed Connections
Provide reliable high-speed wired connections for game consoles, smart TVs, STBs, and more.
Plug and Play, No Configuration Required
Specifications
| Performance | |
|---|---|
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | No |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 1901, IEEE 802.3, IEEE 802.3u |
| Power plug | Type E / F |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Modulation | COFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Encryption button | Yes |
| Plug and Play | Yes |
| Technical details | |
| Antenna type | Internal |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | No |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 1901, IEEE 802.3, IEEE 802.3u |
| Power plug | Type E / F |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Modulation | COFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| LED indicators | LAN, Power |
| Encryption button | Yes |
| Product colour | White |
| Plug and Play | Yes |
| Certification | CE, RoHS |
| Compliance certificates | CE, RoHS |
| Power | |
| Power consumption (typical) | 4 W |
| Power consumption (standby) | 0.84 W |
| Design | |
| Antenna type | Internal |
| LED indicators | LAN, Power |
| Product colour | White |
| Certification | CE, RoHS |
| System requirements | |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |

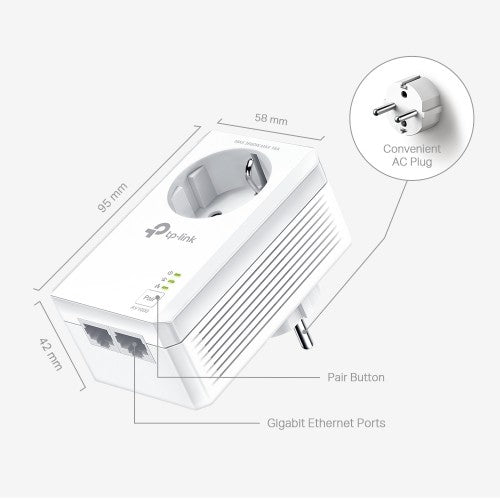

| Weight & dimensions | |
| Width | 58 mm |
| Depth | 42 mm |
| Height | 95 mm |
| Package width | 190 mm |
| Package depth | 136 mm |
| Package height | 100 mm |
| Package weight | 580 g |
| Packaging data | |
| Package type | Box |
| Package width | 190 mm |
| Package depth | 136 mm |
| Package height | 100 mm |
| Package weight | 580 g |
| Certificates | |
| Compliance certificates | CE, RoHS |

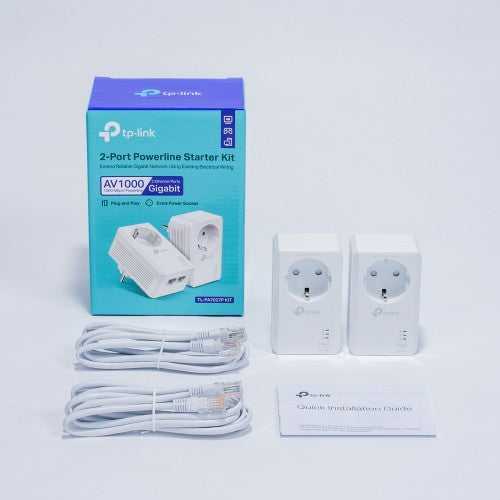

| Packaging content | |
| Manual | Yes |
| Quantity per pack | 2 pc(s) |
| Package type | Box |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
