Description
USB-C Triple Display DP Alt. Mode Docking Station – MA3 with 100W Power Delivery - 2 x DP and 1 x HDMI with up to 4K 60Hz Support
The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop.
*Refer to the resolution support table for details on different resolutions supported with the dock.
Comprehensive Connectivity

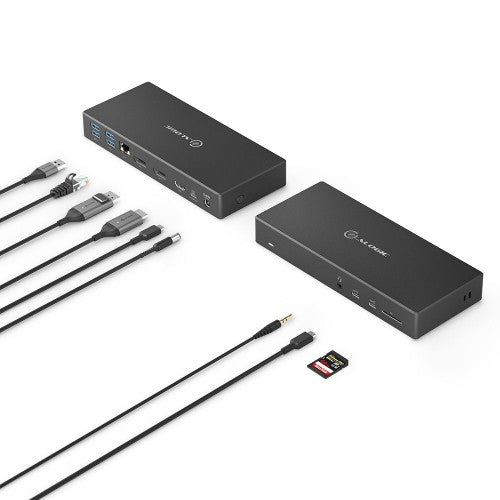

The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card
The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment.
*Refer to the resolution support table for details on different resolutions supported with the dock.
100W Laptop Charging/Power Delivery
The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time.
Plug and Play: Driverless
With a plug-and-play design, the MA3 dock becomes an extension of your laptop without the need for software or drivers.
Description
Triple DisplayThe MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop.
*Refer to the resolution support table for details on different resolutions supported with the dock.
Comprehensive Connectivity
The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card
The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment.
*Refer to the resolution support table for details on different resolutions supported with the dock.
100W Laptop Charging/Power Delivery
The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time.
Plug and Play: Driverless
With a plug-and-play design, the MA3 dock becomes an extension of your laptop without the need for software or drivers.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 100 W |
| DisplayPort version | 1.4 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 5120 x 2880 pixels |
| Number of displays supported | 3 |
| Product colour | Black |
| Card reader integrated | Yes |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Certification | FCC, CE |
| HD type | 4K Ultra HD |
| Technical details | |
| Product colour | Black |
| Cable lock slot | Yes |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | RoHS |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Power | |
| Power source type | DC |
| Power supply | 170 W |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Weight | 360 g |
| Width | 880 mm |
| Depth | 2100 mm |
| Height | 290 mm |
| Design | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Product colour | Black |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Certification | FCC, CE |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual | Yes |
| Cables included | AC |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Certification | FCC, CE |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
