Description
1/2.8" CMOS, 1920x1080px, 60 fps, 4.4-132mm f-f, 4.6 F, 25W, 136x136x180mm, 1.5kg
Key Features
- 3G-SDI and HDMI outputs; Camstreamer 3-month trial included; HDTV 1080p at 60 fps and 30x zoom; High-quality audio with XLR inputs; VISCA and VISCA over IP support
Description

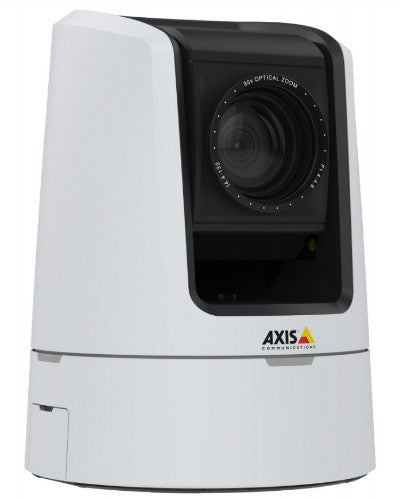

AXIS V5925 combines excellent image quality with smooth PTZ control and broadcast-quality audio for professional webcasting. It’s compatible with VISCA joysticks and VISCA over IP, making it easy to integrate with your existing AV installations. Offering enhanced security features such as signed firmware and secure boot, it ensures the integrity and authenticity of the firmware. Furthermore, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. NDI® compliant (license to be bought separately).Specifications
| Performance | |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor |
| Auto-tracking | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A , KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, KC-Mark, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267 |
| Design | |
| Fog proof | Yes |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Housing material | Plastic |
| Camera | |
| Minimum illumination | 0.03 lx |
| Tilt angle range | -20 - 90° |
| Tilt speed | 90 °/sec |
| Pan range | -170 - 170° |
| Pan speed | 100 °/sec |
| Camera shutter speed | 1/10000 - 1 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 62° |
| Lens viewing angle, vertical | 37° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 4.6 |
| Auto focus | Yes |
| Minimum aperture number | 1.4 |
| Zoom capability | Yes |
| Optical zoom | 30x |
| Digital zoom | 12x |
| Focal length range | 4.4 - 132 mm |
| Video | |
| Image quality adjustment | Brightness, Saturation, Sharpness |
| Text caption overlay | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 160 x 90, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Audio | |
| Sample rate | 48 kHz |
| Audio formats supported | AAC-LC, ADPCM, LPCM |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4/v6, HTTP, HTTP/2, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT, Syslog, HDMI 1.4, 3G-SDI |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| RS-232 ports | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Video motion detection | Yes |
| Security algorithms | 802.1x RADIUS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Power | |
| Power source type | DC |
| Power consumption (max) | 25 W |
| Power consumption (typical) | 14 W |
| Certificates | |
| Certification | 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A , KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, KC-Mark, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width | 136 mm |
| Depth | 136 mm |
| Height | 180 mm |
| Weight | 1.5 kg |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Other features | |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
