Description
2x2 MP Dual Multidirectional Camera, 360° IR Illumination, Forensic WDR, HDTV 1080p@25/30fps, H.264, 1024 MB RAM, 512 MB Flash, PoE, IK10/IP67
See it all – 24/7
Do you want to see in two direction simultaneously? AXIS P3715-PLVE offers two channels with 2 MP per channel, at a frame rate of 30 fps letting you capture both wide angle and zoomed-in, detailed views. Featuring AXIS Lightfinder you get color images recorded in near darkness. And, Forensic WDR ensures clarity when there's both dark and light areas in the scene. Additionally, it includes 360° IR illumination with individually controllable LEDs and an automatic IR cut filter. When the filter is removed, the camera takes advantage of invisible near-infrared light from available light sources to produce quality black and white images. So, you'll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness as well as undistorted colors during the day.
Brilliant Design

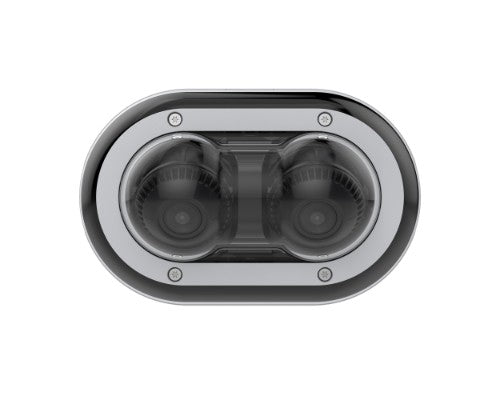

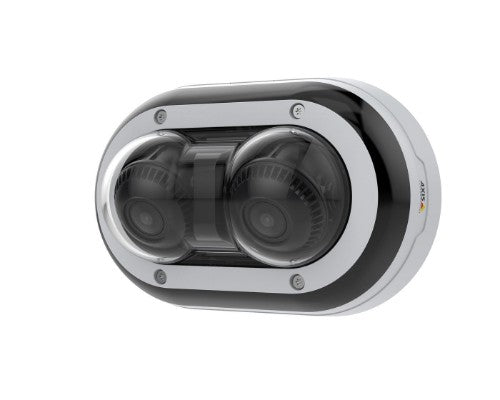

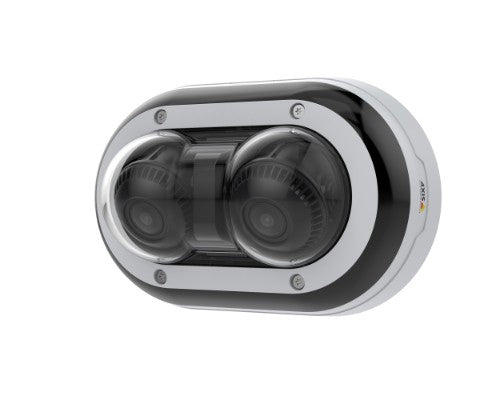

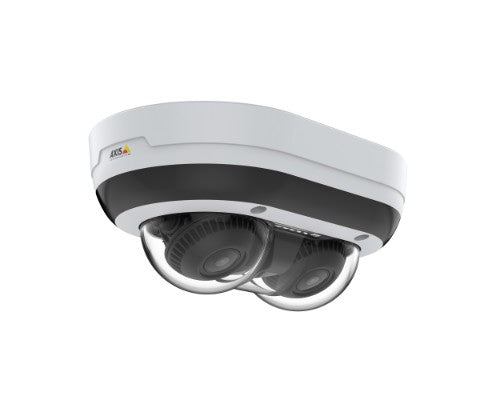

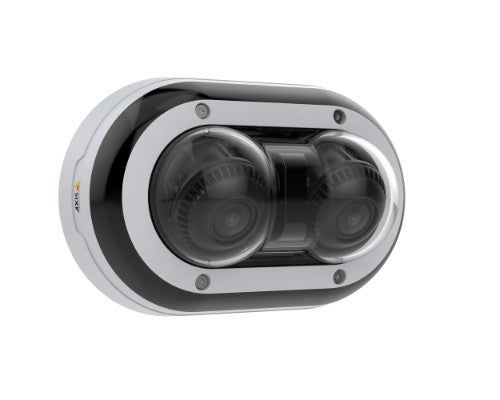

With its unique peanut-shaped dome design, this compact, multidirectional camera helps minimize reflections and ensures you capture great quality images. It offers flexible positioning of both varifocal camera heads so they can be moved and rotated to provide the optimal field of view for a wide range of circumstances. And, each head can be controlled individually allowing you to monitor scenes in two directions in wide or zoomed-in views. The camera's sensors can also be twisted, allowing two camera heads to be positioned closer together, so one can take the wide view and the other can zoom in on the same target. This is the perfect setup for straight hallways or at the corners of an intersection where it can look in both directions simultaneously.
This cost-effective camera offers edge storage allowing you to record directly to an onboard Micro SD™ card for added storage capability and reliability. Furthermore, it includes an optional IP66/IP67 rated weather shield that protects against rain, snow and sunlight, ideal for outdoor wall mounting. The shield can also be repainted to easily blend in with any surroundings.
Cost-efficient installation
With two camera heads in one camera, AXIS P3715-PLVE offers cost-effective installation, not only when compared with the price of two standard varifocal cameras of comparable performance. That's because with AXIS P3715-PLVE there's only one camera to install, one cable to run, and one IP address, one video management software (VMS) license and just one license for any analytics you choose to install. Thanks to its peanut-shaped design, it allows for easy cable routing. And, remote zoom and focus capabilities eliminates the need for hands-on fine tuning. Furthermore, Axis Zipstream with support for H.264 significantly lowers bandwidth and storage requirements without compromising on image quality.
Key Features
- 2x2 MP, multidirectional camera, with one IP address
- Pan, tilt, rotate capabilities
- 360° IR illumination and remote zoom and focus
- Axis Lightfinder and Forensic WDR
- Zipstream with support for H.264
Description
Ideal for school corridors and hallways, AXIS P3715-PLVE lets you easily monitor two different areas with a single camera, around the clock and even in challenging lighting. You can count on excellent overviews and detailed coverage thanks to the brilliant design of this cost-effective solution.See it all – 24/7
Do you want to see in two direction simultaneously? AXIS P3715-PLVE offers two channels with 2 MP per channel, at a frame rate of 30 fps letting you capture both wide angle and zoomed-in, detailed views. Featuring AXIS Lightfinder you get color images recorded in near darkness. And, Forensic WDR ensures clarity when there's both dark and light areas in the scene. Additionally, it includes 360° IR illumination with individually controllable LEDs and an automatic IR cut filter. When the filter is removed, the camera takes advantage of invisible near-infrared light from available light sources to produce quality black and white images. So, you'll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness as well as undistorted colors during the day.
Brilliant Design
With its unique peanut-shaped dome design, this compact, multidirectional camera helps minimize reflections and ensures you capture great quality images. It offers flexible positioning of both varifocal camera heads so they can be moved and rotated to provide the optimal field of view for a wide range of circumstances. And, each head can be controlled individually allowing you to monitor scenes in two directions in wide or zoomed-in views. The camera's sensors can also be twisted, allowing two camera heads to be positioned closer together, so one can take the wide view and the other can zoom in on the same target. This is the perfect setup for straight hallways or at the corners of an intersection where it can look in both directions simultaneously.
This cost-effective camera offers edge storage allowing you to record directly to an onboard Micro SD™ card for added storage capability and reliability. Furthermore, it includes an optional IP66/IP67 rated weather shield that protects against rain, snow and sunlight, ideal for outdoor wall mounting. The shield can also be repainted to easily blend in with any surroundings.
Cost-efficient installation
With two camera heads in one camera, AXIS P3715-PLVE offers cost-effective installation, not only when compared with the price of two standard varifocal cameras of comparable performance. That's because with AXIS P3715-PLVE there's only one camera to install, one cable to run, and one IP address, one video management software (VMS) license and just one license for any analytics you choose to install. Thanks to its peanut-shaped design, it allows for easy cable routing. And, remote zoom and focus capabilities eliminates the need for hands-on fine tuning. Furthermore, Axis Zipstream with support for H.264 significantly lowers bandwidth and storage requirements without compromising on image quality.
Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A Safety IEC/EN/UL 62368-1, IEC/EN 62471, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
| Design | |
| Weatherproof | Yes |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Wall |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Plastic, Polycarbonate (PC) |
| Camera | |
| Minimum illumination | 0.17 lx |
| Tilt angle range | -75 - 75° |
| Pan range | -110 - 110° |
| Angle of rotation | 170° |
| Camera shutter speed | 1/32500 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 95° |
| Lens viewing angle, vertical | 52° |
| Lens viewing angle, diagonal | 110° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 2 |
| Lens system | |
| Number of lenses | 2 |
| Auto focus | Yes |
| Minimum aperture number | 1.8 |
| Focus | Motorized |
| Zoom capability | Yes |
| Focal length range | 3 - 6 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 15 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
| Infra-red wavelength | 850 nm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Text caption overlay | Yes |
| Video compression formats | H.264, MPEG4 |
| Maximum resolution | 1920 x 1080 pixels |
| Supported video modes | 360p, 1080p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 2 MP |
| Audio | |
| Audio system | 2-way |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT, Syslog |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| Security algorithms | EAP-TLS, FIPS 140-2, HTTPS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 12.95 W |
| Power consumption (typical) | 7.06 W |
| Certificates | |
| Certification | EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A Safety IEC/EN/UL 62368-1, IEC/EN 62471, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 133 mm |
| Depth | 208 mm |
| Height | 87.6 mm |
| Weight | 905 g |
| Packaging content | |
| Number of cameras | 1 |
| Sun shield included | Yes |
| Mounting brackets included | Yes |
| Other features | |
| Focus | Motorized |
| Video compression formats | H.264, MPEG4 |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
