Description
Logitech Swytch
Key Features

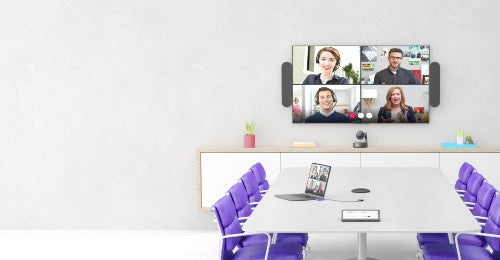

- Join any meeting from every room – With a single connection, Logitech Swytch links a laptop to the room’s display and conference camera for use with any video conferencing, streaming or webinar software. For rooms with or without a dedicated meeting room computer.

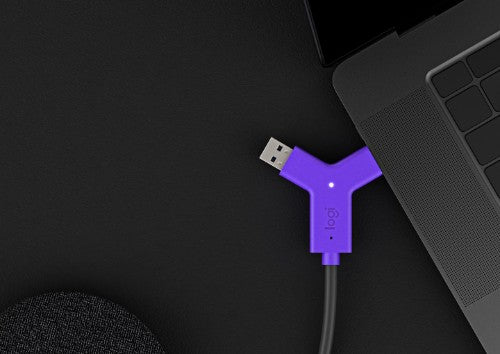

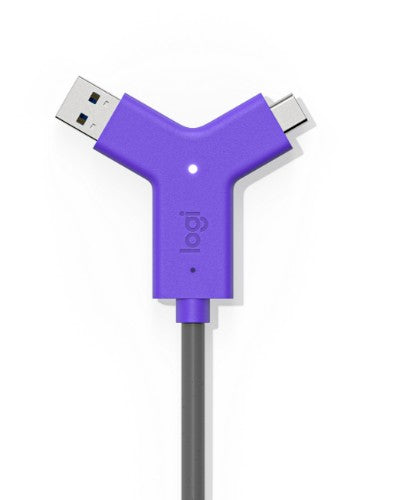

- Single-cable link – Universal USB type A+C connection to most Windows laptops, MacBooks and Chromebooks, with no dongle or adapter required (requires USB 3.0 type A or C port and DisplayLink drivers).
- Compatible with Microsoft Teams Rooms, Zoom Rooms and other software-based video-conferencing room solutions – Allows people to use the room solution's conference camera and display for external meetings, webinars and video broadcasts.
- Auto-sensing hub – Automatically switches the room’s display and conference camera between the meeting room computer (if equipped) and a connected laptop, so rooms stay ready for every meeting.

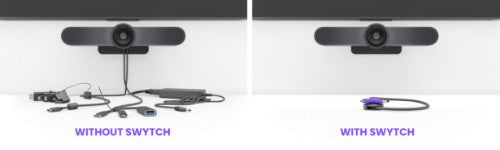

- Clean tabletop – Universal USB type A + C connector with USB Power Delivery is compatible with most laptops. It eliminates the adapters that clutter the conference room and prevents a drained battery from cutting conversations short.
- Up to 4K video – Swytch supports video and content sharing resolutions all the way to 4K for broadcast-quality meetings, live streams and virtual events.
Description
Logitech Webcam SWYTCH Conference Laptop Expension Notebook-Verbindung Hub 2xHDMI 2xUSB-CSpecifications
| Features | |
|---|---|
| Plug and Play | Yes |
| Frame rate | 30 fps |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| LED indicators | Yes |
| Product colour | Graphite |
| Compatible products | Logitech Rally, MeetUp, GROUP, Microsoft Teams Rooms, Zoom Rooms |
| Windows operating systems supported | Yes |
| Mac operating systems supported | MacOS |
| Technical details | |
| Plug and Play | Yes |
| Frame rate | 30 fps |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Product colour | Graphite |
| Compatible products | Logitech Rally, MeetUp, GROUP, Microsoft Teams Rooms, Zoom Rooms |
| Connectivity technology | Wired |
| Ports & interfaces | |
| USB ports quantity | 6 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | Micro-USB B, USB Type-A, USB Type-C |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.0 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Power | |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| Power source type | AC |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Transmitter dimensions (WxDxH) | 120 x 120 x 27.4 mm |
| Receiver dimensions (WxDxH) | 164 x 90 x 27.4 mm |
| Package depth | 266 mm |
| Package width | 243 mm |
| Package height | 115 mm |
| Package weight | 2.6 kg |
| Packaging data | |
| Package depth | 266 mm |
| Package width | 243 mm |
| Package height | 115 mm |
| Package weight | 2.6 kg |
| Packaging content | |
| Mounting kit | Yes |
| Cables included | HDMI, USB |
| AC adapter included | Yes |

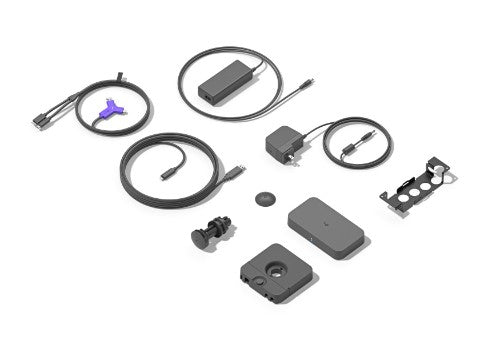

| Packaging content | Swytch Hub Swytch Extender Swytch Connector with 1.5m / 4.9ft USB Cable 100-240v Swytch Hub Power Supply 100-240v Swytch Extender Power Supply 5m / 16.4ft USB 3.0 Cable 2.2m / 7.2ft USB 3.0 Cable 2.0m / 6.5ft HDMI 2.0 Cable Mounting Accessories Documentation |
| Included power plug types | EU |
| Logistics data | |
| Master (outer) case width | 241 mm |
| Master (outer) case length | 278 mm |
| Master (outer) case height | 265 mm |
| Master (outer) case gross weight | 5.23 kg |
