Description
Monitor 172B9TL LCD monitor with SmoothTouch
Reasons To Buy
SmoothTouch display for natural, fluid touch response
This Philips display uses Projected capacitive 10-point touch technology for fluid response. You can fully utilise the new capabilities of touch-based applications and bring your older applications to life. Touch-type with 10 fingers or play exciting interactive games with your friends. Collaborate with colleagues interactively at work or school environment and increase your productivity and efficiency.Monitor front surface meets IP65 for water and dust resistance
For less-than-perfect environments, you need a monitor that's designed to hold up to the splashes of water and dust that happen in the everyday world. Ingress Protection (IP) ratings defined in international standard IEC/EN 60529, are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies and moisture. This Philips display meets the international IP rating for water and dust resistance. It will hold up to the water splashes and dust that happen in the everyday world.Anti-glare coating (AG) for reducing the visual interference
Anti-Glare Coating, abbreviated AG, can reduce the glare of your touch monitor screen. This chemical process is made in the back of the touch glass, and therefore you don't need an additional film to have comfort in your eyes. Images are crystal clear with pure color and great clarity.LowBlue Mode for easy-on-the-eyes productivity
Studies have shown that just as ultra-violet rays can cause eye damage, shortwave-length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, the Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.SmartContrast for rich black details
SmartContrast is a Philips technology that analyses the contents you are displaying, automatically adjusting colours and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption.DisplayPort connection for maximum visuals
DisplayPort is a digital link from PC to monitor without any conversion. With higher capabilities than DVI standard, it is fully capable to support up to 15 metre cables and 10.8 Gbps/sec data transfer. With this high performance and zero latency, you get the fastest imaging and refresh rates — making DisplayPort the best choice for not only general office or home use, but also for the more demanding gaming and films, video editing and more. It also keeps interoperability in mind via the use of various adapters.HDMI ensures universal digital connectivity
An HDMI-ready device has all the required hardware to accept High-Definition Multimedia Interface (HDMI) input. An HDMI cable enables high-quality digital video and audio to be transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).Less eye fatigue with Flicker-Free technology
Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-Free technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.Description
A sturdy, water-resistant and dust-resistant, anti-glare touchscreen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts productivity.Specifications
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Mean time between failures (MTBF) | 70000 h |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Component video sync | Separate sync, Sync-on-green (SOG) |
| EasyRead mode | Yes |
| Display | |
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Flat |
| Dynamic contrast ratio marketing name | SmartContrast |
| Native aspect ratio | 5:4 |
| Pixel density | 96 ppi |
| DDC/CI | Yes |
| Colour gamut | 87% |
| Maximum refresh rate | 60 Hz |
| sRGB coverage (typical) | 103% |
| HD type | Full HD |
| Display technology | LCD |
| Contrast ratio (dynamic) | 50000000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 30 - 85 kHz |
| Vertical scan range | 48 - 75 Hz |
| Aspect ratio | 5:4 |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| Digital horizontal frequency | 30 - 85 kHz |
| Digital vertical frequency | 48 - 75 Hz |
| Backlight type | W-LED |
| Display resolution | 1280 x 1024 pixels |
| Response time | 1 ms |
| Display diagonal | 43.2 cm (17") |
| Contrast ratio (typical) | 1000:1 |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | TN |
| Display diagonal (metric) | 43.2 cm |
| Display sRGB | Yes |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Haze rate | 5% |
| Display brightness | 250 cd/m² |
| Colour gamut standard | sRGB |
| Management features | |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Plug and Play | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Design | |
| Heavy metals free | Hg (mercury) |
| Feet colour | Black |
| Certification | CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Mean time between failures (MTBF) | 70000 h |

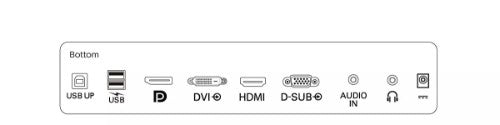

| Ports & interfaces | |
| Headphone out | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| PC Audio in | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 322 mm |
| Depth (without stand) | 45 mm |
| Width (without stand) | 376 mm |
| Mobile operating systems supported | Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4 |
| Feet colour | Black |
| Cable lock slot | Yes |
| Mean time between failures (MTBF) | 70000 h |
| Display viewable area (HxV) | 337.9 x 270.3 mm |
| Product colour | Black |
| Recommended resolution | 1280 x 1024 @ 60 Hz |
| Picture enhancement | SmartImage |
| Recyclable packaging material | 100% |
| Regulatory Approvals | CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS |
| Front bezel colour | Black |
| Sustainability certificates | ENERGY STAR, TCO |
| Doesn't contain | PVC/BFR, Mercury |
| Compliance certificates | RoHS, WEEE |
| Power supply type | External |
| Weight (with stand) | 6.24 kg |
| Folding angle | 70° |
| Touch method | Stylus, Finger, Glove |
| Surface hardness | 7H |
| EasyRead mode | Yes |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Bundled software | SmartControl |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| LED indicators | Operation, Stand-by |
| Tilt angle range | -5 - 90° |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Plug and Play | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Palm rejection area | 30 x 30 mm |
| Adjustable height (max) | 7.6 cm |
| Power | |
| Power supply type | External |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 9.14 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 7.7 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | D |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 393967 |
| Operational conditions | |
| Non-operating altitude | 0 - 12192 m |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Weight & dimensions | |
| Height (without stand) | 322 mm |
| Depth (without stand) | 45 mm |
| Width (without stand) | 376 mm |
| Width (with stand) | 376 mm |
| Depth (with stand) | 227 mm |
| Height (with stand) | 399 mm |
| Weight (with stand) | 6.24 kg |
| Weight (without stand) | 3.26 kg |
| Package width | 445 mm |
| Package depth | 159 mm |
| Package height | 420 mm |
| Package weight | 7.95 kg |
| Packaging data | |
| Package width | 445 mm |
| Package depth | 159 mm |
| Package height | 420 mm |
| Package weight | 7.95 kg |
| Stand included | Yes |
| Manual | Yes |
| Cables included | VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC |
| Bundled software | SmartControl |
| Packaging content | |
| Stand included | Yes |
| Manual | Yes |
| Cables included | VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC |
| Bundled software | SmartControl |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 393967 |
| Sustainability certificates | ENERGY STAR, TCO |
| Doesn't contain | PVC/BFR, Mercury |
| Indication | |
| LED indicators | Operation, Stand-by |
| Other features | |
| Heavy metals free | Hg (mercury) |
| Mobile operating systems supported | Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4 |
| Mean time between failures (MTBF) | 70000 h |
| Display viewable area (HxV) | 337.9 x 270.3 mm |
| Certification | CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS |
| Recommended resolution | 1280 x 1024 @ 60 Hz |
| Picture enhancement | SmartImage |
| Recyclable packaging material | 100% |
| Regulatory Approvals | CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS |
| Folding angle | 70° |
| Touch method | Stylus, Finger, Glove |
| EasyRead mode | Yes |
| International Protection (IP) code | IP65 |
| Compliance certificates | RoHS, WEEE |
| Height (without stand) | 322 mm |
| Depth (without stand) | 45 mm |
| Width (without stand) | 376 mm |
| Surface hardness | 7H |
| Energy efficiency scale | A to G |
| Power supply type | External |
| Manual | Yes |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
| Certificates | |
| Certification | CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
