StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows Only - TAA

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe to Serial DB9 Card, 16C1050 UART, 15kV ESD - Windows Only

Key Features

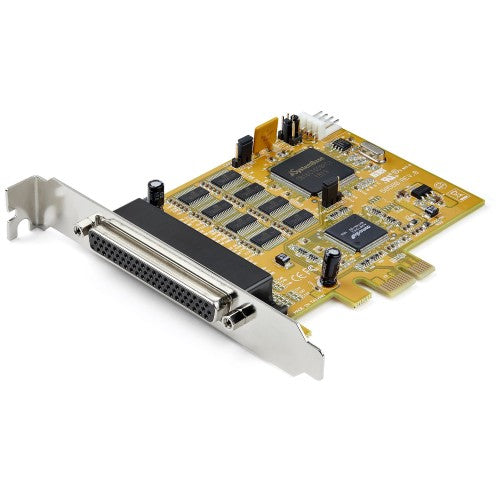

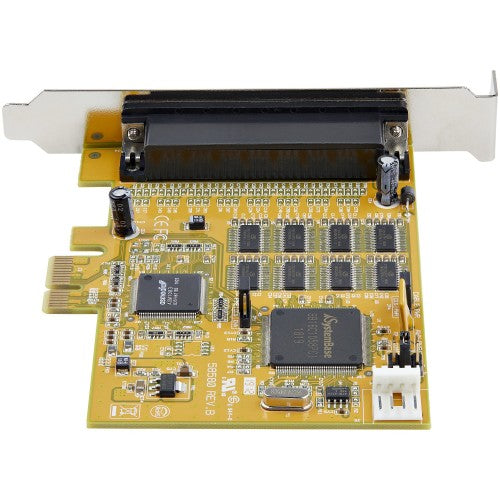

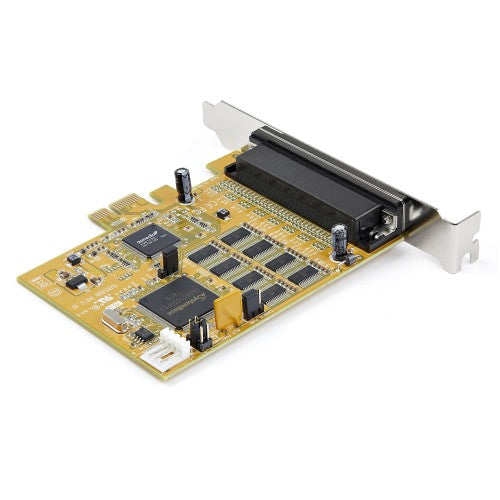

• 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer; Upgraded version of our popular card PEX8S952

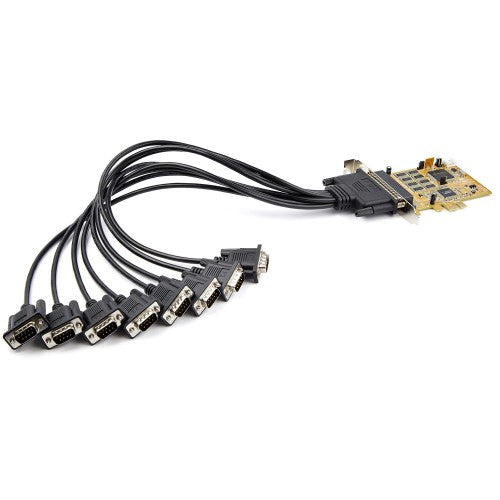

• OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 18"/48cm DB62 to 8x DB9 breakout cable incl; Hex nuts incl for opt screw/nut DB9 interface
• WINDOWS ONLY: Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Windows Server (2003 and up); For standard profile desktop/servers
• VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
• TECH SPECS: System Base SB16C1058PCI Chipset; 16C1050 UART compatible; 8x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; Supports Windows Only; None, Even, or Odd Parity Modes; 5/6/7/8 Data Bits; RS-232 Protocol; Standard Profile Bracket

Description

Add eight RS-232 capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card - Full Profile Serial Card

Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.

Connect your Peripherals with 8 Serial Ports

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.

Windows Only

This PCI Express card is only compatible with Windows and Windows server.

The StarTech.com Advantage

Specifications

Ports & interfaces
Internal	Yes
Output interface	Serial
Serial interface type	RS-232
Serial ports quantity	8
Host interface	PCIe
Technical details
Chipset	ASMedia - ASM1083, System Base - SB16C1058PCI
FIFO (First In, First Out)	256 B
Compliance certificates	RoHS
Performance
Maximum cable length	0.5 m
Stop bits	1, 1.5, 2
Data bits	5, 6, 7, 8
Baud rate	921.6 Kbit/s
Chipset	ASMedia - ASM1083, System Base - SB16C1058PCI
FIFO (First In, First Out)	256 B
Product colour	Yellow
Harmonized System (HS) code	84733020
Colour
Product colour	Yellow
Design
Mean time between failures (MTBF)	160013 h
Maximum cable length	0.5 m
Internal	Yes
Product colour	Yellow
Features
Stop bits	1, 1.5, 2
Data bits	5, 6, 7, 8
Baud rate	921.6 Kbit/s
Chipset	ASMedia - ASM1083, System Base - SB16C1058PCI
FIFO (First In, First Out)	256 B
Parity bit	Even, No, Odd
Flow Control type	RTS/CTS, XON/XOFF
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width	16 mm
Depth	105 mm
Height	120 mm
Weight	74 g
Package width	190 mm
Package depth	290 mm
Package height	65 mm
Package weight	672 g
Packaging data
Package width	190 mm
Package depth	290 mm
Package height	65 mm
Package weight	672 g
Cables included	Serial
Quick installation guide	Yes
Logistics data
Products per master (outer) case	14 pc(s)
Master (outer) case width	400 mm
Master (outer) case length	510 mm
Master (outer) case height	315 mm
Harmonized System (HS) code	84733020
Other features
Compliance industry standards	16C1050 UART
Chipset	ASMedia - ASM1083, System Base - SB16C1058PCI

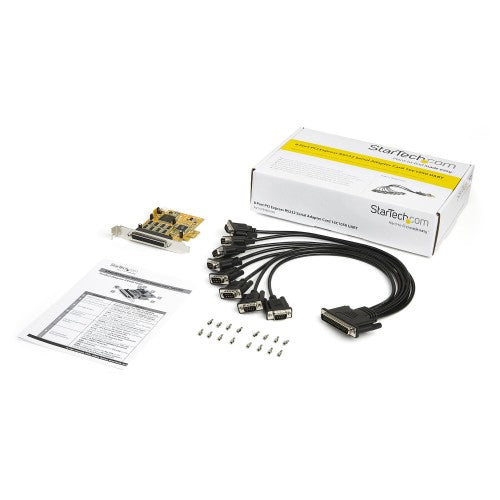

Packaging content
Cables included	Serial
Quick installation guide	Yes
