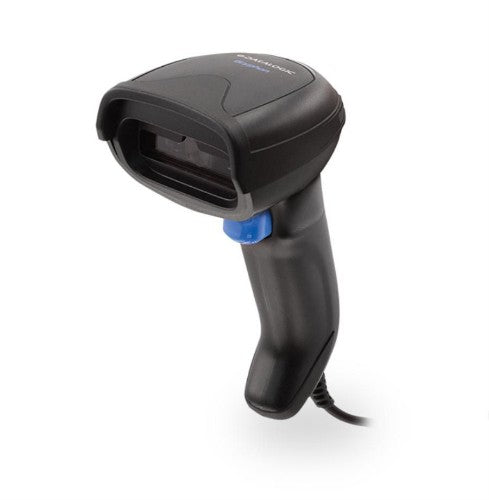

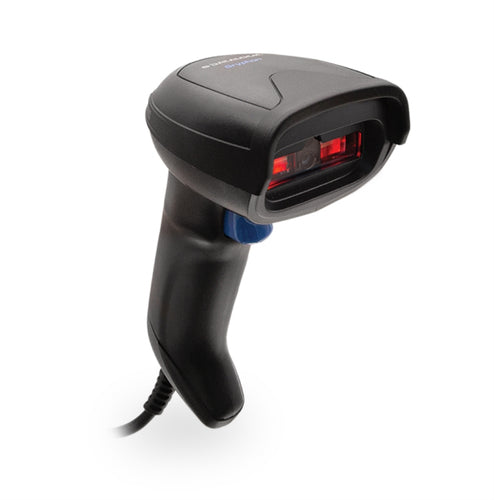

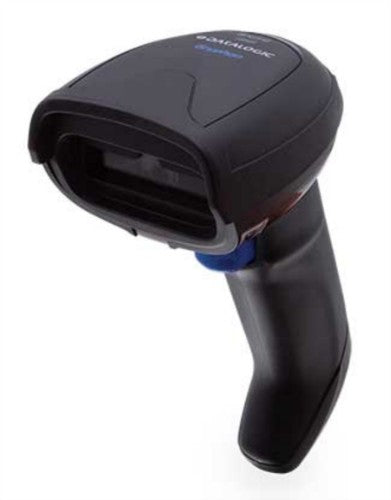

Datalogic Gryphon I GD4220 Handheld bar code reader 1D Linear Black

Gryphon I GD4220, Kit, Linear Imager, USB-only, Black (Kit includes Scanner and USB Cable

Key Features

• Enhanced linear imaging technology for superior scanning and Depth of Field
• Reads 1D high-density and low-resolution codes, hard-to-read, poor or damaged codes and bar codes from mobile devices
• Datalogic’s distinctive ‘soft line viewfinder’ to easily target the barcode to be read
• Datalogic’s ‘Green Spot’ technology and 3GL (3 Green Lights) for superior good-read feedback
• Motionix motion-sensing technology for seamless reading mode transitions
• Choice of Bluetooth wireless technology or Datalogic’s STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz)
• Wireless battery charging system
• Choice of WLC4190 sleek desk/wall cradle with USB Type C connectivity or WLC4090 adjustable position cradle with Scan-While-Charging capability
• Long lasting replaceable Lithium-Ion battery
• Multi-interface options: USB type C / USB only or multi-interface USB type C / USB /RS-232 / Keyboard Wedge multi-interface
• Disinfectant-Ready enclosures withstand daily cleaning with harsh disinfectant solutions
• EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Description

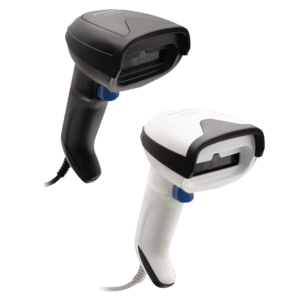

The Gryphon™ 4200 series represents the premium range of 1D hand held scanners from Datalogic for general purpose applications. Designed to provide the best-in-class reading performance, the Gryphon 4200 readers’ ability to capture bar codes from near to far, to read both high-density and low resolution codes, to decode hard-to-read, poorly printed or damaged codes and to easily read bar codes from mobile devices simplifies all applications. Ideal for hand held reading, the Gryphon 4200 utilizes Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the ‘ready-to-read’ scanning mode. Datalogic’s distinctive ‘soft line viewfinder’ helps the operator to easily target the code to be read, making it easier and faster to point, shoot and decode the proper label, reducing accidental reads in a multiple bar code situation. The Gryphon 4200 Series includes 3 models: a corded ‘Desk’ model (GD4200), a cordless model featuring Bluetooth® wireless technology (GBT4200) and a cordless model featuring Datalogic’s STAR Cordless System™ narrow band radio (GM4200).

Specifications

Scanning
Type	Handheld bar code reader
Linear (1D) barcodes supported	GS1 DataBar
2D (matrix & stacked) barcodes supported	Not supported
Yaw reading angle	0 - 65°
Tilt reading angle	0 - 45°
Sensor type	Linear
Scanner type	1D
Read rate (max)	400 reads/s
Pitch reading angle	0 - 65°
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	Keyboard wedge, RS-232, USB
Performance
Protection features	Electrostatic Discharge (ESD) protection
LED indicators	Yes
International Protection (IP) code	IP52
Product colour	Black
Ambient lighting	Yes
Print contrast	15%
Design
Type	Handheld bar code reader
Protection features	Electrostatic Discharge (ESD) protection
LED indicators	Yes
International Protection (IP) code	IP52
Product colour	Black
Power
Power source type	DC, USB
Input voltage	5 V
Weight & dimensions
Width	166 mm
Depth	68 mm
Height	109 mm
Weight	163 g
Technical details
Type	Handheld bar code reader
Protection features	Electrostatic Discharge (ESD) protection
LED indicators	Yes
International Protection (IP) code	IP52
Product colour	Black
Harmonized System (HS) code	84716070
Packaging data
Cables included	USB Type-C
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Packaging content
Cables included	USB Type-C
Logistics data
Harmonized System (HS) code	84716070
