Description
Key Features
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Full compliant with IEEE802.3af/at - RoHS Compliance
- WEEE Compliance
- Active
Description

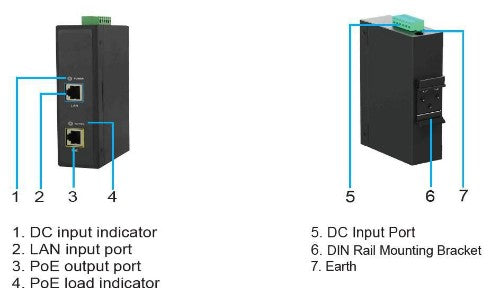

POEINJ-30W-IND is a single-port, industrial-scale, boost
PoE injector. It provides 55Vdc, 0.55A power for remote
PDs over 2 pairs output with 6KV (10/700us) surge protection.
It supports 10/100/1000 of data speed. It works for 30W
PoE PDs, such as wireless access points, network
cameras, VoIP phones and other high power Ethernet
terminals. Fully comply with IEEE802.3at and remains
compatible with any IEEE802.3af compliant devices.
POEINJ-30W-IND is designed for indoor use. It works with
input voltage of 12-48Vdc and operates under -40℃to 65℃.
It has detection chip inside, which will detect and classify PD
before powering it. It will not apply power until a standardcompliant
PD is detected. The effective distance is 100m
over Cat5e/Cat6 cables.
This model equipped standard DIN rail mounting bracket,
which can easily jam into the guide rail
Specifications
| Technical details | |
|---|---|
| Package width | 169 mm |
| Package height | 54 mm |
| Weight & dimensions | |
| Package weight | 530 g |
| Package depth | 143 mm |
| Package width | 169 mm |
| Package height | 54 mm |
| Weight | 380 g |
| Width | 65.8 mm |
| Depth | 33.5 mm |
| Height | 145.5 mm |
| Packaging data | |
| Package weight | 530 g |
| Package depth | 143 mm |
| Package width | 169 mm |
| Package height | 54 mm |
