Description
1920x1200, 60 Hz, KVMA, USB, RJ12, RJ45, SFP+, DisplayPort
Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance HD KVM extension, resulting in superior functionality and flexibility in a cost-effective, reliable and
straightforward solution.
Key Features
- Quad-head HD 60 video, USB2.0 (HID) and audio are transmitted on a single CATx or fiber cable
- Point-to-point protocol for ultra-low latency
- Flexibility between copper and fiber connectivity
- Adder’s USB emulation ensures reliable computer bootup
Description

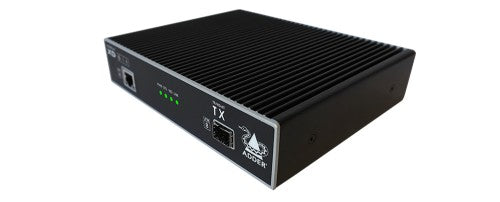

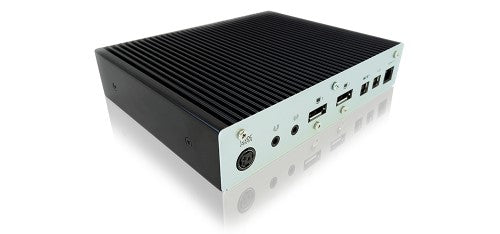

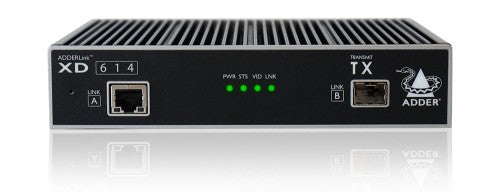

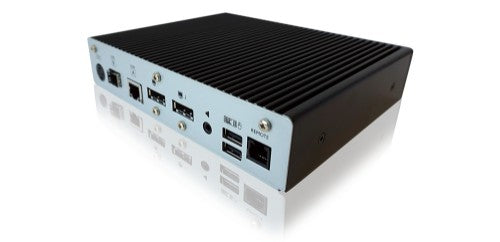

The ADDERLink XD614 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance HD KVM extension, resulting in superior functionality and flexibility in a cost-effective, reliable and
straightforward solution.
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 4000 m |
| Cable types supported | Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8.1, Fiber |
| Maximum digital resolution | 1920 x 1200 pixels |
| Product colour | Black |
| Material | Metal |
| Plug and Play | Yes |
| Certification | CE, FCC |
| Colour depth | 8 bit |
| USB 2.0 ports quantity | 6 |
| Supported resolutions | 4 heads at resolutions to a maximum of 1920x1200 60Hz |
| Transmitter | |
| Transmitter video port type | DisplayPort |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | DisplayPort |
| RJ-45 ports quantity (receiver) | 1 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 6 |
| RJ-45 ports quantity | 2 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| RJ-11 ports quantity | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| AC adapter output current | 12 A |
| Weight & dimensions | |
| Transmitter width | 18.6 cm |
| Transmitter depth | 14.8 cm |
| Transmitter height | 3.9 cm |
| Transmitter weight | 1.29 kg |
| Receiver width | 18.6 cm |
| Receiver depth | 14.8 cm |
| Receiver height | 3.9 cm |
| Receiver weight | 1.24 kg |
| Packaging content | |
| AC adapter included | Yes |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging data | |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
