Description
5 GHz, 28 dBm, Gigabit Ethernet, 19 dBi, IP67, 278 x 278 x 45 mm, 1.45 kg
For those places you couldn’t connect before, Bridge-in-a-Box will get you there today.
Key Features
- Uses 5 GHz unlicensed frequency band
- Up to 600 Mbps total throughput
- Range up to 8 kilometers (5 miles)
Description

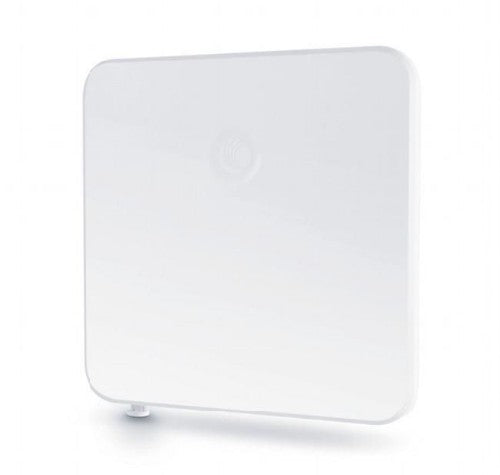

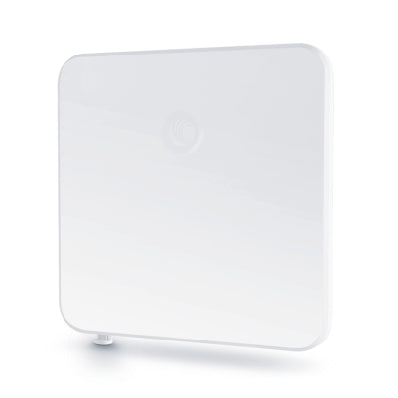

Each Bridge-in-a-Box comes with two wireless radio modules and power over Ethernet supplies that can be used to extend your network from wherever you have an Ethernet port to wherever you need one from 50 feet to 5 miles away (20 meters to 8 kilometers). The modules use the unlicensed 5 GHz frequency band and are extremely easy to deploy as they come pre-configured and pre-paired to connect.For those places you couldn’t connect before, Bridge-in-a-Box will get you there today.
Specifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 600 Mbit/s |
| Maximum transfer distance | 8000 m |
| Antenna | |
| Antenna gain level (max) | 19 dBi |
| Antenna design | Internal |
| Wireless LAN features | |
| Signal strength | 28 dBm |
| Receiver sensitivity | 20MHz Channel: MCS0 = -93 dBm to MCS15 = -72 dBm (per branch) 40MHz Channel: MCS0 = -90 dBm to MCS15 = -69 dBm (per branch) |
| Frequency band | 4910 – 5970 |
| Modulation | 256-QAM, BPSK |
| Channels quantity | 5 channels |
| Antenna gain level (max) | 19 dBi |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN interface type | Gigabit Ethernet |
| Frequency band | 4910 – 5970 |
| Channels quantity | 5 channels |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Security | |
| Security algorithms | 128-bit AES, HTTPS, WEP |
| Management features | |
| Management protocols | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™ |
| Supported protocols | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Features | |
| Product type | Network bridge |
| Product colour | White |
| Surge protection | Yes |
| Quality of Service (QoS) support | Yes |
| International Protection (IP) code | IP67 |
| Mounting type | Pole |
| Power | |
| Power consumption (max) | 15 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 12 W |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Technical details | |
| Product colour | White |
| Supported protocols | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Weight & dimensions | |
| Weight | 1.45 kg |
| Width | 278 mm |
| Depth | 45 mm |
| Height | 278 mm |
| Packaging content | |
| Mounting bracket(s) included | Yes |
| Packaging data | |
| Package type | Box |
