Description
USB-C Quattro Display Docking Station with Power Delivery 85 W
The station is compatible with any laptop equipped with a USB-C port (with video transmission support) or Thunderbolt 3. 6x USB ports, reliable and quick connection to your company network thanks to an integrated LAN port and support for installation on the back of a monitor make the docking station an ideal partner for professionals. And of course, the station is capable of charging your laptop or tablet with up to 85 W.
* Note: macOS does not support Multi Stream Transport (MST) technology, meaning that when connected to a device running macOS, two of the four connected monitors will display the same image.

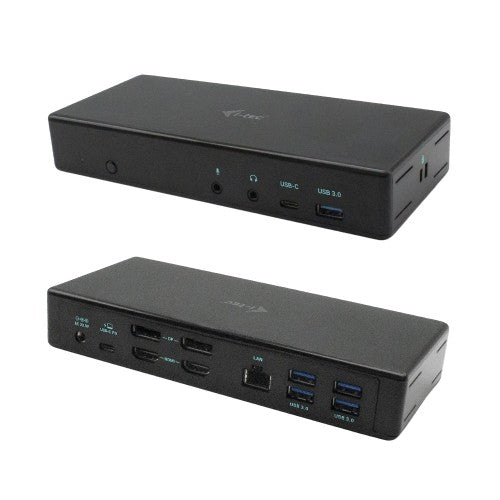

Key Features

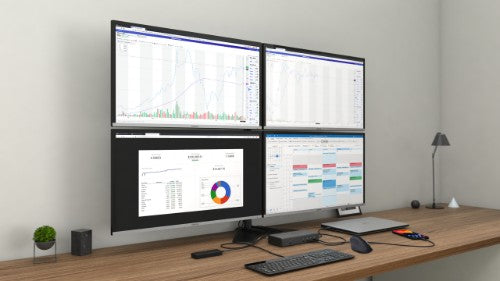

- Connect up to 4 external monitors
- Power delivery: up to 85 W
- Provides 2 DisplayPorts and 2 HDMI ports
- 5x USB 3.0 and 1x USB-C ports will allow you to easily connect your USB devices and peripherals
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connection supporting 10/100/1000 Mbps speeds
- 2x jack for audio and microphone
- Kensington lock protects against theft, particularly in shared offices or public spaces
- On/off switch for maximum energy savings

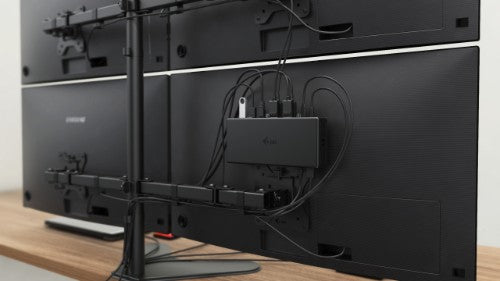

- The station features VESA support, allowing smart vertical installation on the back of a VESA compatible monitor
- Supports Windows 10, macOS, Android and Linux
Description
Professional USB-C docking station with support for up to four external monitors. The docking station is equipped with hybrid image processing: it is built on DisplayLink and USB-C video transmission technologies, allowing it to process images on four display devices at the same time.The station is compatible with any laptop equipped with a USB-C port (with video transmission support) or Thunderbolt 3. 6x USB ports, reliable and quick connection to your company network thanks to an integrated LAN port and support for installation on the back of a monitor make the docking station an ideal partner for professionals. And of course, the station is capable of charging your laptop or tablet with up to 85 W.
* Note: macOS does not support Multi Stream Transport (MST) technology, meaning that when connected to a device running macOS, two of the four connected monitors will display the same image.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 85 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 2560 x 1440 pixels |
| On/off switch | Yes |
| Product colour | Black |
| Card reader integrated | No |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Technical details | |
| Product colour | Black |
| Cable lock slot | Yes |
| Harmonized System (HS) code | 84733020 |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | AC |
| Compatible power plug types | UK |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 20 V |
| Output current | 6.75 A |
| Power cable length | 1.6 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Weight | 290 g |
| Width | 197 mm |
| Depth | 85 mm |
| Height | 34 mm |
| Package weight | 1.17 kg |
| Package width | 260 mm |
| Package depth | 215 mm |
| Package height | 48 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Cable lock slot type | Kensington |
| Packaging data | |
| Package weight | 1.17 kg |
| Package width | 260 mm |
| Package depth | 215 mm |
| Package height | 48 mm |

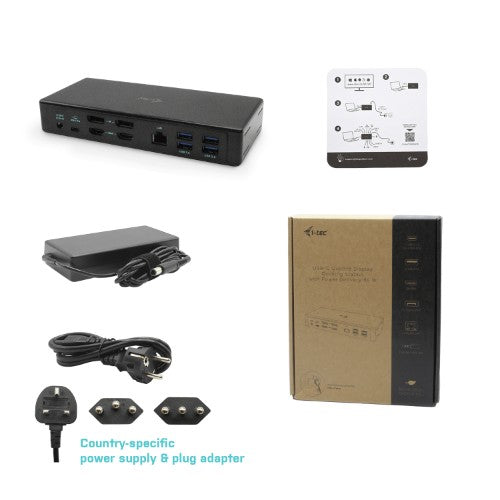

| Packaging content | |
| Manual | Yes |
| Cables included | USB Type-C |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
