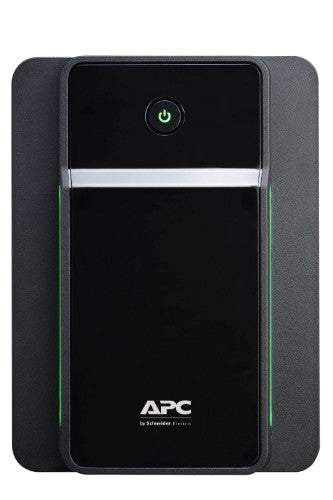

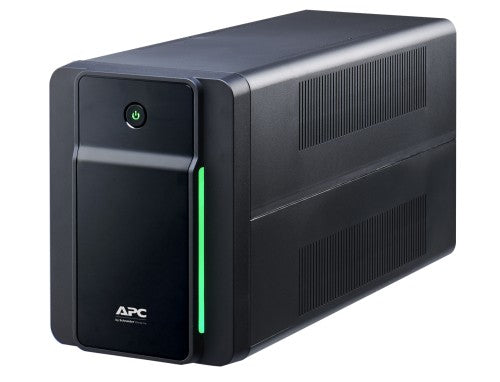

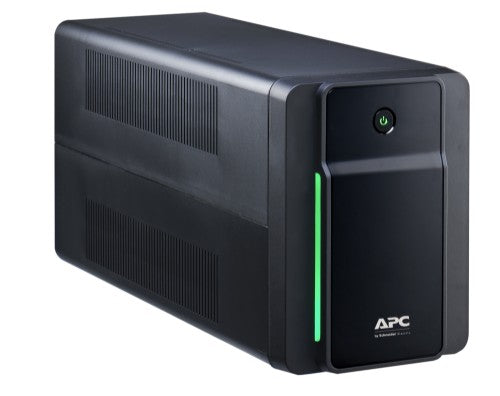

Back-UPS, 2200VA, Tower, 230V, 6x IEC C13 outlets, AVR
Description

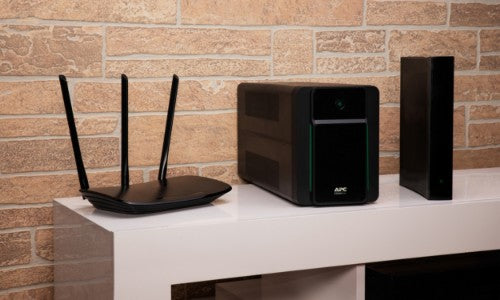

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 2200VA tower UPS has 6 total outlets, 4 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification.
Specifications
| Power |
|---|
| Output voltage regulation |
10% |
| Output frequency regulation |
0.5 Hz |
| Input power factor |
0.54 |
| Output power |
1200 W |
| Input operation voltage (min) |
140 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Surge energy rating |
273 J |
| Output power capacity |
2.2 kVA |
| Ports & interfaces |
|---|
| Cable length |
1.2 m |
| USB port |
Yes |

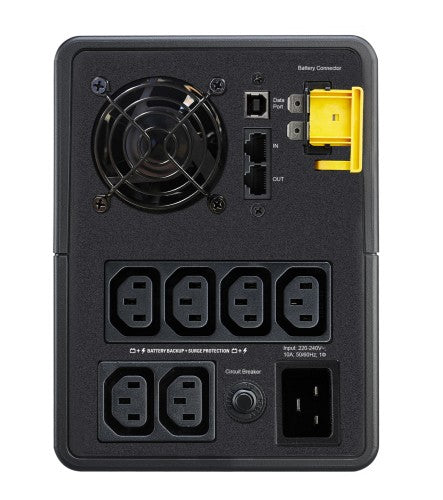

| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C19 coupler |
| USB 2.0 ports quantity |
1 |
| USB port type |
USB Type-B |
| Performance |
|---|
| Audible alarm modes |
Low battery alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Response time |
6 ms |
| LED indicators |
Yes |
| Surge protection |
Yes |
| Noise level |
40 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Audible alarm modes |
Low battery alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Output voltage regulation |
10% |
| Output frequency regulation |
0.5 Hz |
| Automatic Voltage Regulation (AVR) |
Yes |
| Input power factor |
0.54 |
| Response time |
6 ms |
| Output power |
1200 W |
| Input operation voltage (min) |
140 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Surge energy rating |
273 J |
| Surge protection |
Yes |
| Noise level |
40 dB |
| Audible alarm(s) |
Yes |
| Output power capacity |
2.2 kVA |
| Input frequency |
50/60 Hz |
| Battery |
|---|
| Battery life (max) |
2 year(s) |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
8 h |

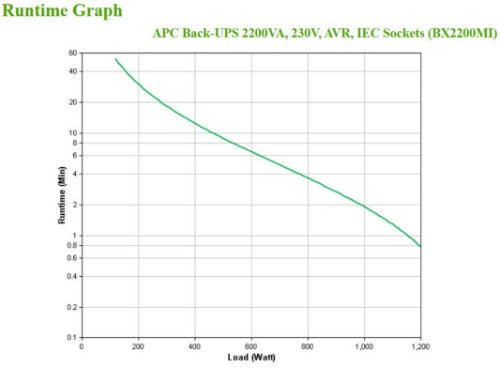

| Typical backup time at half load |
8.5 min |
| Typical backup time at full load |
1 min |
| Design |
|---|
| International Protection (IP) code |
IP20 |
| Form factor |
Compact |
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2 |
| Cable length |
1.2 m |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Harmonized System (HS) code |
85078000 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Package width |
235 mm |
| Package depth |
495 mm |
| Package height |
297 mm |
| Weight |
12.3 kg |
| Width |
140 mm |
| Package weight |
13.3 kg |
| Height |
190 mm |
| Depth |
390 mm |
| Packaging data |
|---|
| Cables included |
Input power cable |
| Manual |
Yes |
| Package width |
235 mm |
| Package depth |
495 mm |
| Package height |
297 mm |
| Package weight |
13.3 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Certificates |
|---|
| Certification |
CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2 |
| Packaging content |
|---|
| Cables included |
Input power cable |
| Manual |
Yes |
