(1) 10/100/1000 Ethernet Port, (1) 10/100 Ethernet Port, 1.2+ Gbps, 128-bit AES, airOS F, SISO/MIMO
Key Features
- Full duplex Point-to-Point radio
- 11 GHz frequency operation
- Up to 1.2+ Gbps throughput
- Proprietary INVICTUS™ processor
- Integrates with airFiber® 11 GHz antennas
- Utilizes distinct Rx and Tx frequencies
- Accepts PoE or DC power
- Secure 128-bit AES encryption
Description

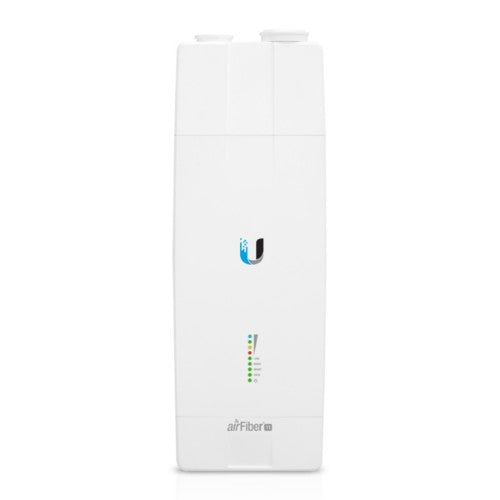

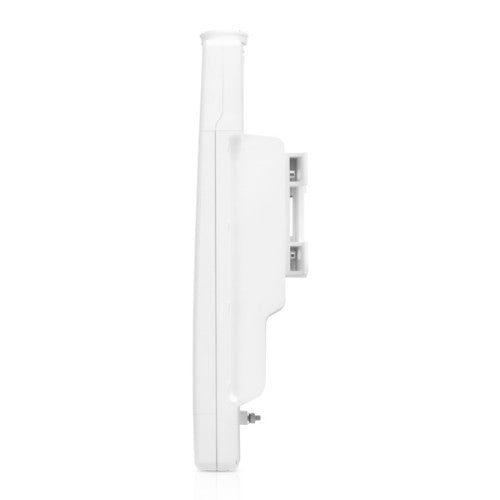

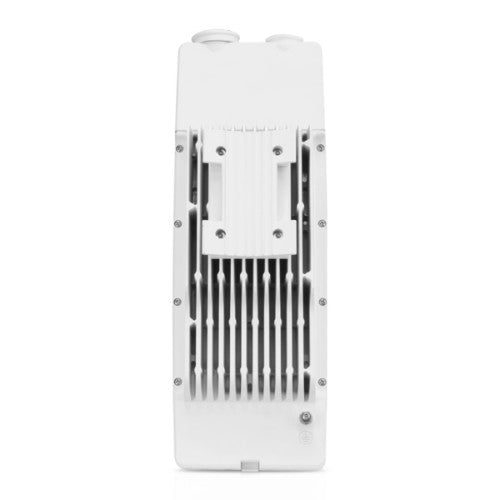

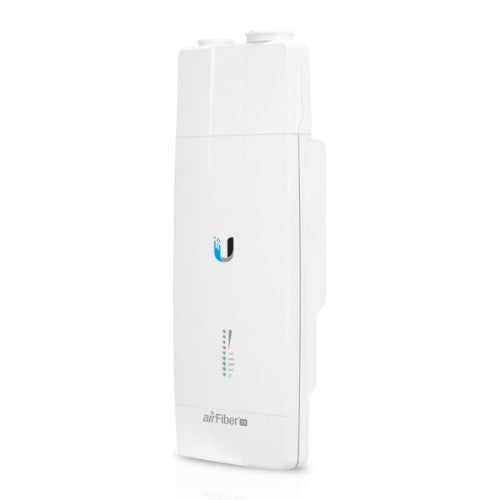

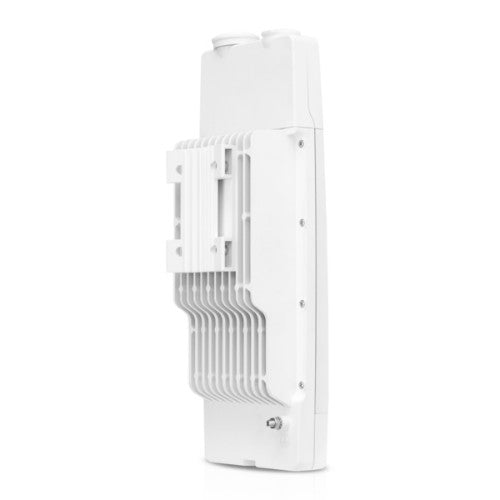

Breaking free from the congested 5 GHz band, airFiber® 11 is the first modular airFiber radio system purpose-built for the 11 GHz licensed frequency market. Housed in a compact, highly efficient form factor, airFiber 11 delivers amazing wireless gigabit+ performance, low latency, and long range, making it ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.
Specifications
| Data transmission |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| Wireless LAN features |
|---|
| Wi-Fi |
Yes |
| Wi-Fi band |
Single-band (5 GHz) |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |

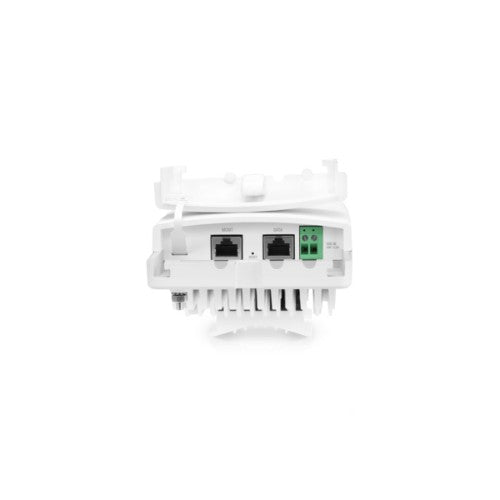

| Ethernet LAN (RJ-45) ports |
2 |
| Security |
|---|
| Security algorithms |
128-bit AES |
| Features |
|---|
| Product type |
Network bridge |
| Product colour |
White |
| Processor model |
INVICTUS 2 IC |
| LED indicators |
Yes |
| Power |
|---|
| Power source type |
DC, PoE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 50 °C |
| Management features |
|---|
| LED indicators |
Yes |
| Certificates |
|---|
| Certification |
FCC Part 101, ETSI EN 302 217 |
| Technical details |
|---|
| Product colour |
White |
| Harmonized System (HS) code |
85176990 |
| Weight & dimensions |
|---|
| Weight |
2.26 kg |
| Width |
112 mm |
| Depth |
86 mm |
| Height |
327 mm |
| Processor |
|---|
| Processor model |
INVICTUS 2 IC |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
