Description
1/2.9" CMOS, 1920x1080px, 2MP, 45 fps, 20m IR, 11.8W
Key Features
- Built-in cybersecurity features; Complies with EN50155 and EN45545-2; IR illumination and EIS; Lightfinder and Forensic WDR; Low latency mode
Description

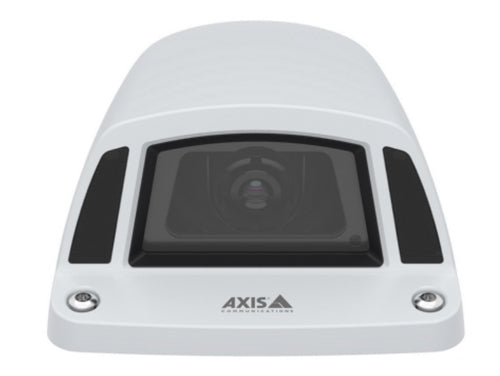

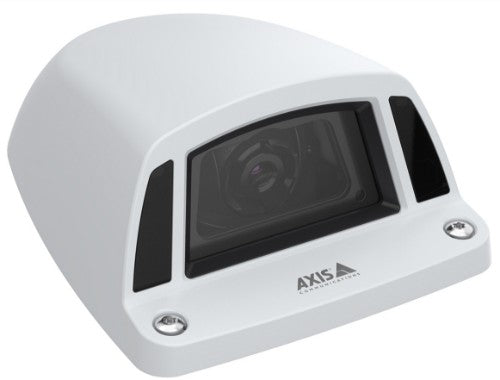

AXIS P3925-LRE specially designed for side view monitoring on buses, trains, and transportation vehicles. It can also be used for identifying maintenance needs on rolling stock, for example, wear and tear of pantograph collector strips. This robust and compact camera features a tempered glass window and complies with transport industry standards and IK10+, IP66, IP67, and IP6K9K. It delivers HDTV 1080p with Lightfinder for color images in poor light and Forensic WDR for maximal forensic usability in mixed light conditions. Plus, built-in IR Illumination enables monitoring in complete darkness. Furthermore, it supports exchangeable lenses for full flexibility.Specifications
| Performance | |
|---|---|
| Preset points | Yes |
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| PTZ modes | Digital PTZ |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.06 (E approval), EN 50498, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, EN 45545–2, UN ECE R118, IS 13252, IEC 62471, IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, ISO 20653 IP6K9K, IEC/EN 62262 IK10+, IEC 60721-3-5 Class 5M3 (vibration and shock), EN 50155:2017 OT2/ST2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, NIST SP500-267 |
| Design | |
| IK code | IK10+ |
| Fog proof | Yes |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Tempered glass |
| Camera | |
| Minimum illumination | 0.02 lx |
| Tilt angle range | 0 - 50° |
| Pan range | -20 - 20° |
| Angle of rotation | 350° |
| Camera shutter speed | 1/33500 - 2 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 56° |
| Lens viewing angle, vertical | 30° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| Infra-red wavelength | 850 nm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 160 x 120, 160 x 90, 1280 x 960, 1920 x 1080 (HD 1080) |
| Supported video modes | 720p |
| Frame rate | 45 fps |
| Video streaming | Yes |
| Total megapixels | 2 MP |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1, Syslog |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Security algorithms | 802.1x RADIUS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 11.8 W |
| Power consumption (typical) | 6.3 W |
| Certificates | |
| Certification | 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.06 (E approval), EN 50498, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, EN 45545–2, UN ECE R118, IS 13252, IEC 62471, IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, ISO 20653 IP6K9K, IEC/EN 62262 IK10+, IEC 60721-3-5 Class 5M3 (vibration and shock), EN 50155:2017 OT2/ST2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, NIST SP500-267 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 116 mm |
| Height | 63 mm |
| Weight | 780 g |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Technical details | |
| Doesn't contain | PVC |
| Other features | |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
