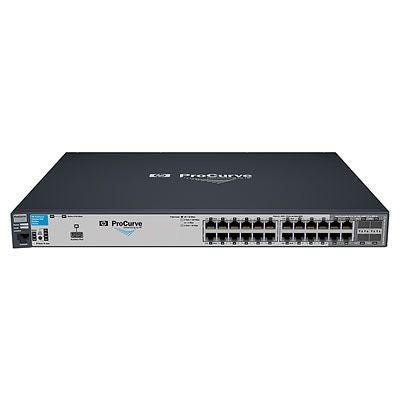

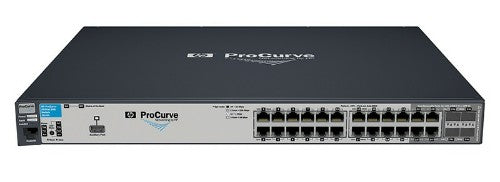

ProCurve 2910al-24G Switch, Refurbished
Description
The ProCurve 2910 al Switch Series consists of four switches: the ProCurve 2910-24G al and 2910-24G-PoE+ al Switches with 24 10/100/1000 ports, and the ProCurve 2910-48G al and 2910-48G-PoE+ al Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or mini-GBIC connectivity. In addition, the 2910 al Switch Series supports up to four optional 10 Gigabit Ethernet (CX4 and/or SFP+) ports, thereby offering the most flexible and easy-to-deploy uplinks in its class. Together with static and RIP IPv4 routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the 2910 series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at enterprise edge and remote branch offices, converged networks, and data center top of rack.
Specifications
| Management features |
|---|
| Multicast support |
Yes |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L3 |
| Ports & interfaces |
|---|
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Console port |
RJ-45 |
| Network |
|---|
| IGMP snooping |
Yes |
| Auto-sensing |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Routing entries |
2000 |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| IP routing |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
Yes |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Performance |
|---|
| Packet buffer memory |
6 MB |
| Stackable |
Yes |
| Processor frequency |
515 MHz |
| Memory type |
SDRAM |
| Internal memory |
512 MB |
| Flash memory |
4 MB |
| Built-in processor |
Yes |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Grey |
| Stackable |
Yes |
| Processor frequency |
515 MHz |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Data transmission |
|---|
| Throughput |
95 Mpps |
| Latency (1 Gbps) |
2.9 µs |
| Latency (10 Gbps) |
1.3 µs |
| Packet buffer memory |
6 MB |
| MAC address table |
16000 entries |
| Switching capacity |
128 Gbit/s |
| Jumbo frames support |
Yes |
| Security |
|---|
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP server |
| Multicast features |
|---|
| Multicast support |
Yes |
| Memory |
|---|
| Packet buffer memory |
6 MB |
| Memory type |
SDRAM |
| Internal memory |
512 MB |
| Flash memory |
4 MB |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Grey |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
82 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
15 - 95% |
| Operating temperature (T-T) |
0 - 55 °C |
| Operating relative humidity (H-H) |
15 - 95% |
| Heat dissipation |
279 BTU/h |
| Weight & dimensions |
|---|
| Width |
442 mm |
| Depth |
365.8 mm |
| Height |
43.9 mm |
| Weight |
4.95 kg |
