Description

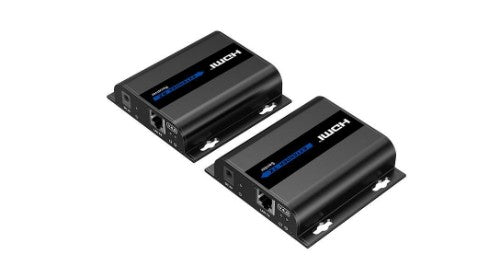

HDMI over IP 120m 1:253 + IR, Receiver
VLHDMIEXT1-RV2 is a receiver part for VLHDMIEXT1-TV2
It can extend video/audio/IR with a resolution of 1080P@60 Hz up to 120 meters via single network cable (Cat 5e/6)

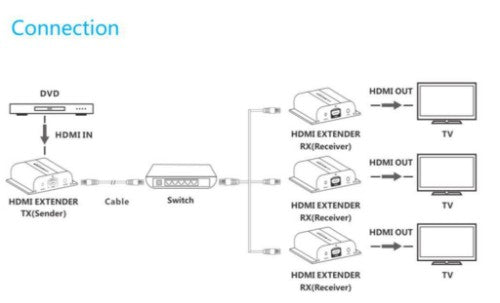

Up to 253 receivers can be connected to one transmitter using Gbit switch. One receiver will occupy 18Mbit bandwith.
Note that this product is not compatible with HDBaseT receivers
Typical installation:
It can be installed anywhere to extend HDMI signal up to 120m including AV/IR control signals
E.g. Private installation, Info screens in Shops or offices
Function:
HDMI extender
Point to point,Tx to Rx for 120m 1080P@60Hz
Signal can be spitted with a GBit Switch to several receivers
One receiver device only occupy 18M bandwidth.
Key features:
Super cost-effective HDMI extender over IP network

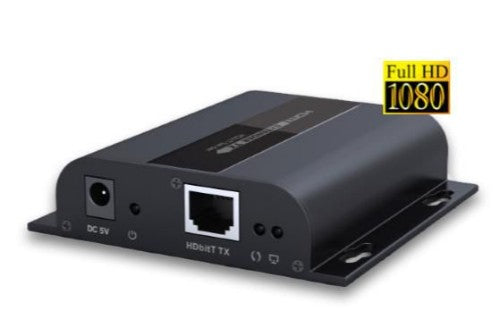

TX: 192.168.1.210

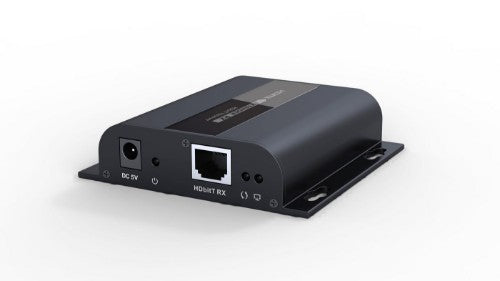

RX: 192.168.1.220
Key Features
- Supports Full HD resolution 1080P@60 Hz
- Maximum transmission distance 120m
- Supports IR control (IR receiver and transmitter included)
Description
Receiver unit with IR receiver Max resolution 1080P@60hzVLHDMIEXT1-RV2 is a receiver part for VLHDMIEXT1-TV2
It can extend video/audio/IR with a resolution of 1080P@60 Hz up to 120 meters via single network cable (Cat 5e/6)
Up to 253 receivers can be connected to one transmitter using Gbit switch. One receiver will occupy 18Mbit bandwith.
Note that this product is not compatible with HDBaseT receivers
Typical installation:
It can be installed anywhere to extend HDMI signal up to 120m including AV/IR control signals
E.g. Private installation, Info screens in Shops or offices
Function:
HDMI extender
Point to point,Tx to Rx for 120m 1080P@60Hz
Signal can be spitted with a GBit Switch to several receivers
One receiver device only occupy 18M bandwidth.
Key features:
Super cost-effective HDMI extender over IP network
TX: 192.168.1.210
RX: 192.168.1.220
Specifications
| Features | |
|---|---|
| HDCP | Yes |
| Wall mountable | Yes |
| IR pass-through | Yes |
| HDCP & EDID bypass | Yes |
| Maximum refresh rate | 60 Hz |
| Remote control type | IR |
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 120 m |
| Supported video modes | 1080p |
| LED indicators | Yes |
| Bandwidth | 0.018 Gbit/s |
| Product colour | Black |
| HDCP pass-through | Yes |
| HDCP version | 1.4 |
| Infrared (IR) frequency range | 20 - 60 kHz |
| Technical details | |
| HDCP | Yes |
| Wall mountable | Yes |
| IR pass-through | Yes |
| HDCP & EDID bypass | Yes |
| Maximum refresh rate | 60 Hz |
| Remote control type | IR |
| Ethernet LAN | Yes |
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 120 m |
| Video out | 1 |
| Video in | 1 |
| Supported video modes | 1080p |
| Bandwidth | 0.018 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Audio support | Yes |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |

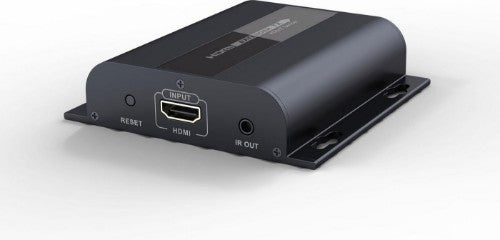

| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| Video out | 1 |
| Video in | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Power | |
| Power consumption (transmitter) (max) | 3 W |
| Power consumption (receiver) (max) | 3 W |
| Output current | 1 A |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| External power adapter | Yes |
| Power source type | DC |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
| Width | 96.8 mm |
| Package depth | 119 mm |
| Height | 23.7 mm |
| Depth | 94 mm |
| Package width | 153 mm |
| Package height | 80 mm |
| Weight | 318 g |
| Package weight | 320 g |
| Packaging data | |
| Package depth | 119 mm |
| Package width | 153 mm |
| Package height | 80 mm |
| Package weight | 320 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| IR receiver included | Yes |
| AC adapter included | Yes |
| Included power plug types | EU |
