Description
Receiver for VLHDMIMAT4X444
It supports audio de-embedded and ARC.

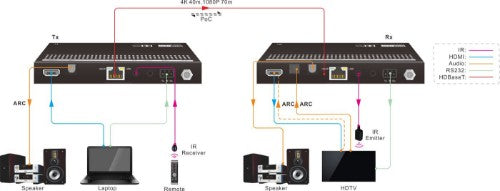

It also supports bidirectional IR and RS232 pass-through to control source or display device remotely. PoC feature allows the transmitter and the receiver can be powered from each other and only one power adapter is needed in system.
Key Features
- Supports HDMI 2.0 and the HDMI video resolution up to 4K@60Hz 4:4:4 HDR
- Extends 4K signals to distances up to 131 feet (40 meters) and 1080P signals to distances up to 230 feet (70 meters) over a single CATx cable
- Supports video resolution up-scaling, the 1080P input can be automatically upgraded to 4K output
- SPDIF out on receiver for source audio de-embedding
- 18Gbps high bandwidth
- Bidirectional IR, RS232 and 24V PoC
- Supports ARC
- Supports CEC pass-through
- Provides LEDs to indicate the current operating status
- Firmware upgrade by Micro-USB port
Description

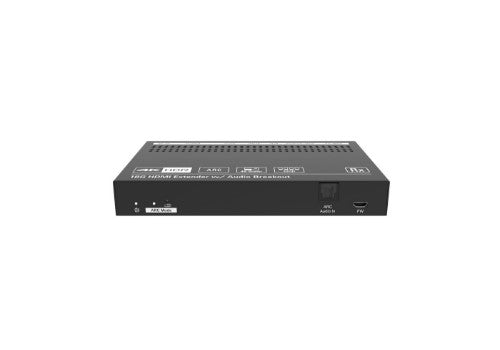

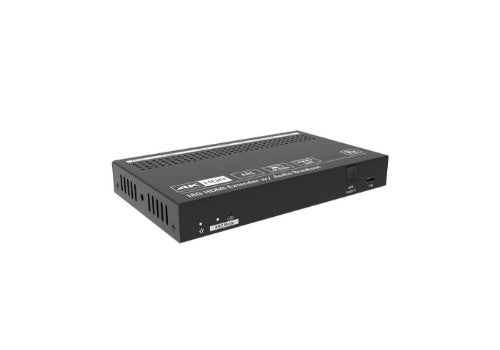

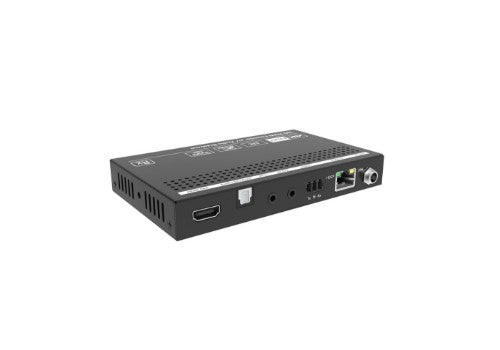

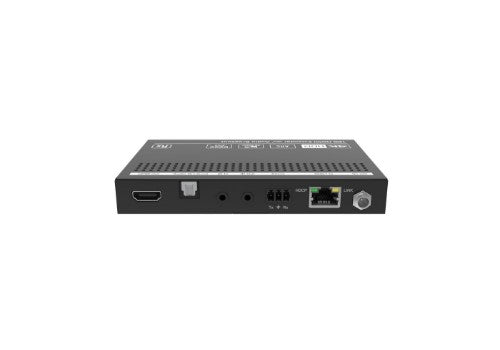

VLHDMIMAT4X444-R HDMI 2.0 receiver which is designed to receive 4K video from transmitter at distance up to 131 feet (40 meters) and 1080P video at distances up to 230 feet (70 meters) over a single CATx cable.It supports audio de-embedded and ARC.
It also supports bidirectional IR and RS232 pass-through to control source or display device remotely. PoC feature allows the transmitter and the receiver can be powered from each other and only one power adapter is needed in system.
Specifications
| Features | |
|---|---|
| HDCP | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| Signal-to-Noise Ratio (SNR) | 85 dB |
| HDBaseT certified | Yes |
| Audio formats supported | PCM |
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 70 m |
| LED indicators | Yes |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| CEC pass-through | Yes |
| Bidirectional | Yes |
| HDCP version | 1.4/2.2 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Technical details | |
| HDCP | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| Signal-to-Noise Ratio (SNR) | 85 dB |
| HDBaseT certified | Yes |
| Ethernet LAN | Yes |
| Audio formats supported | PCM |
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 70 m |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| HDBaseT port | Yes |
| USB ports quantity | 1 |
| RS-232 input ports | 1 |
| USB version | 2.0 |
| USB connector type | Micro-USB |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.0 |
| Audio output | 1 |
| Audio input | 1 |
| Audio (L/R) out | 4 |
| Connectivity technology | Wired |
| Digital audio optical input type | TOSLINK |
| Digital audio optical in | 1 |
| Digital audio optical out | 1 |
| Power | |
| Power consumption (receiver) (max) | 12 W |
| Output current | 1.25 A |
| Operating voltage (receiver) | 24 V |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 55 °C |
| Weight & dimensions | |
| Width | 140 mm |
| Height | 19.5 mm |
| Depth | 84 mm |
| Weight | 400 g |
| Package weight | 610 g |
| Packaging data | |
| Package weight | 610 g |
| Quantity per pack | 1 pc(s) |
