Gigabit PoE to USB-C Converter 25W
Key Features
- Designed with PVP, OCP, SCP
- Designed for Computers, iPads, MacBook, Google Wifi etc.
- Material : Black Metal
- Active
Description

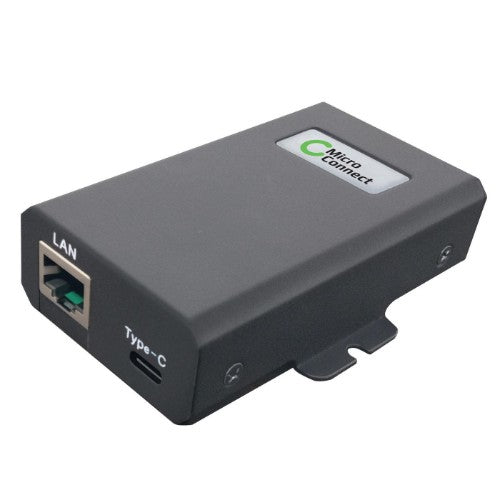

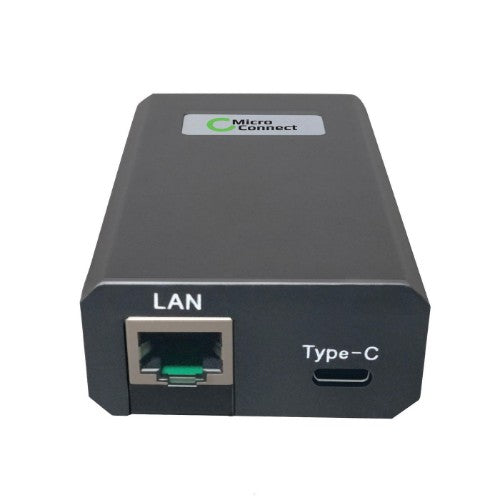

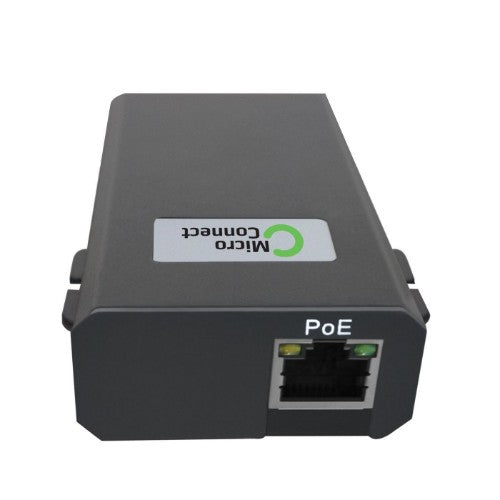

POEINJ-25W-USBC is an indoor PoE rated networking converter, special convert power&data from PoE to Type-C devices. It is with 1 PoE port for 802.3bt standard input and 1 Type-C port for power output and 1 RJ45 port for data output. The dataspeed is 10/100/1000Mbps (Gigabit).This converter ouput total 25W for Type-C PDs, and the voltage output from 5V-20V base on the required of your Type-C PDs. It is designed with OVP,OCP, SCP, then worked safty for the Type-C PDs, such as computers, IPad, Macbook, Google Wifi etc.
Specifications
| Network |
|---|
| Networking standards |
IEEE 802.3 |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Cable types supported |
Cat5 |
| Features |
|---|
| Wall mountable |
Yes |
| Easy to install |
Yes |
| Plug and Play |
Yes |
| Surge protection |
Yes |
| Maximum operating distance |
100 m |
| Product colour |
Black |
| Networking standards |
IEEE 802.3 |
| Rack mounting |
Yes |
| Power protection features |
Over current |
| Country of origin |
China |
| LED indicators |
Yes |
| Certification |
CE, FCC, UL & RoHS |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| Other connection |
USB Type C |
| Power |
|---|
| Output power |
25 W |
| Output current |
3 A |
| Total Power over Ethernet (PoE) budget |
25 W |
| AC adapter input voltage |
100 - 240 V |
| Power plug type |
Type F |
| Technical details |
|---|
| Number of products included |
1 pc(s) |
| Package width |
160 mm |
| Package height |
180 mm |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Other connection |
USB Type C |
| Harmonized System (HS) code |
85044090 |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Weight & dimensions |
|---|
| Package weight |
530 g |
| Package depth |
50 mm |
| Package width |
160 mm |
| Package height |
180 mm |
| Weight |
380 g |
| Packaging data |
|---|
| Package weight |
530 g |
| Package depth |
50 mm |
| Package width |
160 mm |
| Package height |
180 mm |
| Packaging content |
|---|
| Number of products included |
1 pc(s) |
| Certificates |
|---|
| Certification |
CE, FCC, UL & RoHS |
| Indication |
|---|
| LED indicators |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85044090 |
