Description

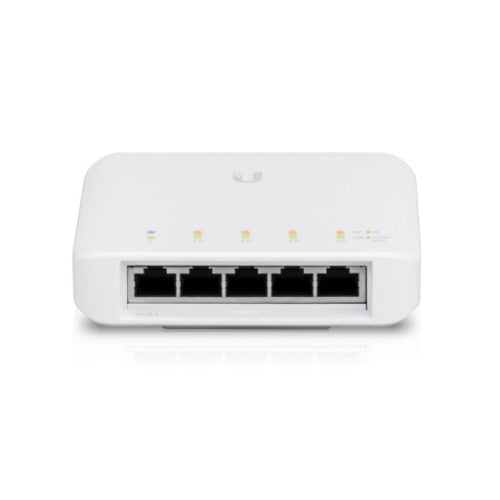

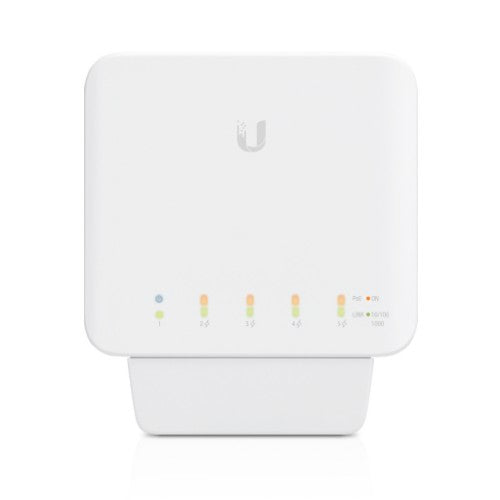

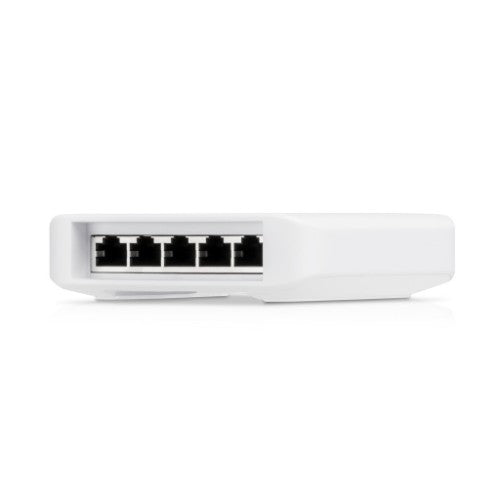

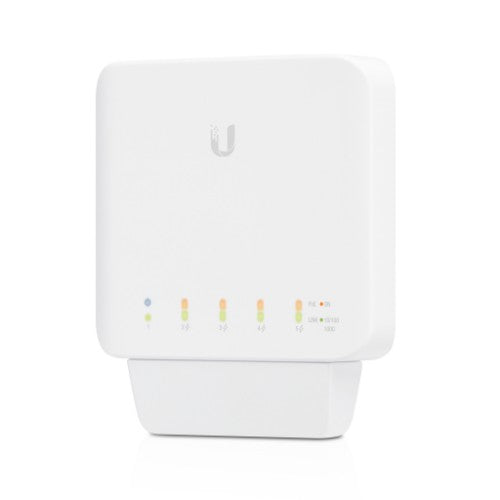

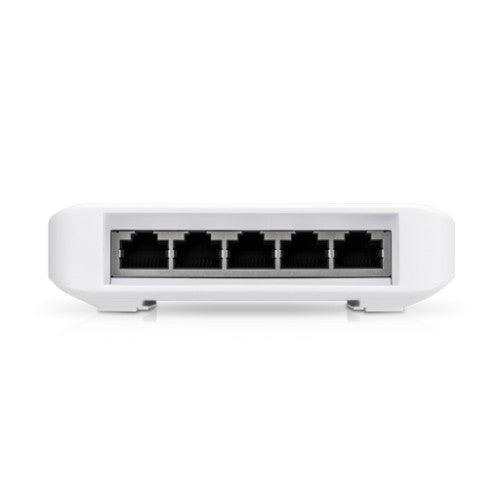

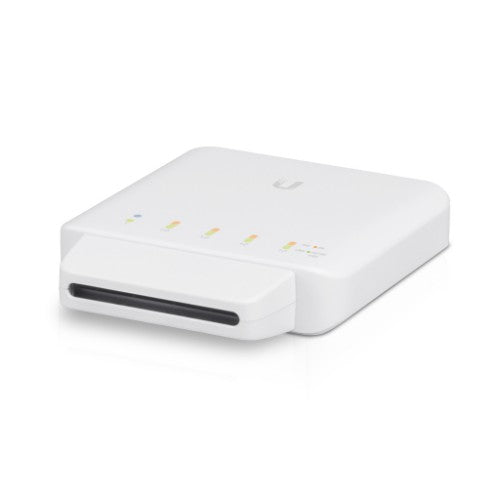

Managed, L2, 5x Gigabit Ethernet, PoE, 122.5 x 107.1 x 28 mm, White, 3-pack
The USW-Flex supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.
Versatile Mounting

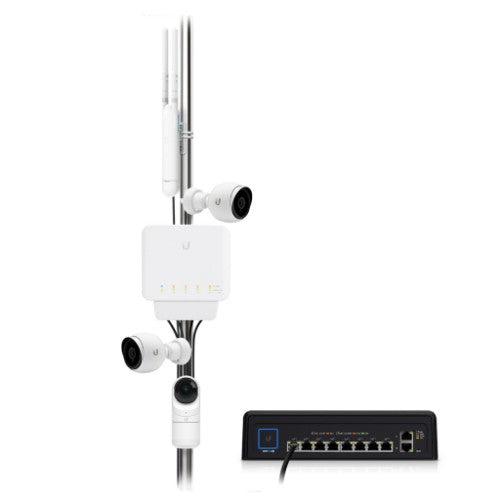

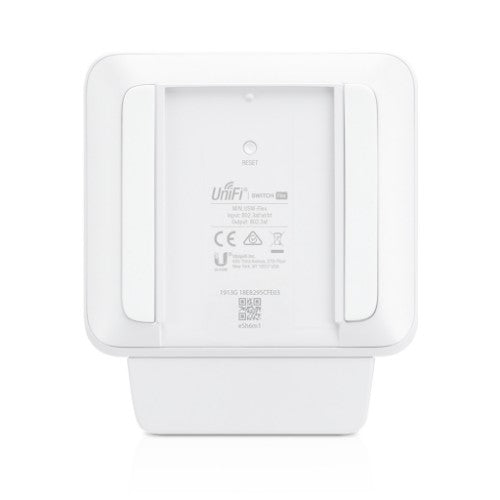

The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.
Indoor/Outdoor Design
The USW-Flex is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations
Compatible Products
The USW-Flex powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial switch, which provides 60W of 802.3bt PoE++.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Description
PoE FlexibilityThe USW-Flex supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.
Versatile Mounting
The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.
Indoor/Outdoor Design
The USW-Flex is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations
Compatible Products
The USW-Flex powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial switch, which provides 60W of 802.3bt PoE++.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Specifications
| Virtual LAN features | |
|---|---|
| VLAN support | Yes |
| Technical details | |
| Product colour | White |
| Firmware upgradeable | Yes |
| Rack mounting | No |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Full duplex | Yes |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Jumbo frames support | Yes |
| Certificates | |
| Certification | CE, FCC, IC |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP55 |
| Product colour | White |
| LED indicators | Activity, Link, PoE, Status |
| Certification | CE, FCC, IC |
| Rack mounting | No |
| Performance | |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Activity, Link, PoE, Status |
| Power | |
| Power consumption (max) | 5 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 46 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 57 V |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 122.5 mm |
| Depth | 107.1 mm |
| Height | 28 mm |
| Weight | 230 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
