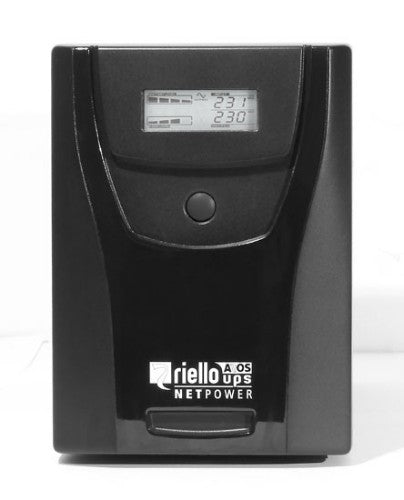

Riello NPW 2000 uninterruptible power supply (UPS) 2 kVA 1200 W 6 AC outlet(s)

2000 VA, 1200 W,220-240 Vac, 50/60 Hz, USB, RS232, 11.5 kg

Description

The NetPower series includes the 600-2000VA models and uses digital Line Interactive (VI) technology.
The load is powered from the mains through an AVR to stabilise brownout, sag and surge voltages, and EMI filters to suppress spikes and transients. When the mains fails, the load is powered by the inverter with a pseudo sinewave to provide sufficient runtime for computer system shutdown using the PowerShield.

- mains power supply stabilisation and filtering (Line Interactive (VI) technology with AVR and filters for atmospheric disturbance suppression).
- cold start capability: the UPS can power up without a mains supply present.
- high reliability with built-in battery test feature.
- supplied with 2 output cables.
- USB port.

Specifications

Power
Output frequency regulation	50 - 60 Hz
Output power	1200 W
Input operation voltage (min)	170 V
Input operation voltage (max)	276 V
Output operation voltage (min)	211 V
Output operation voltage (max)	253 V
Output power capacity	2 kVA
Performance
Waveform	Sine
Features
Waveform	Sine
Output frequency regulation	50 - 60 Hz
Output power	1200 W
Input operation voltage (min)	170 V
Input operation voltage (max)	276 V
Output operation voltage (min)	211 V
Output operation voltage (max)	253 V
Output power capacity	2 kVA
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
RS-232 ports	1
Battery
Number of batteries supported	1
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Typical backup time at half load	20 min
Typical backup time at full load	9 min
Design
Form factor	Compact
Product colour	Grey
Certification	EN 62040-1-1 2006/95/EC; EN 62040-2 C2 2004/108 EC CE
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 6000 m
Weight & dimensions
Package width	230 mm
Package depth	480 mm
Package height	280 mm
Weight	11.5 kg
Width	146 mm
Package weight	14 kg
Height	205 mm
Depth	397 mm
Packaging data
Package width	230 mm
Package depth	480 mm
Package height	280 mm
Package weight	14 kg
Certificates
Certification	EN 62040-1-1 2006/95/EC; EN 62040-2 C2 2004/108 EC CE
