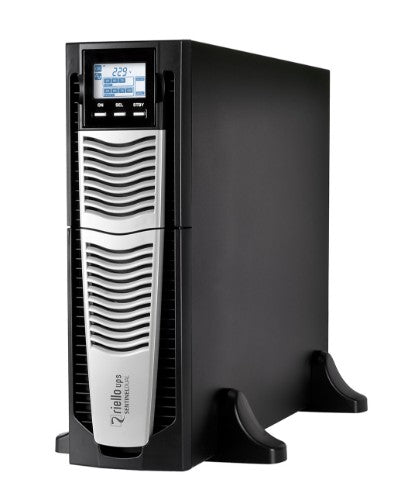

Riello Sentinel Dual, Double-conversion (Online), 4 kVA, 3600 W, Sine, 220 V, 240 V
Description
Riello Sentinel Dual. UPS topology: Double-conversion (Online), Output power capacity: 4 kVA, Output power: 3600 W. AC outlet types: IEC 320, AC outlets quantity: 3 AC outlet(s), USB port type: USB Type-A. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 96 V, Battery recharge time: 4 h. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 3U. Compliance certificates: RoHS, Certification: European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility --...
Specifications
| Power |
|---|
| Input power factor |
0.98 |
| Output power |
3600 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Maximum current |
18.5 A |
| Efficiency |
95% |
| Emergency Power Off (EPO) |
Yes |
| Power factor |
0.98 |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Input current Total Harmonic Distortion (THD) |
1% |
| Crest factor |
3:1 |
| Output power capacity |
4 kVA |
| ECO mode |
Yes |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Surge protection |
Yes |
| Power protection features |
Battery discharge, Input fuse, Over current, Over voltage, Overdischarge, Overheating, Short circuit |
| Noise level |
48 dB |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Input power factor |
0.98 |
| Output power |
3600 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Maximum current |
18.5 A |
| Efficiency |
95% |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Power protection features |
Battery discharge, Input fuse, Over current, Over voltage, Overdischarge, Overheating, Short circuit |
| Power factor |
0.98 |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Noise level |
48 dB |
| Input current Total Harmonic Distortion (THD) |
1% |
| Crest factor |
3:1 |
| Output power capacity |
4 kVA |
| ECO mode |
Yes |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| AC outlets quantity |
3 AC outlet(s) |
| AC outlet types |
IEC 320 |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| RS-232 ports |
1 |
| USB port type |
USB Type-A |
| Battery |
|---|
| Battery voltage |
96 V |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
4 h |
| Design |
|---|
| International Protection (IP) code |
IP20 |
| Rack capacity |
3U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Safety |
CEI EN 62040-1 |
| Cooling type |
Active |
| Certification |
European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111 |
| Built-in fan |
Yes |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
15 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating altitude |
1000 - 4000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111 |
| Compliance certificates |
RoHS |
| Safety |
CEI EN 62040-1 |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Rack mount kit |
Yes |
| Manual |
Yes |
| Cooling |
|---|
| Cooling type |
Active |
| Built-in fan |
Yes |
| Safety regulation & standards |
|---|
| Safety |
CEI EN 62040-1 |
| Weight & dimensions |
|---|
| Weight |
38 kg |
| Width |
131 mm |
| Height |
448 mm |
| Depth |
640 mm |
| Battery width |
13.1 cm |
| Battery depth |
44.8 cm |
| Battery height |
64 cm |
| Battery weight |
28 g |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Rack mount kit |
Yes |
| Manual |
Yes |
