Description

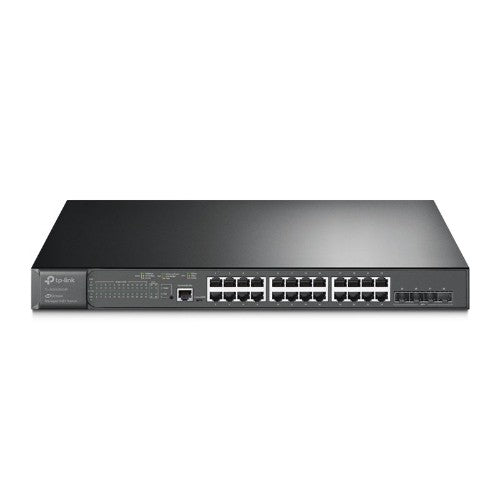

24× 10/100/1000 Mbps RJ45, 4× 10G SFP+, 1× RJ45 Console Port, 1× Micro-USB, 128 Gbps, 95.23 Mpps, 16 K MAC, Jumbo Frame 9 KB, 440 × 330 × 44 mm
Software Defined Networking (SDN) with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Key Features
- 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
- 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Description
TP-Link’s JetStream L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.Software Defined Networking (SDN) with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2+ |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Console port | RJ-45/Micro-USB |

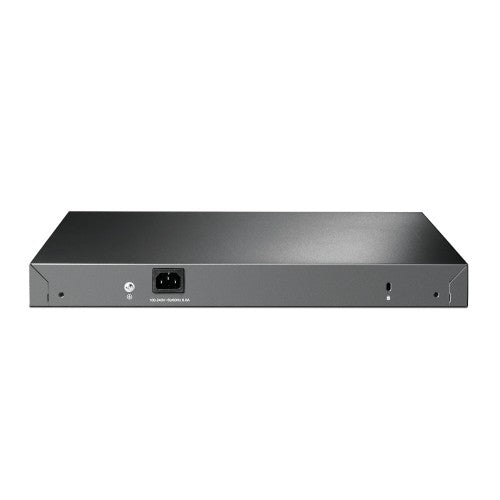

| Power connector | AC-in jack |
| Network | |
| Active link detection | Yes |
| Networking standards | IEEE 802.11d, IEEE 802.1s, IEEE 802.1w |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Policy-based routing | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Number of static routes | 48 |
| Packet buffer memory | 12 MB |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 95.23 Mpps |
| Number of VLANs | 4000 |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Power | |
| Power consumption (max) | 455.5 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 384 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 1554.39 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| Packaging data | |
| Package width | 440 mm |
| Package depth | 528 mm |
| Package height | 100 mm |
| Package weight | 6.17 kg |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| Performance | |
| Packet buffer memory | 12 MB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 12 MB |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
