Description
1U, 13 x Ethernet, 1 GB RAM, 25W, PoE in, RS232, 1.2 kg
Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
Description
New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 128 MB |
| Performance | |
| Processor cores | 4 |
| Storage media | Flash |
| Internal memory | 128 MB |
| Built-in processor | Yes |
| Processor frequency | 1400 MHz |
| WAN connection | |
| Ethernet WAN | Yes |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 13 |
| Technical details | |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Processor frequency | 1400 MHz |
| LED indicators | Yes |
| Product colour | Aluminium |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |

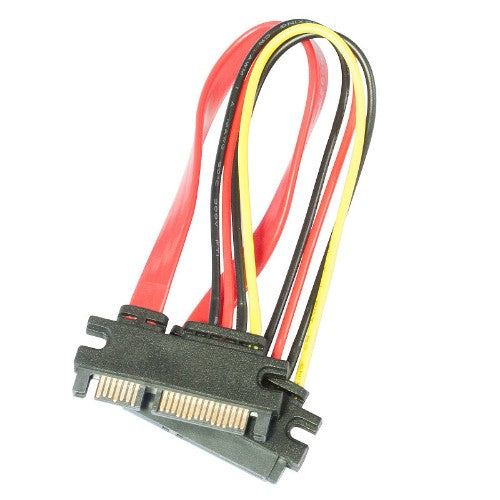

| Cables included | SATA |
| Features | |
| Processor cores | 4 |
| Storage media | Flash |
| Internal memory | 128 MB |
| Built-in processor | Yes |
| Processor frequency | 1400 MHz |
| Design | |
| Rack mounting | Yes |
| LED indicators | Yes |
| Product colour | Aluminium |
| Rack capacity | 1U |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 25 W |
| Weight & dimensions | |
| Width | 444 mm |
| Depth | 148 mm |
| Height | 47 mm |
| Packaging data | |
| Cables included | SATA |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
