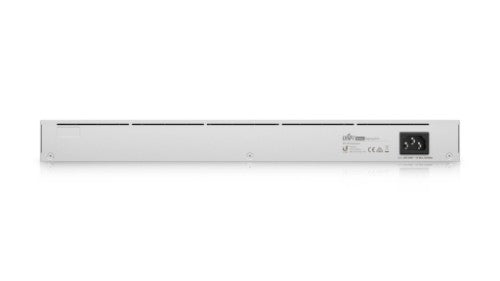

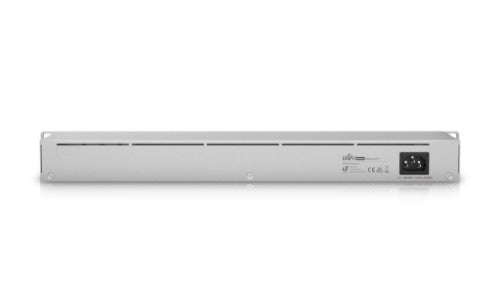

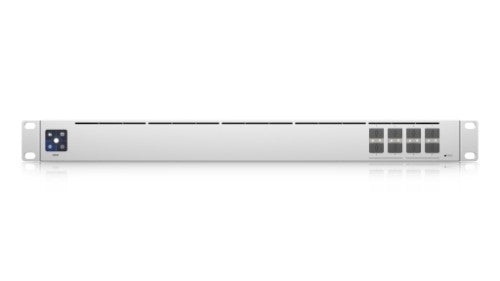

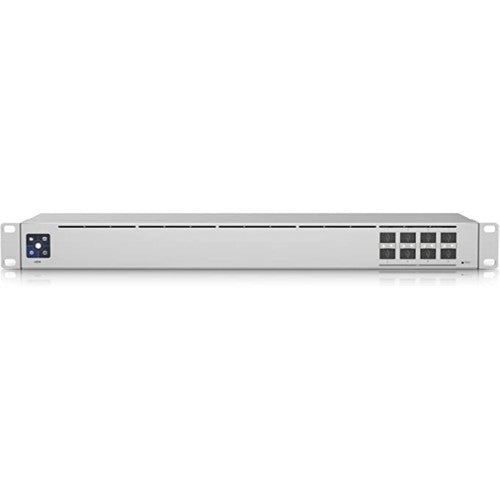

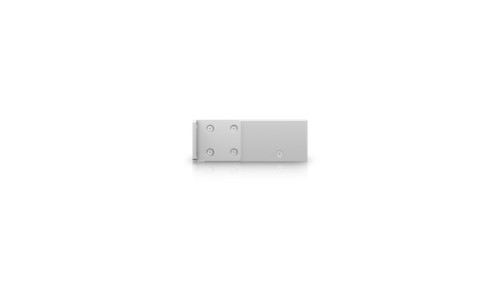

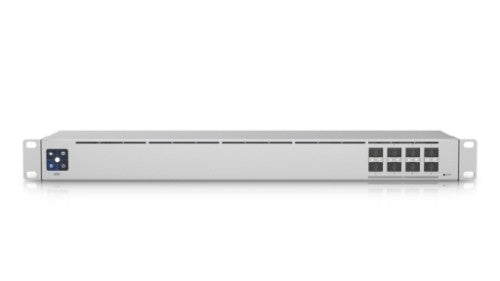

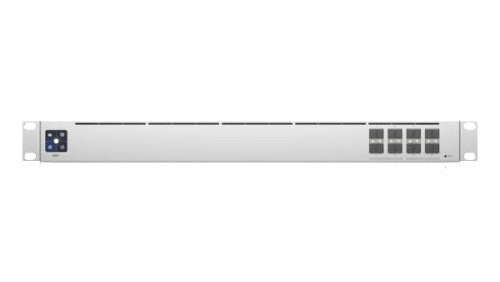

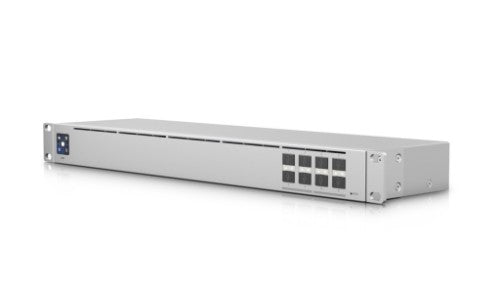

Ubiquiti USW-AGGREGATION network switch Managed L2 1U Silver

8x 10G SFP+, 160 Gbps, 1U

Key Features

• (8) 10G SFP+ Ports
• 160 Gbps switching capacity
• 1.3" Touchscreen with AR switch management
• Fanless, 4.7" depth compact enclosure
• 1U Rackmountable (kit included)

Description

Managed layer 2 aggregation switch sporting (8) 10G SFP+ ports for high capacity link aggregation.

The UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.

Specifications

Technical details
Form factor	1U
Product colour	Silver
Housing material	Galvanized steel
Rack mounting	Yes
Management features
Switch type	Managed
Switch layer	L2
Ports & interfaces
SFP+ module slots quantity	8
Basic switching RJ-45 Ethernet ports type	No
Network
10G support	Yes
Data transmission
Switching capacity	160 Gbit/s
Forwarding rate	119.04 Mpps
Throughput	80 Gbit/s
Certificates
Certification	CE, FCC, IC
Design
Form factor	1U
Product colour	Silver
LED indicators	System
Housing material	Galvanized steel
Certification	CE, FCC, IC
Rack mounting	Yes
Performance
Harmonized System (HS) code	85176990
Fanless	Yes
Indication
LED indicators	System
Power
Power consumption (max)	30 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	442.4 mm
Depth	120 mm
Height	43.7 mm
Weight	2.65 kg
Packaging data
Rack mount kit	Yes
Cables included	AC
Logistics data
Harmonized System (HS) code	85176990
Packaging content
Rack mount kit	Yes
Cables included	AC
