Thermal, 150mm/s, 203mm, 203dpi
Key Features
- Vandal proof
- Operating temperatures of between -15 - +65 degrees Celsius
- 150mm per second print speed
- Optional PHU-500 Paper Holder Unit
- Media rolls up to 200mm OD and 8 different positions
Description

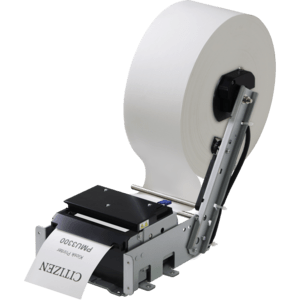

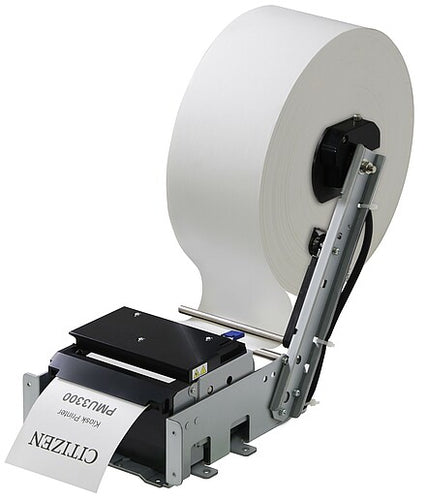

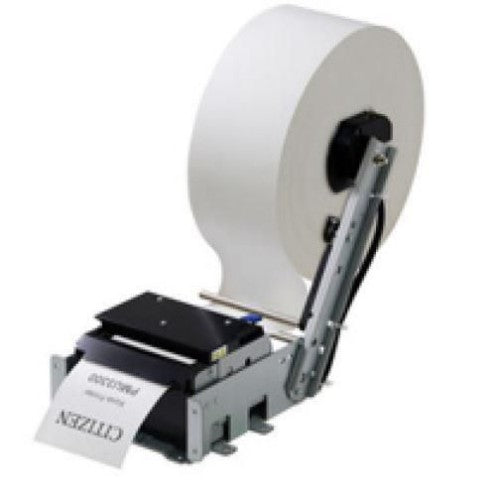

The unique PMU3300 is a compact thermal printer designed for integration into demanding kiosk applications. It features side opening for easy loading, a vandal proof design for ultimate reliability, and its low space requirement makes it ideal for small spaces and enables easy mounting. It also combines 203 dpi resolution, high speed 150mm/sec printing, and a choice of 2 or 3 inch paper widths. Furthermore, since its operating temperatures are between -15 to +65 degrees Celsius, the tough PMU3300 is ideal for all kiosks regardless of extreme temperatures experienced in a wide range of environments.
Specifications
| Printing |
|---|
| Colour |
No |
| Type |
POS printer |
| Print technology |
Direct thermal |
| Maximum resolution |
203 x 203 DPI |
| Print columns |
72 dots/line |
| Print speed (receipt) |
150 mm/sec |
| Performance |
|---|
| Type |
POS printer |
| Print technology |
Direct thermal |
| Maximum resolution |
203 x 203 DPI |
| Built-in barcodes |
Code 93, Code-128 Codabar Library, Code-39 Library, EAN13, GS1 DataBar Expanded, PDF417, QR Code, UPC-A, UPC-E |
| Print columns |
72 dots/line |
| Paper handling |
|---|
| Supported paper width |
72 mm |
| Printing media thickness |
75 µm |
| Maximum roll diameter |
20.3 cm |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232C |
| Network |
|---|
| Wi-Fi |
No |
| Print technology |
|---|
| Type |
POS printer |
| Print technology |
Direct thermal |
| Print columns |
72 dots/line |
| Print quality |
|---|
| Maximum resolution |
203 x 203 DPI |
| Technical details |
|---|
| Product colour |
Silver |
| Built-in barcodes |
Code 93, Code-128 Codabar Library, Code-39 Library, EAN13, GS1 DataBar Expanded, PDF417, QR Code, UPC-A, UPC-E |
| Autocutter durability |
100 million cuts |
| Cutter |
Yes |
| Colour |
No |
| Features |
|---|
| Safety |
CE UL FCC FCC class A FCC class B |
| Product colour |
Silver |
| Built-in barcodes |
Code 93, Code-128 Codabar Library, Code-39 Library, EAN13, GS1 DataBar Expanded, PDF417, QR Code, UPC-A, UPC-E |
| Autocutter durability |
100 million cuts |
| Cutter |
Yes |
| Print head life |
50 km |
| Design |
|---|
| Product colour |
Silver |
| Power |
|---|
| AC input voltage |
24 V |
| Power source type |
DC |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-15 - 65 °C |
| Certificates |
|---|
| Safety |
CE UL FCC FCC class A FCC class B |
| Weight & dimensions |
|---|
| Width |
108 mm |
| Depth |
138 mm |
| Height |
73 mm |
| Weight |
675 g |
| Other features |
|---|
| Print head life |
50 km |
