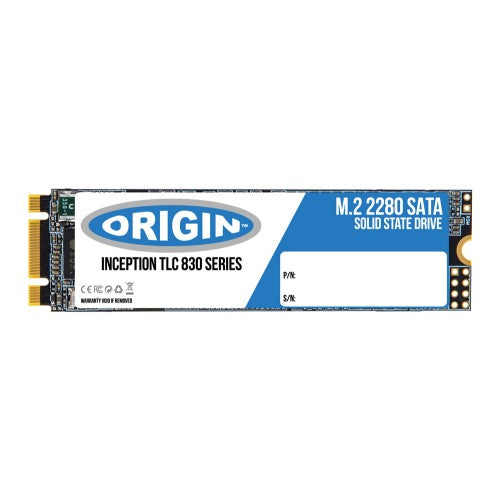

TLC830 Pro Series 256GB M.2 (NGFF) 80mm SATA 3D TLC SSD
Key Features
- Read Intensive, Mobile/Desktop Based, Professional Solutions
- Does not invalidate OEM warranty
- 100% compatible replacement/upgrade for storage solutions
- Pre- & Post-Sale UK Based Tech Support
Reasons To Buy
Read Intensive
Read Intensive, Mobile/Desktop Based, Professional Solutions
Warranty
Does not invalidate OEM warranty
Compatability
100% compatible replacement/upgrade for storage solutions
Support
Pre- & Post-Sale UK Based Tech Support
Description
The Inception TLC830 Pro range of SSD Solutions are manufactured by Origin using the highest quality Tier 1 NAND and the latest generation of controllers which enables us to provide both high performance and strong reliability. All of our Inception SSDs come with 3 years advanced replacement warranty alongside free, in -house pre and post sales technical support. We can supply the TLC830 Pro in form factors of 2.5", 3.5" & M.2 with either SATA or NVME interfaces, whilst being available in a range of capacities designed to increase the performance & extend the lifecycle of any laptop or desktop.
Specifications
| Hard drive |
|---|
| SSD capacity |
256 GB |
| Memory type |
3D TLC |
| Seek time |
0 ms |
| Access time |
0.2 ms |
| Performance |
|---|
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Interface |
Serial ATA |
| Component for |
PC/Laptop |
| NVMe |
No |
| NVMe version |
1.3 |
| Sequential read speed (ATTO) |
2100 MB/s |
| Sequential write speed (ATTO) |
1900 MB/s |
| TBW rating |
100 |
| Hot-swap |
No |
| SSD capacity |
256 GB |
| S.M.A.R.T. support |
Yes |
| Read speed |
550 MB/s |
| TRIM support |
Yes |
| Write speed |
500 MB/s |
| Memory type |
3D TLC |
| Random write (4KB) |
67000 IOPS |
| Random read (4KB) |
69000 IOPS |
| Seek time |
0 ms |
| Mean time between failures (MTBF) |
1000000 h |
| Hardware encryption |
No |
| Data transfer rate |
6 Gbit/s |
| Access time |
0.2 ms |
| Compatible products |
Universal |
| Data transmission |
|---|
| Read speed |
550 MB/s |
| Write speed |
500 MB/s |
| Random write (4KB) |
67000 IOPS |
| Random read (4KB) |
69000 IOPS |
| Data transfer rate |
6 Gbit/s |
| Endurance |
|---|
| Mean time between failures (MTBF) |
1000000 h |
| Features |
|---|
| Interface |
Serial ATA |
| Component for |
PC/Laptop |
| NVMe |
No |
| NVMe version |
1.3 |
| Sequential read speed (ATTO) |
2100 MB/s |
| Sequential write speed (ATTO) |
1900 MB/s |
| TBW rating |
100 |
| Hot-swap |
No |
| SSD capacity |
256 GB |
| Windows operating systems supported |
Yes |
| S.M.A.R.T. support |
Yes |
| Read speed |
550 MB/s |
| TRIM support |
Yes |
| Write speed |
500 MB/s |
| Linux operating systems supported |
Yes |
| Memory type |
3D TLC |
| Random write (4KB) |
67000 IOPS |
| Random read (4KB) |
69000 IOPS |
| Seek time |
0 ms |
| Mean time between failures (MTBF) |
1000000 h |
| Hardware encryption |
No |
| Data transfer rate |
6 Gbit/s |
| Access time |
0.2 ms |
| SSD form factor |
M.2 |
| Compatible products |
Universal |
| Harmonized System (HS) code |
84717070 |
| Power |
|---|
| Power consumption (average) |
3.53 W |
| Power consumption (max) |
4.26 W |
| Power consumption (write) |
4.26 W |
| Power consumption (read) |
2.8 W |
| Power consumption (idle) |
0.52 W |
| Operating voltage |
3.3 V |
| Design |
|---|
| Component for |
PC/Laptop |
| SSD form factor |
M.2 |
| Weight & dimensions |
|---|
| Width |
80 mm |
| Weight |
7 g |
| Height |
2.2 mm |
| Depth |
22 mm |
| Package type |
Blister |
| Packaging data |
|---|
| Storage drive adapter included |
No |
| Package type |
Blister |
| Screws included |
No |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-45 - 105 °C |
| Operating relative humidity (H-H) |
5 - 98% |
| Storage relative humidity (H-H) |
5 - 98% |
| Operating shock |
1500 G |
| Operating vibration |
16 G |
| Maximum operating altitude |
36576 m |
| Technical details |
|---|
| Interface |
Serial ATA |
| Hot-swap |
No |
| S.M.A.R.T. support |
Yes |
| Operating temperature (T-T) |
0 - 70 °C |
| TRIM support |
Yes |
| Storage temperature (T-T) |
-45 - 105 °C |
| Operating relative humidity (H-H) |
5 - 98% |
| Storage relative humidity (H-H) |
5 - 98% |
| Operating shock |
1500 G |
| Operating vibration |
16 G |
| Maximum operating altitude |
36576 m |
| Hardware encryption |
No |
| SSD form factor |
M.2 |
| Compliance certificates |
RoHS |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Other features |
|---|
| Compatible products |
Universal |
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Storage drive adapter included |
No |
| Screws included |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
84717070 |
