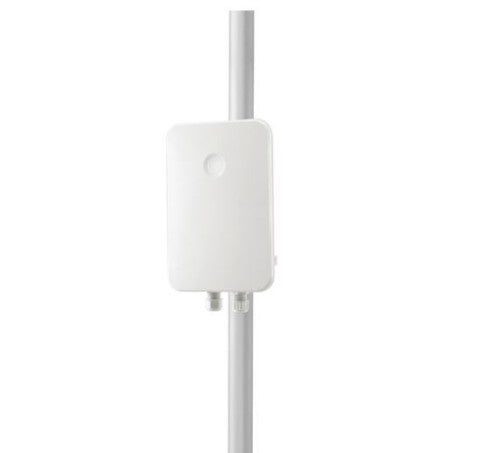

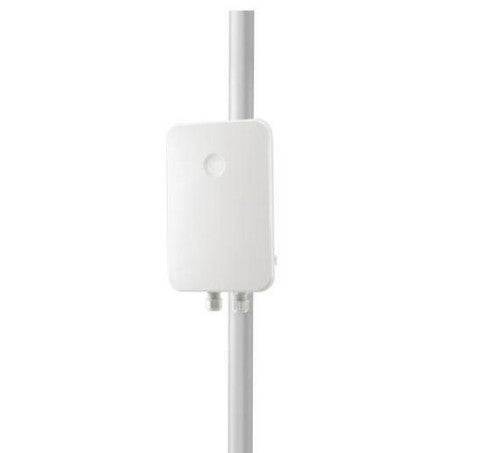

cnPilot e700 Wi-Fi Access Point
Description
cnPilot™ e700 Enterprise Outdoor APs feature Gigabit throughput, 802.11ac Wave 2 standard with beam forming for superior outdoor Wi-Fi for enterprise campus, hospitality, higher education and public Wi-Fi applications.Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 2133 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Transmitting power | 28 dBmW |
| Reset button | Yes |
| Spread spectrum method | DSSS, OFDM |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3at |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 80 MHz |
| Certification | FCC, CE, IC, UL, ETSI, RoHS, WEEE |
| Maximum data transfer rate | 2133 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wi-Fi roaming | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Wireless LAN features | |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK |
| Network | |
| Spread spectrum method | DSSS, OFDM |
| Networking standards | IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3at |
| Bandwidth | |
| Channel bandwidth | 80 MHz |
| Security | |
| Cable lock slot | Yes |
| Number of SSID supported | 16 |
| Security algorithms | AES, EAP-AKA, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, SNMP, SNMPv3, WPA-TKIP, WPA2, WPA2-Enterprise |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Certificates | |
| Certification | FCC, CE, IC, UL, ETSI, RoHS, WEEE |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Transmitting power | 28 dBmW |
| Spread spectrum method | DSSS, OFDM |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3at |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 80 MHz |
| Maximum data transfer rate | 2133 Mbit/s |
| Maximal-Ratio Combining (MRC) | Yes |
| Fast roaming | Yes |
| Data unit aggregation | A-MPDU, A-MSDU |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wi-Fi roaming | Yes |
| Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1733 Mbit/s |
| Protocols | |
| DHCP server | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (max) | 24.6 W |
| Power consumption (typical) | 18 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| International Protection (IP) code | IP67 |
| Placement | Pole, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | FCC, CE, IC, UL, ETSI, RoHS, WEEE |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 8 dBi |
| Antenna features | Integrated antenna |
| Technical details | |
| Transmitting power | 28 dBmW |
| Reset button | Yes |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Software | |
| Maximal-Ratio Combining (MRC) | Yes |
| Fast roaming | Yes |
| Data unit aggregation | A-MPDU, A-MSDU |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| Weight & dimensions | |
| Width | 215 mm |
| Depth | 66 mm |
| Weight | 1.7 kg |
| Height | 315 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -40 - 65 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
