Description
Key Features
- All-in-one video bar features an advanced microphone array, room-filling speakers, and a real PTZ camera in a sleek, easy-to-install form factor.
- Simple to set up with a dedicated PC, laptop, or in appliance mode for a computer-free deployment option.
- Thoughtful cable management lets you route cables from above or below to minimize visible cabling and prevent accidental disconnections.
- Multiple mounting options, including available Wall and TV Mounts, provide a finished look and no-drill options for both meeting rooms and mobile carts.
- Motorized PTZ lens delivers expansive room coverage, outstanding color, and exceptional accuracy at resolutions up to 4K.
- Always-on AI Viewfinder provides persistent awareness for RightSight auto-framing and room utilization metrics like people count.
Description

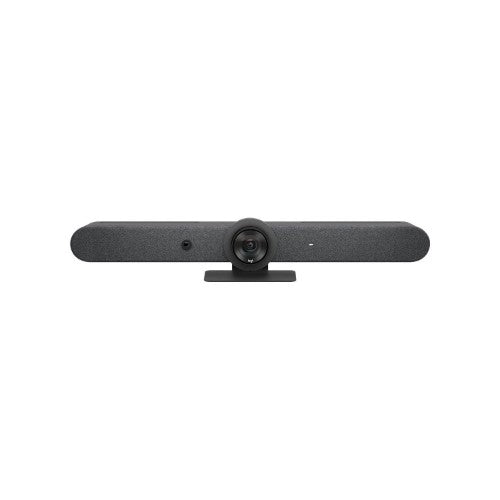

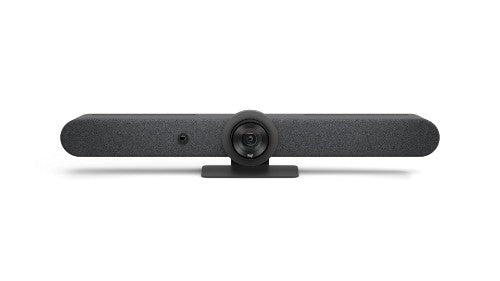

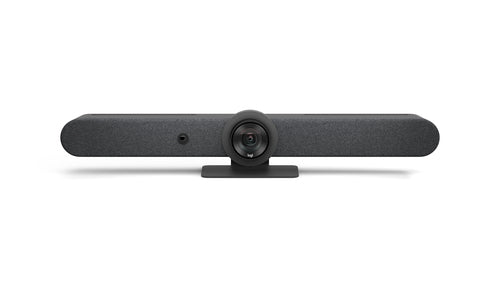

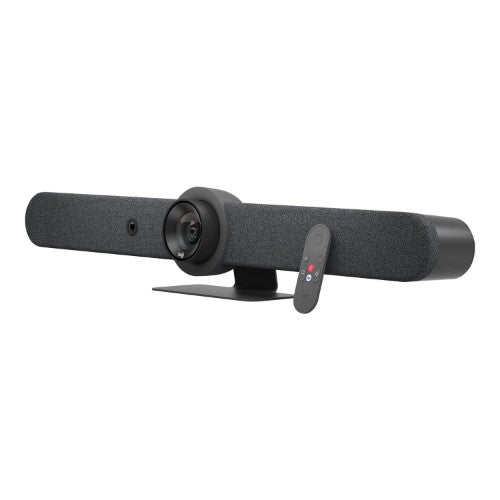

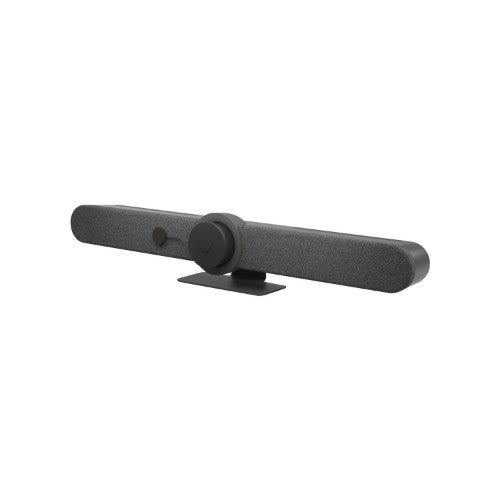

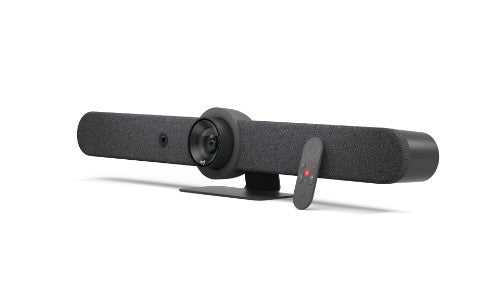

The Logitech Rally Bar (960-001312) delivers an exceptional video conferencing experience with advanced optics, powerful audio, and seamless integration with leading platforms like Zoom and Microsoft Teams. Designed for medium to large meeting rooms, Rally Bar ensures effortless communication with high-definition visuals and crystal-clear sound.
Ultra-HD Video with Smart Framing
Experience razor-sharp 4K video with advanced optics that capture every detail, ensuring lifelike clarity in every meeting. With AI-powered RightSight™ auto-framing, the camera intelligently adjusts to focus on active speakers and participants, keeping discussions dynamic and engaging.
Powerful, Room-Filling Audio
Rally Bar’s dual speakers deliver rich, clear, and distortion-free sound, ensuring every voice is heard across the room. The adaptive beamforming microphones intelligently capture voices while suppressing background noise, making remote participants feel like they are in the same space.
Plug-and-Play Simplicity
With USB plug-and-play functionality, setting up Rally Bar is effortless—simply connect to your PC or Mac for an instant meeting. Alternatively, use Appliance Mode for a dedicated, computer-free setup with Zoom Rooms or Microsoft Teams Rooms, ensuring a streamlined and reliable meeting experience.
AI-Driven Video & Audio Enhancements
Built-in RightSound™ and RightLight™ technologies optimize audio and video quality in real time. RightSound enhances vocal clarity while minimizing echoes and background noise, while RightLight adjusts brightness and color balance to ensure well-lit, natural-looking video.
Scalable & Versatile for Any Meeting Space
Designed for medium to large rooms, Rally Bar can be expanded with additional Logitech Rally Mic Pods for extended audio coverage. Its sleek, graphite finish blends seamlessly into any professional setting, complementing modern conference rooms.
Logitech Rally Bar is the ultimate solution for hybrid collaboration, combining premium video, immersive sound, and AI-driven automation for effortless, high-quality video conferencing. Whether using Zoom, Microsoft Teams, or other platforms, Rally Bar ensures every meeting is productive and engaging.
Specifications
| Performance | |
|---|---|
| Product type | Group video conferencing system |
| Tilt angle range | -15 - 15° |
| Pan range | -25 - 25° |
| Product colour | Graphite |
| PTZ control | Yes |
| Technical details | |
| Product type | Group video conferencing system |
| Tilt angle range | -15 - 15° |
| Pan range | -25 - 25° |
| Product colour | Graphite |
| PTZ control | Yes |
| Harmonized System (HS) code | 85176990 |
| Video | |
| HD type | 4K Ultra HD |
| Optical zoom | 5x |
| Digital zoom | 3x |
| Supported video modes | 576p, 720p, 900p, 1440p, 2160p |
| Maximum frame rate | 30 fps |
| Audio | |
| Microphone pick-up range | 4.5 m |
| Output level | 92/99 dB |
| Line-out impedance | 4 Ω |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| RMS rated power | 8 W |
| Noise reduction | Yes |
| Echo cancellation | Yes |
| Built-in speaker(s) | Yes |
| Sample rates | 0 - 48 kHz |
| Audio beamforming | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-C |
| DC-in jack | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| Interface module | |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Supported network protocols | IPv4, IPv6 |
| Security algorithms | 128-bit AES |
| Camera | |
| Horizontal field of view | 82.1° |
| Remote control interface | Bluetooth |
| Optical zoom | 5x |
| Digital zoom | 3x |
| Vertical field of view | 52.2° |
| Diagonal field of view | 90° |
| Zoom capability | Yes |
| Microphone | |
| Microphone sensitivity | -36 dB |
| Microphone frequency | 90 - 16000 Hz |
| Microphone direction type | Omnidirectional |
| Number of microphones | 6 |
| Sound pressure level (max) | 90 dB |
| Security | |
| Security algorithms | 128-bit AES |
| Battery | |
| Battery capacity | 0.675 Wh |
| Features | |
| Telepresence | No |
| Logistics data | |
| Master (outer) case width | 300 mm |
| Master (outer) case gross weight | 4.73 kg |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 160 mm |
| Harmonized System (HS) code | 85176990 |
| Computer system | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | MacOS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 64 BTU/h |
| Power | |
| DC input voltage | 19 V |
| AC input voltage | 100 - 240 V |
| Current | 4.754 A |
| Power source type | AC |
| Power plug type | Type G |
| Number of batteries supported | 1 |
| Battery technology | Lithium |
| Battery capacity | 220 mAh |
| Weight & dimensions | |
| Width | 910 mm |
| Depth | 160 mm |
| Height | 164 mm |
| Weight | 7.08 kg |
| Package width | 207 mm |
| Package depth | 989 mm |
| Package height | 218 mm |
| Package weight | 9.29 kg |
| Packaging content | |
| Remote control included | Yes |
| Packaging content | Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation |
| Cables included | AC, DC, HDMI, USB Type-A to USB Type-C |
| Power cable length | 2.5 m |
| HDMI cable length | 2 m |
| Batteries included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
