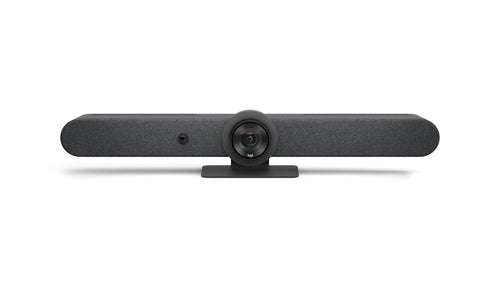

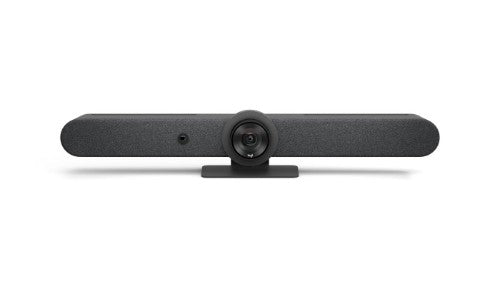

Logitech Rally Bar

Logitech Rally Bar

Key Features

• All-in-one video bar features an advanced microphone array, room-filling speakers, and a real PTZ camera in a sleek, easy-to-install form factor.
• Simple to set up with a dedicated PC, laptop, or in appliance mode for a computer-free deployment option.
• Thoughtful cable management lets you route cables from above or below to minimize visible cabling and prevent accidental disconnections.
• Multiple mounting options, including available Wall and TV Mounts, provide a finished look and no-drill options for both meeting rooms and mobile carts.
• Motorized PTZ lens delivers expansive room coverage, outstanding color, and exceptional accuracy at resolutions up to 4K.
• Always-on AI Viewfinder provides persistent awareness for RightSight auto-framing and room utilization metrics like people count.

Description

Logitech Webcam RALLY BAR Conference Set EU graphite für mittelgroße bis große Räume

Specifications

Performance
Product type	Group video conferencing system
Tilt angle range	-15 - 15°
Pan range	-25 - 25°
Product colour	Graphite
PTZ control	Yes
Technical details
Product type	Group video conferencing system
Tilt angle range	-15 - 15°
Pan range	-25 - 25°
Product colour	Graphite
PTZ control	Yes
Harmonized System (HS) code	85176990
Video
HD type	4K Ultra HD
Optical zoom	5x
Digital zoom	3x
Supported video modes	576p, 720p, 900p, 1440p, 2160p
Maximum frame rate	30 fps
Audio
Microphone pick-up range	4.5 m
Output level	92/99 dB
Line-out impedance	4 Ω
Output voltage Total Harmonic Distortion (THD)	2%
RMS rated power	8 W
Noise reduction	Yes
Echo cancellation	Yes
Built-in speaker(s)	Yes
Sample rates	0 - 48 kHz
Audio beamforming	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB connector type	USB Type-A, USB Type-C
DC-in jack	Yes
Microphone in	Yes
HDMI ports quantity	3
HDMI output ports quantity	2
HDMI input ports quantity	1
Interface module
Interface module Ethernet LAN (RJ-45) ports	1
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols	IPv4, IPv6
Security algorithms	128-bit AES
Camera
Horizontal field of view	82.1°
Remote control interface	Bluetooth
Optical zoom	5x
Digital zoom	3x
Vertical field of view	52.2°
Diagonal field of view	90°
Zoom capability	Yes
Microphone
Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Microphone direction type	Omnidirectional
Number of microphones	6
Sound pressure level (max)	90 dB
Security
Security algorithms	128-bit AES
Battery
Battery capacity	0.675 Wh
Features
Telepresence	No
Logistics data
Master (outer) case width	300 mm
Master (outer) case gross weight	4.73 kg
Master (outer) case length	330 mm
Master (outer) case height	160 mm
Harmonized System (HS) code	85176990
Computer system
Windows operating systems supported	Yes
Mac operating systems supported	MacOS
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	64 BTU/h
Power
DC input voltage	19 V
AC input voltage	100 - 240 V
Current	4.754 A
Power source type	AC
Power plug type	Type C
Number of batteries supported	1
Battery technology	Lithium
Battery capacity	220 mAh
Weight & dimensions
Width	910 mm
Depth	160 mm
Height	164 mm
Weight	7.08 kg
Package width	207 mm
Package depth	989 mm
Package height	218 mm
Package weight	9.3 kg
Packaging content

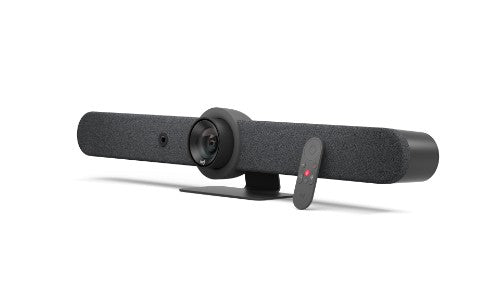

Remote control included	Yes
Packaging content	Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation
Cables included	AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length	2.5 m
HDMI cable length	2 m
Batteries included	Yes
AC adapter included	Yes
Quick start guide	Yes
