Description

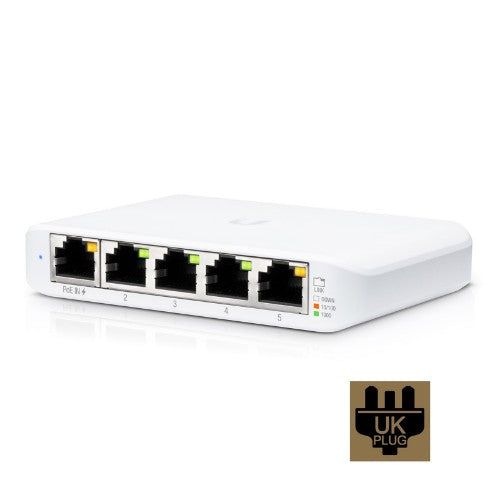

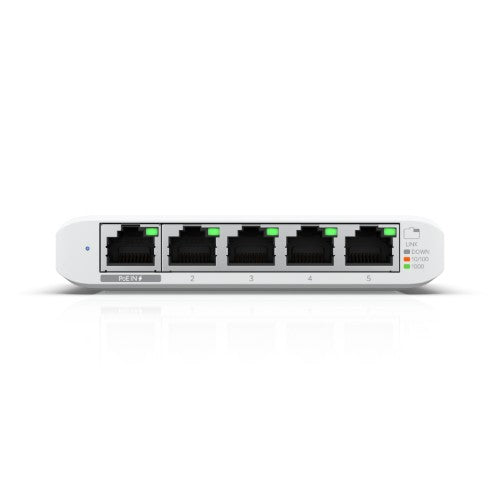

5x RJ-45, L2, 10 Gbps switching capacity, USB Type-C
Key Features
- (4) GbE ports
- (1) GbE PoE input port for power

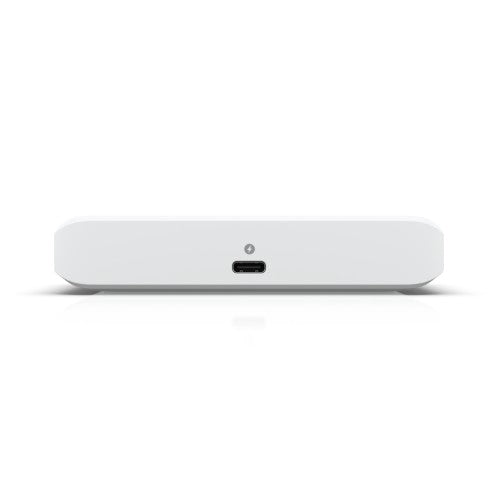

- Optional powering with included 5V, 1A USB-C adapter
Description
A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | USB |
| Network | |
| 10G support | No |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| Throughput | 5 Gbit/s |
| Design | |
| Reset button | Yes |
| Product colour | White |
| LED indicators | LAN, System |
| Housing material | Polycarbonate (PC) |
| Rack mounting | No |
| Certification | CE, FCC, IC |
| Power | |
| Power consumption (max) | 2.5 W |
| Power supply included | Yes |
| Input voltage | 5 V |
| DC input voltage | 44 - 57 V |
| Power source | PoE/USB |
| Power connector | USB |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 107.2 mm |
| Depth | 70.2 mm |
| Height | 21.2 mm |
| Weight | 150 g |
| Packaging content | |
| Manual | Yes |
| Technical details | |
| Product colour | White |
| Housing material | Polycarbonate (PC) |
| Rack mounting | No |
| Certificates | |
| Certification | CE, FCC, IC |
| Indication | |
| LED indicators | LAN, System |
| Packaging data | |
| Manual | Yes |
| Other features | |
| Input voltage | 5 V |
