Description
ARM Cortex-A7 1.2 GHz CPU, 128 MBytes RAM, 512 MBytes Flash, LTE (Cat4)/3G/2G, Mini SIM, Ethernet

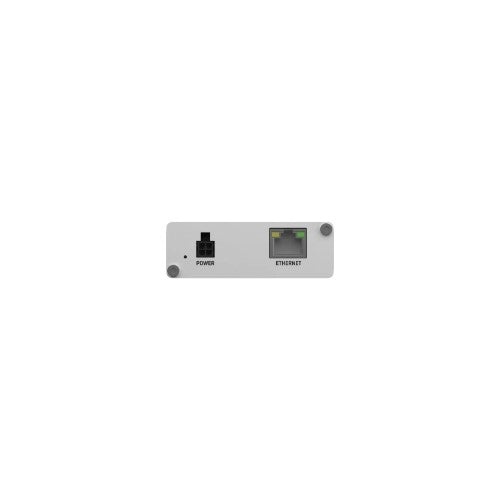

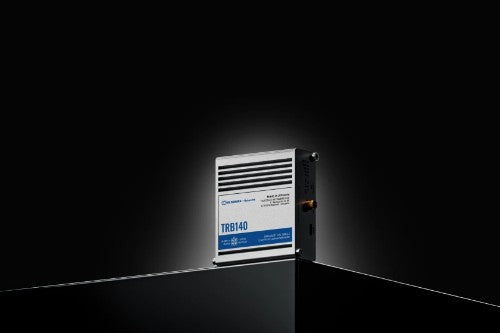

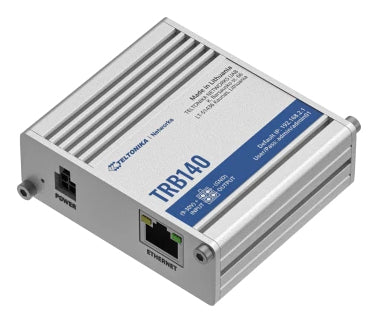

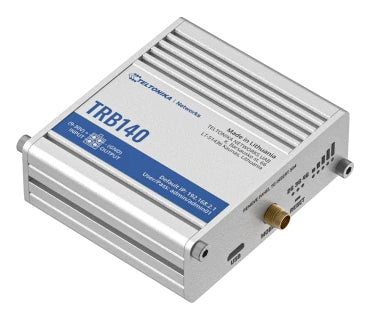

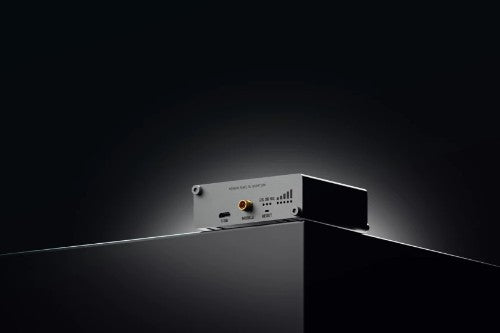

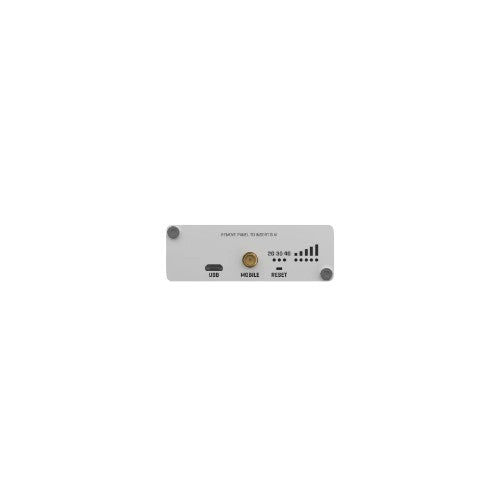

TRB140 is an ultra-small, lightweight, and energy-efficient IoT device with mission-critical LTE Cat 4 and Gigabit Ethernet connectivity options. Linux environment offers a high degree of customization. This gateway is perfect for projects and applications where a single device must be upgraded with reliable and secure internet connectivity.
Description
INDUSTRIAL RUGGED LTE GATEWAYTRB140 is an ultra-small, lightweight, and energy-efficient IoT device with mission-critical LTE Cat 4 and Gigabit Ethernet connectivity options. Linux environment offers a high degree of customization. This gateway is perfect for projects and applications where a single device must be upgraded with reliable and secure internet connectivity.
Specifications
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Grey |
| International Protection (IP) code | IP30 |
| Features | |
| Antenna type | External |
| Antenna connector type | SMA |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Number of processors installed | 1 |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Number of processors installed | 1 |
| Internal memory | 128 MB |
| Flash memory | 512 MB |
| Product colour | Grey |
| International Protection (IP) code | IP30 |
| Protocols | |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL) |
| Network | |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cable types supported | Cat4 |
| Security | |
| Firewall security | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| SIM card type | MiniSIM |
| SIM card slot | Yes |
| Management features | |
| Reset button | Yes |
| Power | |
| Power consumption (typical) | 5 W |
| DC input voltage | 9 - 30 V |
| Weight & dimensions | |
| Weight | 134 g |
| Width | 74.5 mm |
| Height | 25 mm |
| Depth | 64.4 mm |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Built-in processor | Yes |
| Antenna type | External |
| Processor frequency | 1200 MHz |
| Number of processors installed | 1 |
| Antenna connector type | SMA |
| Indication | |
| LED indicators | Yes |
| Memory | |
| Internal memory | 128 MB |
| Flash memory | 512 MB |
| Antenna | |
| Antenna type | External |
| Antenna connector type | SMA |
