Description

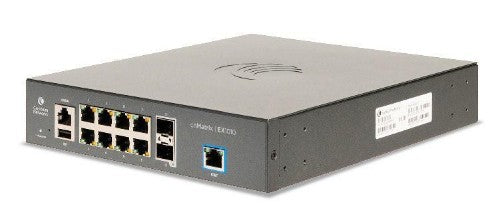

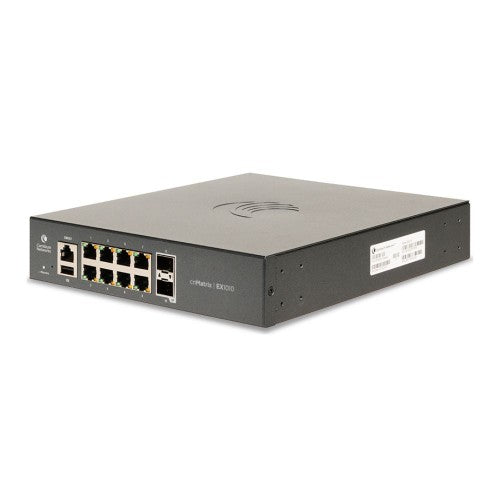

20 Gbps throughput, 8 10/100/1000 ports, 2 SFP Uplink ports, Enterprise-grade L2+ functionality
Description
Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2/L3 |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Static route | Yes |
| Throughput | 20 Gbit/s |
| Number of VLANs | 4000 |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSH-2 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1/v2/v3 |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 800 MHz |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Built-in processor | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 55 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 88 mm |
| Height | 250 mm |
| Weight | 1.6 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Processor frequency | 800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
