Description

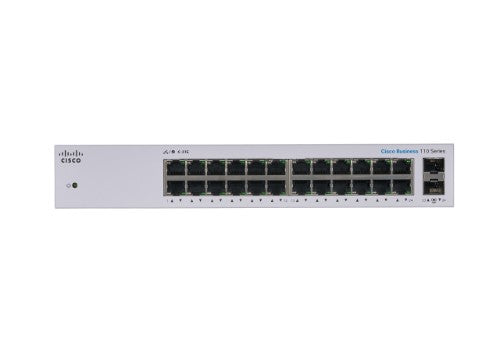

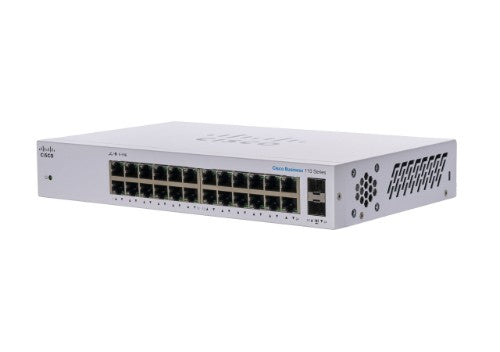

Business CBS110-24T-D Unmanaged Switch | 24 Port GE | 2x1G SFP Shared | Limited Lifetime Protection (CBS110-24T-D)
Key Features
- SWITCH PORTS: 24 -Port 10/100/1000 + 2 x 1GE SFP (Shared)
- SIMPLE: Plug-and-play without a need for IT know-how or support.
- FLEXIBLE: Extensive portfolio provides ultimate flexibility from 5 to 24 ports and PoE combinations
- PERFORMANCE: Gigabit Ethernet and integrated quality-of-service (QoS) intelligence optimize delay-sensitive services and improve overall network performance.
- INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
- ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in all models
- PEACE OF MIND: Limited-lifetime warranty with return to factory replacement and one-year technical support
Description

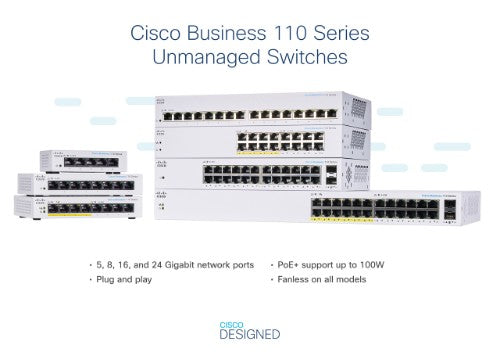

The Cisco Business 110 Series Unmanaged Switches are affordable, plug-and-play entry-level switches that provide gigabit Ethernet switching with key features like Power over Ethernet (PoE), energy efficiency, and traffic prioritization for a fast and resilient small business network.Specifications
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Technical details | |
| Form factor | Desktop |
| Product colour | Grey |
| Processor frequency | 400 MHz |
| Mean time between failures (MTBF) | 524296 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| MAC address table | 8192 entries |
| Switching capacity | 48 Gbit/s |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Forwarding rate | 35.7 Mpps |
| Security | |
| Loop protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Certificates | |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| Design | |
| Country of origin | China |
| Form factor | Desktop |
| Product colour | Grey |
| LED indicators | Yes |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B |
| Rack mounting | Yes |
| Market segment | Business |
| Performance | |
| Processor frequency | 400 MHz |
| Mean time between failures (MTBF) | 524296 h |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Packaging content | |
| Packaging content | Switch, Power cord or adapter, Mounting hardware and Quick Start Guide |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Power | |
| Power plug type | Type C |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 Hz |
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| Power supply location | Internal |
| Power saving mode (EEE) | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 55.75 BTU/h |
| Weight & dimensions | |
| Width | 177.8 mm |
| Depth | 279.4 mm |
| Height | 43.9 mm |
| Weight | 1.56 kg |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Package width | 293.1 mm |
| Package depth | 365.8 mm |
| Package height | 105.9 mm |
| Package weight | 2.79 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Packaging content | Switch, Power cord or adapter, Mounting hardware and Quick Start Guide |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Diagnostics | Cable diagnostics |
| Country of origin | China |
