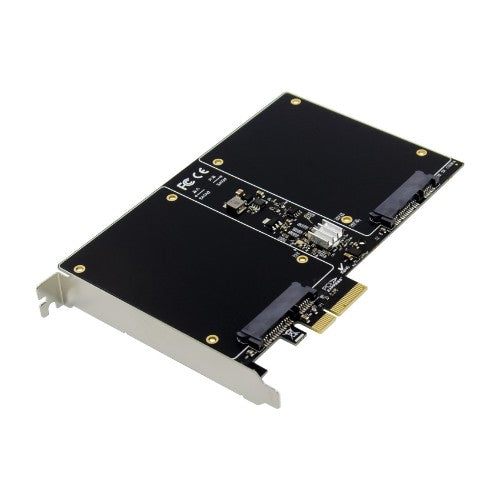

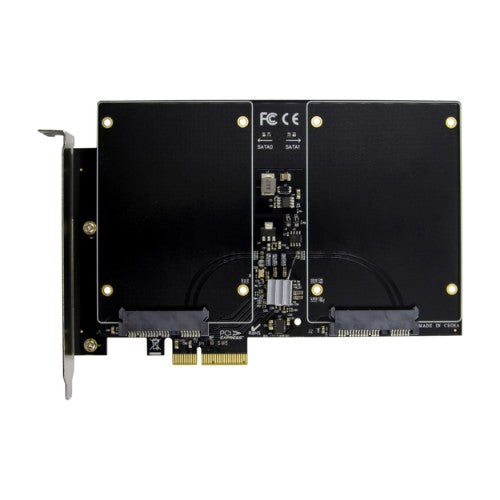

ProXtend PCIe SATA III 6G 2-Channel SSD RAID Card

PCIe SATA III 6G 2-Channel SSD RAID Card

Description

The ProXtend PX-SR-10257 PCIe 2-Port raid card has two SATA GEN III 6Gb/s channels host controllers within a 2.5-inch full-size SSD/HDD interface, bringing server-class features to the desktop. This board enables the use of the industry’s newest and fastest hard drives at 6Gb/s while providing backwards compatibility to legacy SATA 1.5Gb/s or 3Gb/s drives. It will enhance system performance for every type of computer user. Each PCI-Express 2.0 lane provides up to 500MB/S of throughput. Using the RAID function, the SATA drives attached to this controller can be easily configured as 2 individual ports with NO RAID or with RAID0, RAID1 or Hyper Duo.

ProXtend PCIe SSD Adapter Cards offer 100% compatibility with all major vendors, delivering performance and functionality for the most demanding server and desktop applications.

Specifications

Ports & interfaces
Internal	Yes
Output interface	SATA
SATA revision	3.0
Internal SATA ports quantity	2
Host interface	PCIe
NVMe	No
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCIe 2.0
Technical details
Plug and Play	Yes
Purpose	PC
Compliance certificates	RoHS
Performance
Plug and Play	Yes
Purpose	PC
Product colour	Silver, Black
NVMe	No
Harmonized System (HS) code	84733020
Certificates
Certification	CE,ROHS
Colour
Product colour	Silver, Black
Design
Country of origin	China
Purpose	PC
Internal	Yes
Product colour	Silver, Black
Certification	CE,ROHS
Features
Plug and Play	Yes
Harmonized System (HS) code	84733020
NVMe	No
System requirements
Windows operating systems supported	Windows XP, Windows Vista, Windows 7, Windows 8
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2
Packaging data
Manual	Yes
Logistics data
Harmonized System (HS) code	84733020
Packaging content
Manual	Yes
