Description

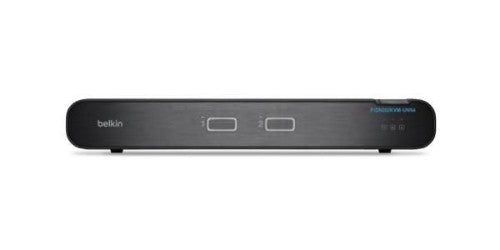

Universal Desktop SKVM, 2 port dual head, USB, audio, DisplayPort, HDMI, 4K@60hz
Description
Specifications
| Ports & interfaces | |
|---|---|

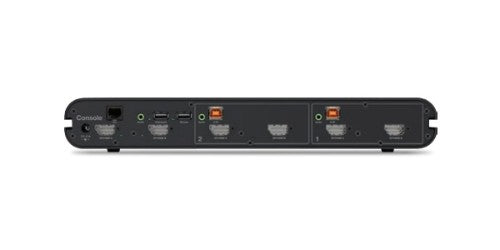

| Console ports | 3.5mm headphone, DisplayPort, HDMI, RJ–45, USB A |
| USB connector type | USB Type-B |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| HDMI version | 2.0 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI/DisplayPort |
| Audio connections | Yes |
| HDMI ports quantity | 2 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Certification | FCC Class B UL CE RoHS ICES RCM |
| Housing material | Aluminium, Metal |
| Power | |
| Input current | 2.5 A |
| Power source | AC |
| External power adapter | Yes |
| Input voltage | 100 - 240, 12 V |
| Video | |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 317.5 mm |
| Depth | 162.6 mm |
| Height | 63.5 mm |
| Weight | 2.2 kg |
| Packaging content | |
| Cables included | AC |
| Manual | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | FCC Class B UL CE RoHS ICES RCM |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
