Description

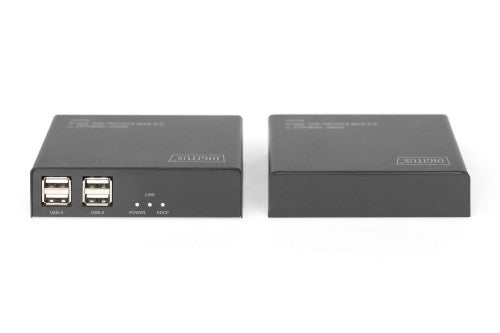

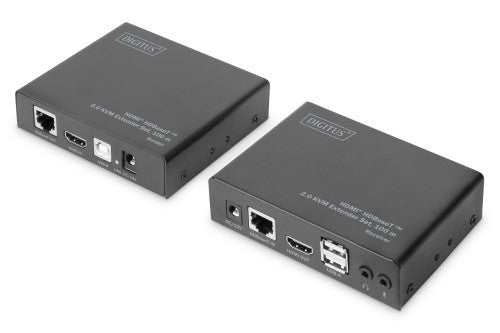

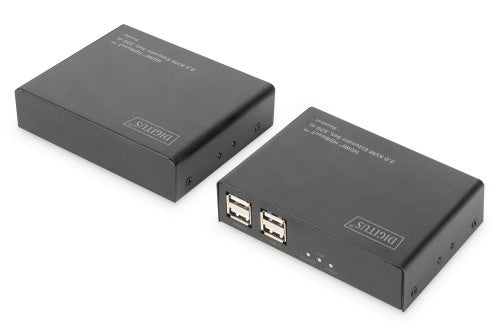

HDBaseT 2.0 HDMI KVM Extender Set 4K/60Hz (4:2:0), 6x USB
- Transmit high-resolution multimedia content without loss of quality and uncompressed over lengths of up to 100 m
- Saves unnecessary cabling and bundles multimedia and many other signals in one network cable
- Forwarding without loss of quality through transmission of uncompressed data
- Supports HDBaseT™ 2.0 via CAT6A/7/8 cable up to 100 m
- Supports transmission of video, audio + USB signals via network cable
- Supports Full 3D, 1080p, 4K@60Hz (YUV 4:2:0)
- Supports USB 2.0 features (HighSpeed) for up to 6 USB devices
- Supports CEC (Consumer electronics control)
- Supports uncompressed audio transmission (LPCM7.1)
- Supports compressed audio transmission (DTS, Dolby Digital incl. DTS-HD Master Audio™ and Dolby TrueHD)
With the DIGITUS® HDMI HDBaseT™ 2.0 KVM Extender Set, you can control your source device from up to 100 meters away over a single CAT6A/7/8 cable connection, with uncompressed 4K HDMI™ video content and access to up to 6 connected USB devices. This extender has been specifically designed for a smooth and straightforward setup. The HDBaseT™ 2.0 technology enables installation via a single cable, avoiding the hassle of running multiple cables. The typical use case would be a cross-room solution, for example, where the source device and display can be up to 100 meters apart. You can use up to 6 USB devices connected to the transmitter module from the receiver and of course enjoy video and audio content. A very simple KVM functionality in terms of installation and use. Instead of multiple cables, lay just one RJ45 network cable or use the existing network connections (point-to-point) with the HDMI HDBaseT™ 2.0 Extender from DIGITUS®.
Key Features

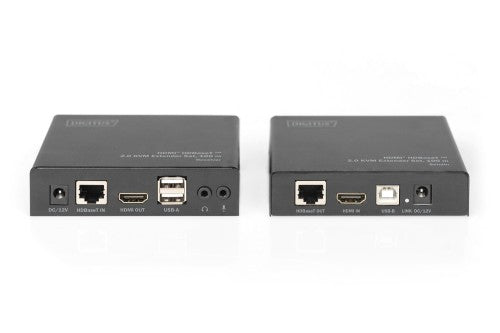

- Inputs: 1 x HDMI™ , 1 x USB B
- Outputs: 1 x HDMI™ , 6 x USB A
- HDMI bandwidth: 10.2 Gbps
- HDCP version: 2.2
- HDMI version: 1.4
- Color depth: 36Bit total (12Bit per channel)
- Uses HDBaseT™ 2.0 technology (VS2310)
- Supports Full 3D, 1080p, 4K@30/60Hz
- Supports sub-sampling: 4:2:0
- Supports HDBaseT™ 2.0 via CAT6A/7/8 cable up to 100 m
- Supports USB 2.0 features (Hi-Speed)
- Supports CEC (Consumer Electronics Control)
- Supports uncompressed audio transmission (LPCM7.1)
- Supports compressed audio transmission (DTS, Dolby Digital incl. DTS-HD Master Audio™ and Dolby TrueHD)
- Supported resolutions (interlaced): 480i, 576i, 1080i
- Supported resolutions (progressive): 480p, 576p, 720p, 1080p, 4K (4096x2160@24Hz, 3840x2160@60/30Hz)
- Operating temperature: 0°C to 40°C
- Operating humidity: 5% to 90% RH (non-condensing)
- Power consumption transmitter: 3 W
- Receiver power consumption: 7 W
- Power supply unit: Input: 100 - 240 V AC / 0.65 A - Output: 12 V / 2 A
- Power supply cable length: 1.2 m
- Compression: HDBaseT 2.0
- Transmitter dimensions: W 13 x D 10 x H 2.5 cm
- Receiver dimensions: W 11 x D 8 x H 2.8 cm
- Weight: 212 g (transmitter), 240 g (receiver)
- Housing: Metal
Description
Use an RJ45 network cable to transmit high-resolution, uncompressed audio/video content, USB signals and data- Transmit high-resolution multimedia content without loss of quality and uncompressed over lengths of up to 100 m
- Saves unnecessary cabling and bundles multimedia and many other signals in one network cable
- Forwarding without loss of quality through transmission of uncompressed data
- Supports HDBaseT™ 2.0 via CAT6A/7/8 cable up to 100 m
- Supports transmission of video, audio + USB signals via network cable
- Supports Full 3D, 1080p, 4K@60Hz (YUV 4:2:0)
- Supports USB 2.0 features (HighSpeed) for up to 6 USB devices
- Supports CEC (Consumer electronics control)
- Supports uncompressed audio transmission (LPCM7.1)
- Supports compressed audio transmission (DTS, Dolby Digital incl. DTS-HD Master Audio™ and Dolby TrueHD)
With the DIGITUS® HDMI HDBaseT™ 2.0 KVM Extender Set, you can control your source device from up to 100 meters away over a single CAT6A/7/8 cable connection, with uncompressed 4K HDMI™ video content and access to up to 6 connected USB devices. This extender has been specifically designed for a smooth and straightforward setup. The HDBaseT™ 2.0 technology enables installation via a single cable, avoiding the hassle of running multiple cables. The typical use case would be a cross-room solution, for example, where the source device and display can be up to 100 meters apart. You can use up to 6 USB devices connected to the transmitter module from the receiver and of course enjoy video and audio content. A very simple KVM functionality in terms of installation and use. Instead of multiple cables, lay just one RJ45 network cable or use the existing network connections (point-to-point) with the HDMI HDBaseT™ 2.0 Extender from DIGITUS®.
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5e |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Material | Metal |
| Country of origin | China |
| Colour depth | 36 bit |
| USB 2.0 ports quantity | 6 |
| Transmitter | |
| Transmitter video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 6 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
| Power consumption (transmitter) (max) | 3 W |
| Power consumption (receiver) (max) | 7 W |
| Input current | 0.65 A |
| Weight & dimensions | |
| Transmitter width | 13 cm |
| Transmitter depth | 1 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 212 g |
| Receiver width | 11 cm |
| Receiver depth | 8 cm |
| Receiver height | 2.8 cm |
| Receiver weight | 240 g |
| Package width | 196 mm |
| Package depth | 243 mm |
| Package weight | 975 g |
| Packaging data | |
| Package width | 196 mm |
| Package depth | 243 mm |
| Package weight | 975 g |
| Cables included | USB |
| Packaging content | |
| Cables included | USB |
| Mounting bracket(s) included | Yes |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Maximum resolution | 3840 x 2160 pixels |
| Package volume | 2857.68 cm³ |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 85176200 |
| Harmonized System (HS) code | 84733080 |
