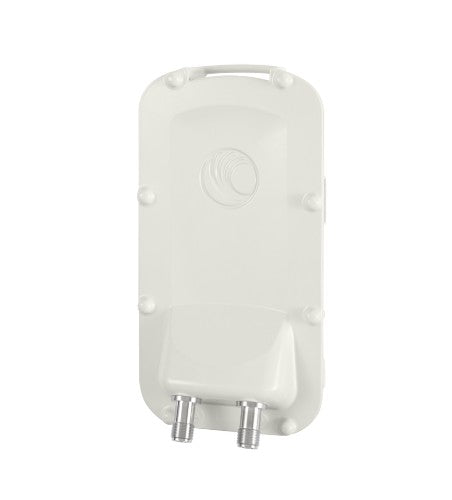

Cambium Networks PMP 450IC, 1000 Mbit/s, 4.9 - 5.925 GHz, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3at, 4 user(s), 20 MHz, OFDM
Description
Cambium Networks PMP 450IC. Maximum data transfer rate: 1000 Mbit/s, Frequency band: 4.9 - 5.925 GHz, Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3at. Security algorithms: 128-bit AES, FIPS 197. Management protocols: HTTP, HTTPS, Telnet, FTP, SNMP v2/v3, Supported protocols: IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP. AC input voltage: 48 - 59 V, Power consumption (typical): 18 W, Power consumption (max): 45 W. Placement: Pole, Product colour: White, International Protection (IP) code: IP67
Specifications
| Data transmission |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| Performance |
|---|
| 2.4 GHz |
No |
| 5 GHz |
No |
| Spread spectrum method |
OFDM |
| Frequency band |
4.9 - 5.925 GHz |
| Number of users |
4 user(s) |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3at |
| Channel bandwidth |
20 MHz |
| Certification |
Industry Canada, FCC ID |
| Maximum data transfer rate |
1000 Mbit/s |
| MIMO |
Yes |
| Wireless LAN features |
|---|
| Frequency band |
4.9 - 5.925 GHz |
| Network |
|---|
| Internal |
No |
| Spread spectrum method |
OFDM |
| Number of users |
4 user(s) |
| Networking standards |
IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3at |
| Bandwidth |
|---|
| Channel bandwidth |
20 MHz |
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Certificates |
|---|
| Certification |
Industry Canada, FCC ID |
| Features |
|---|
| 2.4 GHz |
No |
| 5 GHz |
No |
| Spread spectrum method |
OFDM |
| Frequency band |
4.9 - 5.925 GHz |
| Number of users |
4 user(s) |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3at |
| Channel bandwidth |
20 MHz |
| Maximum data transfer rate |
1000 Mbit/s |
| MIMO |
Yes |
| Security |
|---|
| Security algorithms |
128-bit AES, FIPS 197 |
| Protocols |
|---|
| Management protocols |
HTTP, HTTPS, Telnet, FTP, SNMP v2/v3 |
| Supported protocols |
IPv4, UDP, TCP, IP,
ICMP, Telnet, SNMP, HTTP, FTP |
| Power |
|---|
| Power consumption (max) |
45 W |
| Power consumption (typical) |
18 W |
| Power over Ethernet (PoE) |
Yes |
| AC input voltage |
48 - 59 V |
| Design |
|---|
| International Protection (IP) code |
IP67 |
| Placement |
Pole |
| Product colour |
White |
| Internal |
No |
| Certification |
Industry Canada, FCC ID |
| Antenna |
|---|
| Antenna connector type |
N-type |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Weight & dimensions |
|---|
| Width |
135 mm |
| Depth |
64 mm |
| Weight |
2 kg |
| Height |
260 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
-40 - 60 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
