Description
1/2" CMOS, 1920x1080px, 60 fps, PTZ, 100-240V, 51W
Key Features
- 1/2" sensor with 31x optical zoom; Autotracking 2 and orientation aid; IR illumination, D/N functionality, Lightfinder 2.0; Laser focus for precise focus with quick-zoom <1 sec zoom speed; TPM, FIPS 140-2 level 2 certified
Description

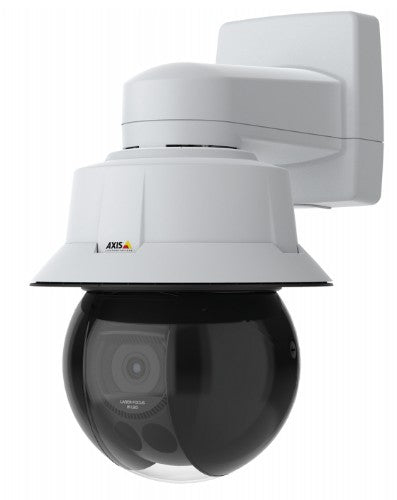

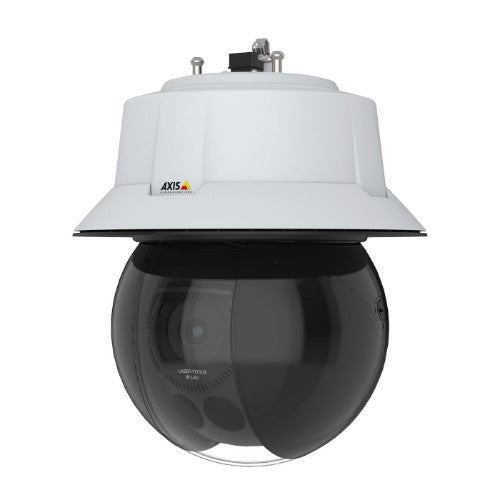

AXIS Q6315-LE is a high-speed PTZ camera offering HDTV 1080p resolution. It features IR illumination and day/night functionality for surveillance in pitch darkness. With 31x optical zoom, laser focus for precise focus and quick-zoom functionality, it allows you to easily follow fast-moving objects. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image. Furthermore, the TPM module ensures secure storage of all cryptographic keys and certificates.Specifications
| Performance | |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, IEC/EN 62471 risk group 2, IEC 60825-1 Class 1, IEC/EN 62262 IK10, IEC/EN 60529 IP66, NEMA 250, Type 4X, NEMA TS 2 (2.2.7–2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207 (Method B) |
| Design | |
| IK code | IK10 |
| Fog proof | Yes |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Wall |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera | |
| Minimum illumination | 0.001 lx |
| Tilt angle range | -90 - 20° |
| Tilt speed | 550 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 550 °/sec |
| Camera shutter speed | 111000 - 1/2 s |
| Lens viewing angle, horizontal | 60.6° |
| Lens viewing angle, vertical | 36.5° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2 mm (1 / 2") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 4.6 |
| Auto focus | Yes |
| Minimum aperture number | 1.36 |
| Zoom capability | Yes |
| Optical zoom | 31x |
| Digital zoom | 12x |
| Focal length range | 6.91 - 214.64 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 300 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Image quality adjustment | Brightness, Colour depth, Sharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 180, 1920 x 1080 (HD 1080) |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Network | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3bt |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, RTCP, DHCP, SOCKS, SSH, NTCIP, MQTT v3.1.1, Syslog |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Security algorithms | EAP-TLS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Digest authentication | Yes |
| Management features | |
| Behavior analysis | Line crossing detection |
| Power | |
| Power source type | AC |
| Power consumption (max) | 51 W |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 17 W |
| Certificates | |
| Certification | 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, IEC/EN 62471 risk group 2, IEC 60825-1 Class 1, IEC/EN 62262 IK10, IEC/EN 60529 IP66, NEMA 250, Type 4X, NEMA TS 2 (2.2.7–2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207 (Method B) |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 261 mm |
| Diameter | 23.9 cm |
| Weight | 4.8 kg |
| Technical details | |
| Doesn't contain | PVC |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
