Gigabit Ethernet, 56V, 30W, Black
Key Features
- 24 V AC and 10-28 V DC input; Compatible with Axis PoE devices; Flexible installation; IEEE 802.3af and 802.3at output; Plug-and-play
Description

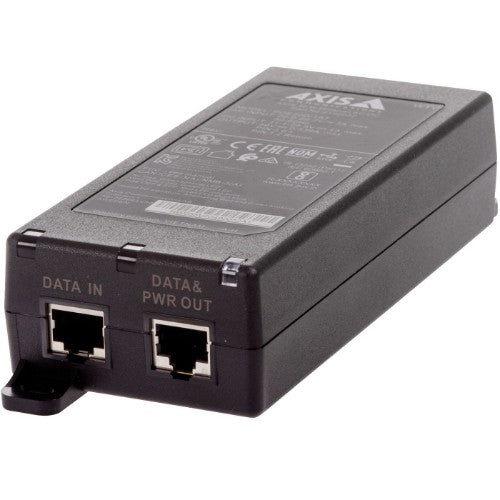

AXIS 30 W Midspan AC/DC is for installations where mains power is not an option. With a power input of either 10-28 V DC or 24 V AC, it can deliver up to IEEE 802.3at (30 W) to your network device. 24 V AC can be needed in harsh environments where new cabling or installations are not possible and you need to retrofit box, dome or PTZ cameras. 10-28 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it.
Specifications
| Network |
|---|
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Power over Ethernet (PoE) voltage |
56 V |
| Features |
|---|
| Wall mountable |
Yes |
| Product colour |
Black |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| LED indicators |
Yes |
| Certification |
IS 13252, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27, 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, EAC |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| Power |
|---|
| Output power |
30 W |
| Power over Ethernet (PoE) voltage |
56 V |
| Input voltage |
10-18 V |
| Technical details |
|---|
| Input voltage |
10-18 V |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Doesn't contain |
PVC |
| Harmonized System (HS) code |
85044095 |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 75 °C |
| Operating temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Weight |
233 g |
| Width |
65 mm |
| Depth |
164 mm |
| Height |
37 mm |
| Certificates |
|---|
| Certification |
IS 13252, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27, 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, EAC |
| Indication |
|---|
| LED indicators |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85044095 |
