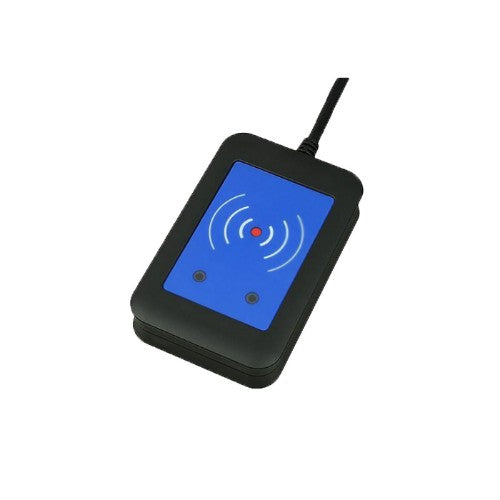

Axis 01527-001 RFID reader USB Black

External Secured RFID Card Reader 125kHz + 13.56MHz with NFC (USB)

Key Features

• USB for easy connection
• Small for easy placement
• Multi card system support
• Support for HID® iClass®

Description

Desktop USB reader from 2N for Axis body worn and access control systems

External secured RFID card reader from 2N for connection to the Axis access control and body worn systems using the USB interface.

For bodyworn systems, the self-assign functionality lets the camera user assign and pick up any available body worn camera in the system using an RFID card. This feature allows different work shifts to share cameras in a fast and easy way.

For access control card enrollment, the reader lets the operator easily add new cardholders or visitors to the system and assign cards. Suitable for enrollment of 125kHz and 13.56MHz RFID cards.

Supported cards:

ISO/IEC 14443A Mifare Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, Ultralight, Ultralight C
ISO/IEC 14443B CEPAS, HID iCLASS (reads CSN and also PACs ID)
JIS X 6319 Felica

Reader type: Multitech TWN4.

Specifications

Technical details
Interface	USB
Frequency	125 kHz
Product colour	Black
Operating frequency	13.56 MHz
Harmonized System (HS) code	84719000
Logistics data
Harmonized System (HS) code	84719000
