Description
1/1.8", RGB CMOS, 1.56 mm, F2.0, 1/16000 - 1 s, 1024 MB RAM, 512 MB Flash, H.264/H.265, 2560 x 1920
Key Features
- Built-in microphones; Complete 180° and 360° overview; Digital PTZ and dewarped views; Enhanced security features; Lightfinder, Forensic WDR and Optimized IR
Description

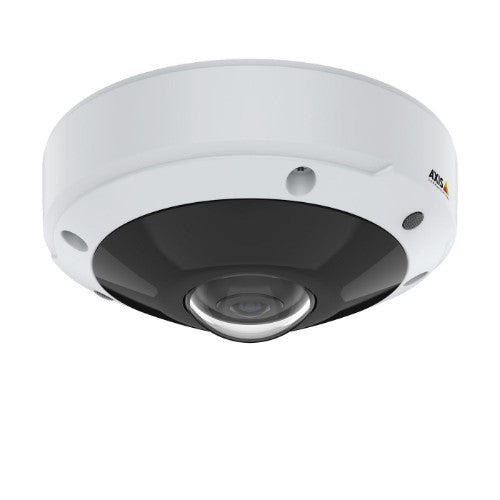

With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. It features two built-in microphones allowing for audio surveillance and detection. This compact mini dome offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR for surveillance in pitch darkness.Specifications
| Performance | |
|---|---|
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Dynamic range | 120 dB |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera | |
| Angle of rotation | 180° |
| Camera shutter speed | 1/16000 - 1 s |
| Lens viewing angle, horizontal | 183° |
| Lens viewing angle, vertical | 183° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Lens system | |
| Number of lenses | 1 |
| Fixed focus | Yes |
| Zoom capability | Yes |
| Focus adjustment | 2.0 |
| Focal length range | 1.56 mm |
| Night vision | |
| Night vision | Yes |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Text caption overlay | Yes |
| Video compression formats | H.264, H.265, M-JPEG, MPEG4 |
| Maximum resolution | 2560 x 1920 pixels |
| Supported graphics resolutions | 256 x 144, 384 x 288, 1920 x 1440, 2560 x 1440, 2560 x 1920 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Video intelligence analytic | Yes |
| Thermal frame rate (NTSC) | 50 - 60 Hz |
| Video recording | Yes |
| Audio | |
| Audio input channels | 2.0 channels |
| Sample rate | 48 kHz |
| Built-in microphone | Yes |
| Audio system | 1-way |
| Audio formats supported | G.711, G.726, LC-AAC, LPCM, OPUS |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN | Yes |
| Supported network protocols | IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT v3.1.1, Syslog |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | E-mail, Text alert message |
| Security algorithms | EAP-TLS, HTTPS |
| HTTPS encryption | Yes |
| Pixel counter | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 11.9 W |
| Power consumption (Power over Ethernet (PoE)) | 8 W |
| Power consumption (typical) | 8 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 66 mm |
| Diameter | 14.9 cm |
| Weight | 700 g |
| Packaging content | |
| Number of cameras | 1 |
| Mounting brackets included | Yes |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG, MPEG4 |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
