Description

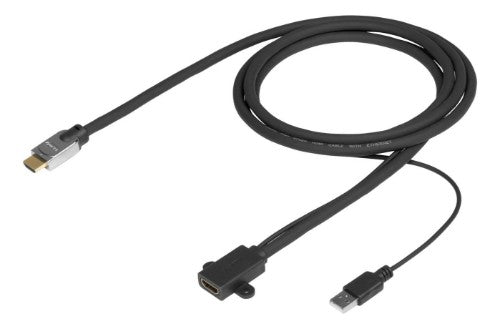

Pro HDMI Cable 5m M/F w/usb power
High Performance and High Speed HDMI 2.0 18Gbit Cable with Ethernet and Metal Housing.
Supports Resolutions up to 4K@60Hz with HDCP 2.2, CEC and ARC
Ultra flexible.
Unique design features made for Professional AV environments.
USB cable for power injection (fiber cables).

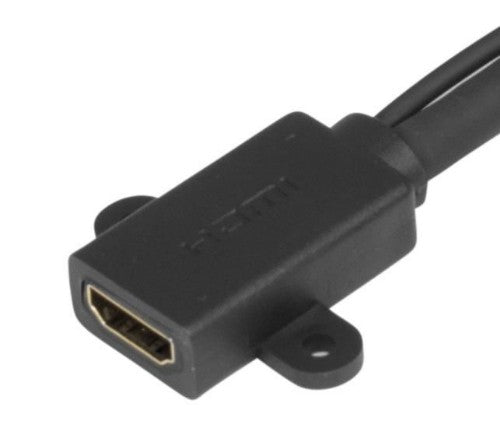

HDMI female end has ears for securing and mounting the cable e.g under a table.
Key Features
- All HDMI resolutions up to 4K (4096x2160p @60Hz), including 3D video
- Support sample rate 4:4:4
- Transfer speed 18 Gbit/s
- HDCP 2.2
- Supports Deep Color, up to 16-bits per channel, including x.v.Color standard
- Supports the 21:9 cinema aspect ratio
- Supports SA-CD, DVD-Audio, DTS-HD Master Audio, Dolby TrueHD, and other highde inition audio standards
- Audio Return Channel
- Auto Lip Sync
- Supports up to 32 audio channels and a 1536 kHz audio sampling rate
- Dynamic sound synchronization
- Supports extended CEC (Consumer Electronics Control) commands and functions
- the HDMI Ethernet Channel, and the Audio Return Channel features
- Fully assembled with 19 pins connected
- High quality HDMI A connector, 15um gold min. in contact area for high reliability
- and professional use
- 99,9% pure copper wires for lossless picture transmission
- Triple shielded cable and extra shielding in the connector
- High Flexibility ensuring small bending radius
Description
High Performance and High Speed HDMI 2.0 18Gbit Cable with Ethernet and Metal Housing.
Supports Resolutions up to 4K@60Hz with HDCP 2.2, CEC and ARC
Ultra flexible.
Unique design features made for Professional AV environments.
USB cable for power injection (fiber cables).
HDMI female end has ears for securing and mounting the cable e.g under a table.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 602 Hz |
| Dolby technologies | DTS-HD Master Audio |
| Colour depth | 16 bit |
| HDMI Ethernet channel | Yes |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black |
| Cable length | 5 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| Cable material | Copper |
| AWG wire size | 28 |
| HDMI version | 2.0 |
| Data transfer rate | 18 Gbit/s |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| HDCP | Yes |
| Plug and Play | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Quantity per pack | 1 pc(s) |
| Cable jacket material | Polyvinyl chloride (PVC) |
| HDCP version | 2.2 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Package weight | 390 g |
| Weight | 388 g |
| Package width | 164 mm |
| Package depth | 146 mm |
| Package height | 61 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
