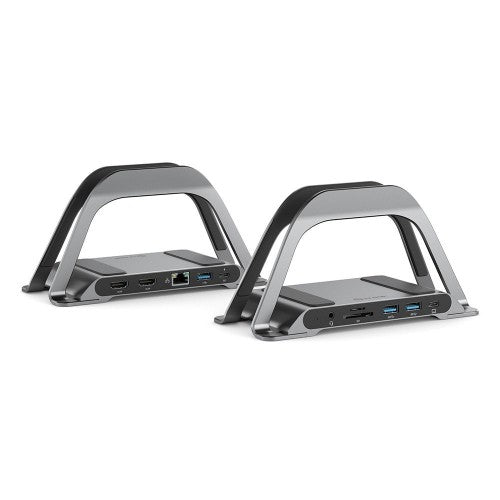

Bolt Plus USB-C Docking Station with stand
Key Features
- Compatible with all computers with a USB-C port
- Recommended for use with Windows computers (Windows 7 and above)
- When used with Apple Mac computers display outputs can be mirrored or extended
Description
Expands the functionality of your USB-C Laptop/ MacBook by providing additional ports and has an extended bracket to clamp and store your Laptop or MacBook device, which keep your desk organised when in use.
Comprehensive Connectivity: 10-in-1 Hub

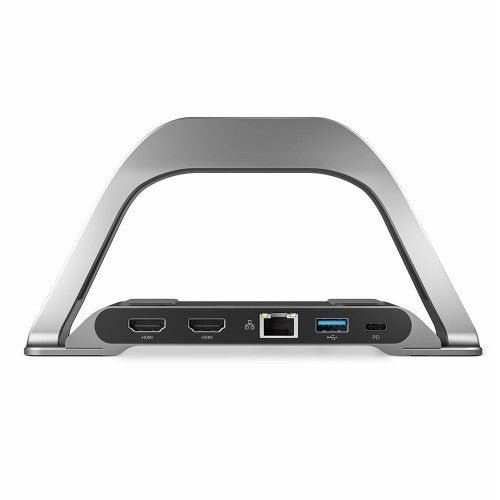

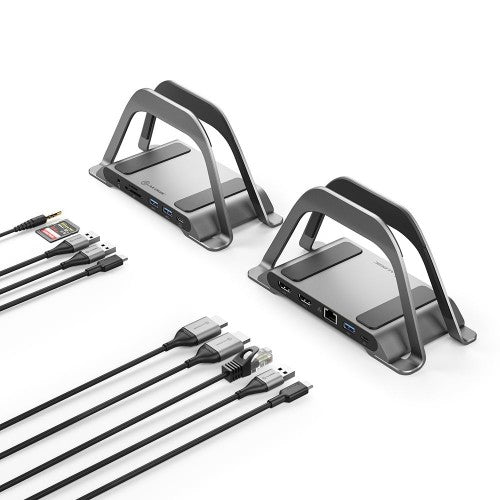

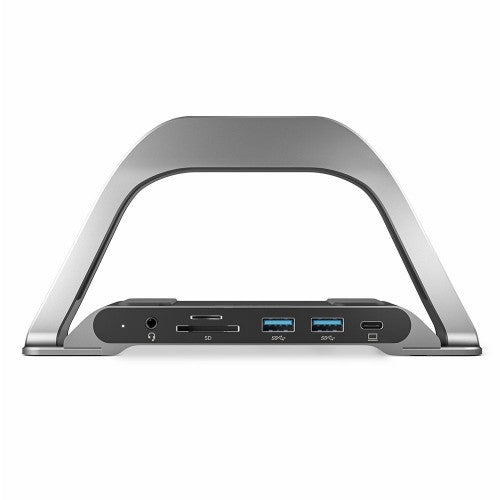

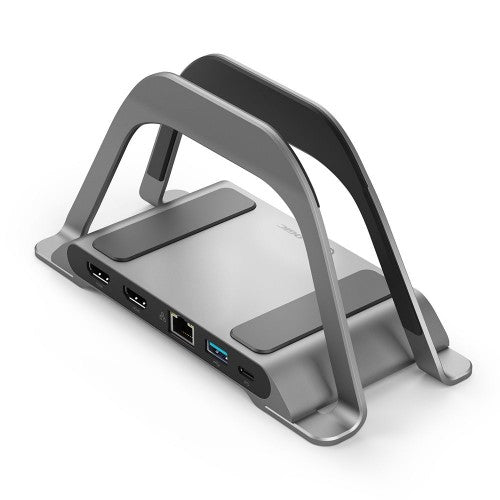

The hub easily expands the functionality of your USB-C Laptop/ MacBook by providing additional ports such as 2 x HDMI 4K@30Hz, 1 x USB-C (100W PD), 1 x Micro SD and SD Card Reader, 2 x USB-A with support for speeds up to 5Gbps (USB 3.1 Gen 1), a single USB-A (USB 2.0), USB-C (connected to the host), 3.5mm Audio Jack and a Gigabit ethernet port for a stable connection.

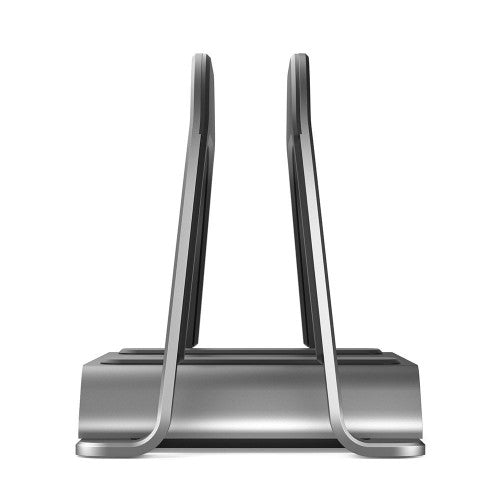

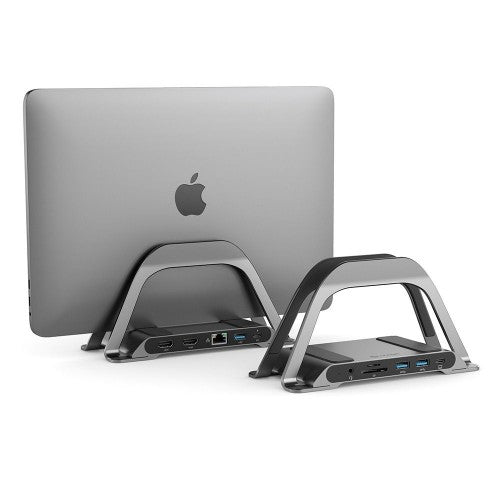

It has an extended bracket to clamp and store your Laptop or MacBook device, which keep your desk organised when in use.
Power Delivery Technology – 100W Charging
The docking station uses the latest Power Delivery Technology, that allows upstream charging of your USB-C enabled laptop or MacBook devices with up 100W of power while also transferring Video, Audio, Ethernet, and Data, all at the same time.
Dual Display – Up to 4K
The 10-in-1 dock can support up to two external displays connected to the 2 x HDMI outputs*. The dock supports extension or mirroring across the three external displays when used with a Windows Laptop or MacBook device.
* The quantity and resolution of video outputs supported is dependent on the capabilities of the computer used with the docking station. Refer to the resolution support table for details on the output capabilities of computers based on their specifications.
Plug and Play
To make the user experience simple and efficient, the Bolt Plus 10-in-1 Hub is equipped with a Plug and Play design, this feature eliminates the need to install any additional software or driver, all you need to do is simply plug the hub, and the device is ready to use.
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
2 |
| Connectivity technology |
Wired |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
100 W |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
4096 x 2160 pixels |
| Product colour |
Grey |
| Card reader integrated |
Yes |
| Plug and Play |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Certification |
FCC, CE, RoHS |
| Housing material |
Aluminium |
| Maximum refresh rate |
30 Hz |
| Technical details |
|---|
| Product colour |
Grey |
| Plug and Play |
Yes |
| Storage |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Weight & dimensions |
|---|
| Weight |
328 g |
| Width |
190 mm |
| Depth |
90 mm |
| Height |
26.5 mm |
| Design |
|---|
| Product colour |
Grey |
| Certification |
FCC, CE, RoHS |
| Packaging content |
|---|
| Stand included |
Yes |
| Manual |
Yes |
| Cables included |
USB Type-C to USB Type-C |
| Certificates |
|---|
| Certification |
FCC, CE, RoHS |
