Description
AC1200, 2.4 + 5 GHz, 300 + 867 Mbps, 2x Gigabit LAN, 90.7 x 90.7 x 190 mm, 3-pack
Whole Home Hybrid Mesh Wi-Fi System
AC1200 + AV1000

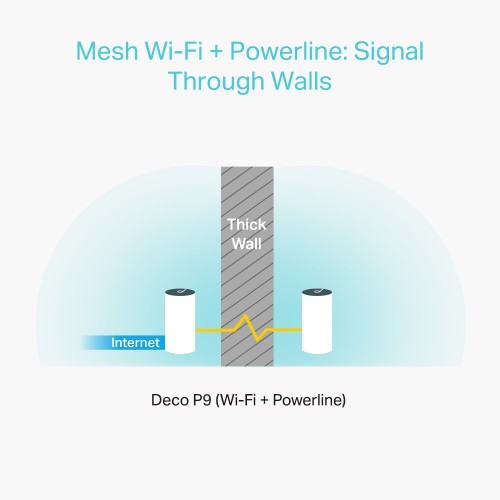

Mesh Wi-Fi + Powerline: Signal Through Walls
Deco P9 combines dual-band Wi-Fi and powerline to establish a stronger mesh network.
Powerline technology uses your home’s electrical wiring to create stronger connections between Deco units, reducing the impact of walls and other obstacles on signal and providing even faster network speeds and truly seamless coverage.
Boosted Speeds: Wi-Fi + Powerline Hybrid Bandwidth
Powerline and wireless connections work together to transmit data between Deco units. The total network speed is greatly improved compared with using Wi-Fi only.

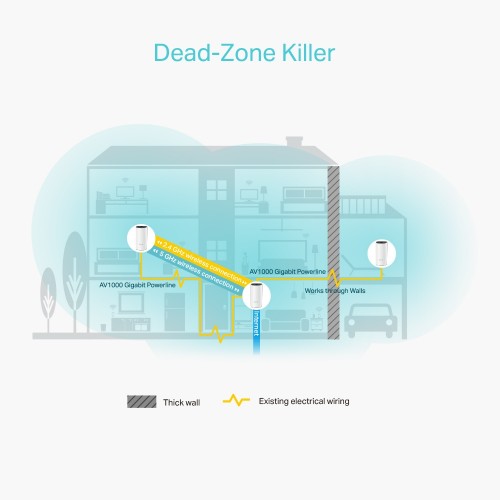

Dead-Zone Killer
The hybrid whole-home system delivers extended coverage up to 6,000 ft2 / 560 m2 with the help of the combination of dual-band Wi-Fi and powerline. Eliminate weak signal areas with whole-home Wi-Fi and no more searching around for a stable connection.
Seamless Roaming with One Wi-Fi Name
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.
No More Buffering
Network speeds three times faster than previous generation routers, thanks to 802.11ac wireless technology, make Deco capable of providing a lag-free connection to up to 100 devices.
Robust Parental Controls
Simple, intuitive parental controls make it easy to keep your children safe while they’re online.
All Decos Work Together
Deco P9 is compatible with other Deco models to form Mesh network. Expand Mesh Wi-Fi coverage anytime by simply adding more Decos.
Description
Fast. Stable. Everywhere.Whole Home Hybrid Mesh Wi-Fi System
AC1200 + AV1000
Mesh Wi-Fi + Powerline: Signal Through Walls
Deco P9 combines dual-band Wi-Fi and powerline to establish a stronger mesh network.
Powerline technology uses your home’s electrical wiring to create stronger connections between Deco units, reducing the impact of walls and other obstacles on signal and providing even faster network speeds and truly seamless coverage.
Boosted Speeds: Wi-Fi + Powerline Hybrid Bandwidth
Powerline and wireless connections work together to transmit data between Deco units. The total network speed is greatly improved compared with using Wi-Fi only.
Dead-Zone Killer
The hybrid whole-home system delivers extended coverage up to 6,000 ft2 / 560 m2 with the help of the combination of dual-band Wi-Fi and powerline. Eliminate weak signal areas with whole-home Wi-Fi and no more searching around for a stable connection.
Seamless Roaming with One Wi-Fi Name
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.
No More Buffering
Network speeds three times faster than previous generation routers, thanks to 802.11ac wireless technology, make Deco capable of providing a lag-free connection to up to 100 devices.
Robust Parental Controls
Simple, intuitive parental controls make it easy to keep your children safe while they’re online.
All Decos Work Together
Deco P9 is compatible with other Deco models to form Mesh network. Expand Mesh Wi-Fi coverage anytime by simply adding more Decos.
Specifications
| Design | |
|---|---|
| Product colour | White |
| LED indicators | Power |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Reset button | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Certification | FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC |
| Product type | Mesh system |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms | WPA-PSK, WPA2-PSK |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Static IP | Yes |
| Dynamic IP | Yes |
| Guest access | Yes |
| Dynamic DNS (DDNS) | Yes |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| WLAN data transfer rate (max) | 1167 Mbit/s |
| Features | |
| DHCP client | Yes |
| DHCP server | Yes |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | SPI |
| BeamForming | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Parental control | Yes |
| MIMO | Yes |
| MU-MIMO technology | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Power | |
| AC adapter input current | 0.5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC |
| Compliance certificates | RoHS, CE |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 190 mm |
| Depth | 90.7 mm |
| Height | 90.7 mm |
| Package width | 353 mm |
| Package depth | 235 mm |
| Package height | 160 mm |
| Package weight | 2.32 kg |
| Packaging content | |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Number of products included | 3 pc(s) |
| Number of units included | 3 pc(s) |
| Packaging data | |
| Package width | 353 mm |
| Package depth | 235 mm |
| Package height | 160 mm |
| Package weight | 2.32 kg |
| Technical details | |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 85171800 |
| Compliance certificates | RoHS, CE |
| Logistics data | |
| Harmonized System (HS) code | 85171800 |
