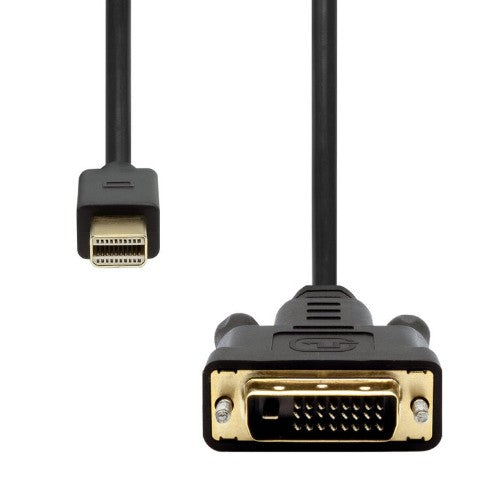

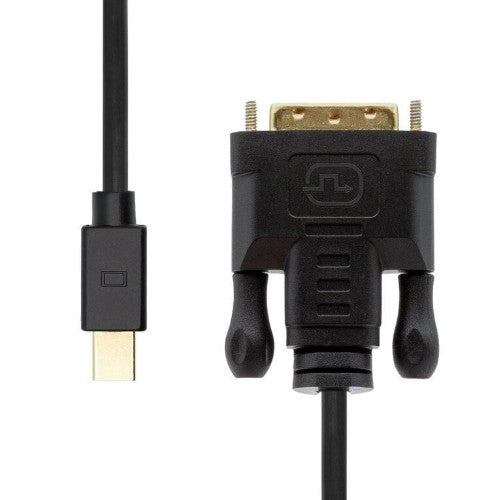

Mini Displayport to DVI-D 24+1 1M
Description
ProXtend Mini DisplayPort to DVI-D 24+1 cables support a maximum resolution of 1080p at 60Hz. The cables are capable of transmitting video data between your device and a display. With its latching connector, the DisplayPort ensures that you always have a secure and reliable connection.
Specifications
| Features |
|---|
| Country of origin |
China |
| Product colour |
Black |
| Number of shielding layers |
3 |
| Cable length |
1 m |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
DVI-D |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| Cable material |
Copper |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
32 |
| Data transfer rate |
5 Gbit/s |
| Maximum resolution |
1920 x 1200 pixels |
| Supported graphics resolutions |
1920 x 1200 (WUXGA), 1920 x 1080 (HD 1080), 1280 x 720 (HD 720) |
| Supported video modes |
720p, 1080i, 1080p |
| HDCP |
No |
| Plug and Play |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
60 Hz |
| DisplayPort Content Protection (DPCP) |
Yes |
| Latching connectors |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Technical details |
|---|
| Country of origin |
China |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Cable diameter |
4.8 mm |
| Weight |
69 g |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
