Description

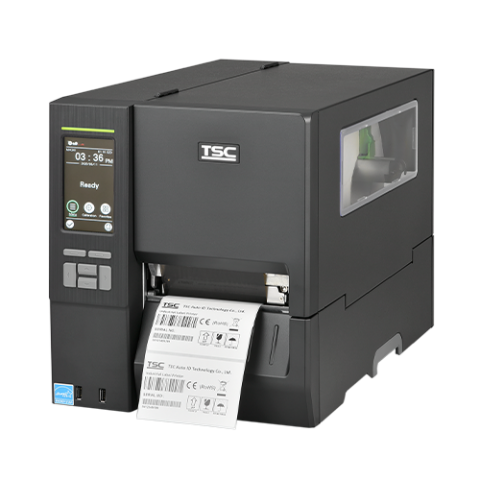

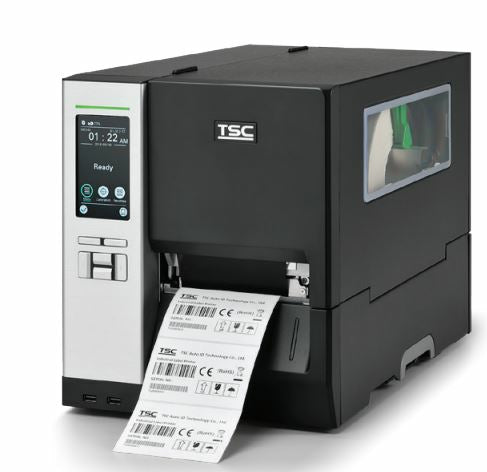

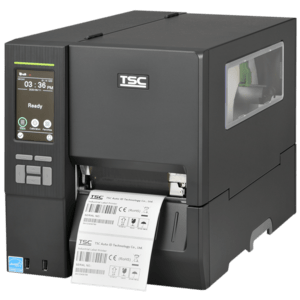

MH641T, 24 dots/mm (600 DPI), Disp., RTC, USB, RS232, Ethernet
This series features our flagship industrial barcode label printer with premium printhead technology, fast processor, and memory capacity to print high quality labels at the fastest speeds.
Description
MH Series 4-Inch Performance Industrial PrintersThis series features our flagship industrial barcode label printer with premium printhead technology, fast processor, and memory capacity to print high quality labels at the fastest speeds.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 600 x 600 DPI |
| Maximum printing width | 10.4 cm |
| Printing | |
| Rotated printing | Yes |
| Colour | No |
| Print speed | 152 mm/sec |
| Maximum resolution | 600 x 600 DPI |
| Maximum printing width | 10.4 cm |
| Print technology | Direct thermal / Thermal transfer |
| Display | |
| Display diagonal | 10.9 cm (4.3") |
| Colour display | Yes |
| Display resolution | 480 x 272 pixels |
| Backlight display | Yes |
| Display | LCD |
| Network | |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Paper handling | |
| Supported paper width | 104 mm |
| Ribbon width | 11.4 cm |
| Ribbon length | 600 m |
| Media thickness | 0.06 - 0.28 mm |
| Maximum media length | 2.54 m |
| Core diameter | 7.62 cm |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Built-in barcodes | 1D, 2D |
| Number of fonts | 8 |
| Ribbon width | 11.4 cm |
| Ribbon length | 600 m |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Built-in processor | Yes |
| Certification | FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜV/safety, CCC, KC, BIS, ENERGY STAR |
| Page description languages | DPL, EPL, ZPL, ZPL II |
| Design | |
| Display diagonal | 10.9 cm (4.3") |
| Colour display | Yes |
| Display resolution | 480 x 272 pixels |
| Backlight display | Yes |
| Display | LCD |
| Product colour | Black, Grey |
| Control type | Buttons, Touch |
| Built-in display | Yes |
| Certification | FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜV/safety, CCC, KC, BIS, ENERGY STAR |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Technical details | |
| Product colour | Black, Grey |
| Built-in barcodes | 1D, 2D |
| Number of fonts | 8 |
| Ribbon width | 11.4 cm |
| Ribbon length | 600 m |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜV/safety, CCC, KC, BIS, ENERGY STAR |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 25 - 85% |
| Weight & dimensions | |
| Width | 276 mm |
| Depth | 502 mm |
| Height | 326 mm |
| Weight | 15.7 kg |
| Packaging content | |
| Cables included | AC, USB |
