Description
300 dpi, LCD, USB, Ethernet, Wi-Fi, 256 MB
Sophisticated TSC Sense Care
The TSC TPH Care Mechanism offers an advanced level of auto-detection ensuring real-time printhead health status, to monitor and prevent down. In addition, the MH261 series supports various media with a pre-printed black mark on top or bottom sides by user’s selection in the panel menu.
Dynamic Remote Printer Management
SOTI Connect and TSC Console provide enterprise remote printer management on multiple tasks to reduce maintenance costs and avoid downtime of business-critical devices.
Multi-Connectivity
The MH261 series offers GPIO to support common applicators and emulations along with an optional 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module.
Highly Adaptable to Various Media
MH261 printers can adapt to various media lengths and widths. The MH261T supports media width up to 6.8-inches, and the MH261 supports up to 4.5-inches. Additionally, the mechanism for fine adjustment to avoid ribbon wrinkles and ensures label print quality.
Brilliant User Experience
The MH241T and MH241P can easily adjust the media near-end sensor to detect the media and remind users to change the media roll on the color GUI display. The MH261 series allows users to easily replace printhead and platen roller without the need for specific tools.
Description

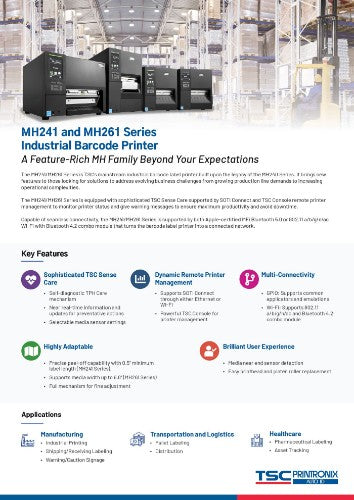

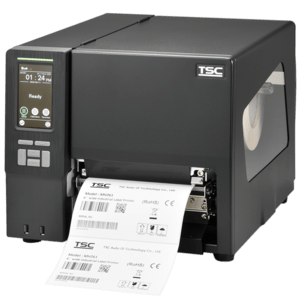

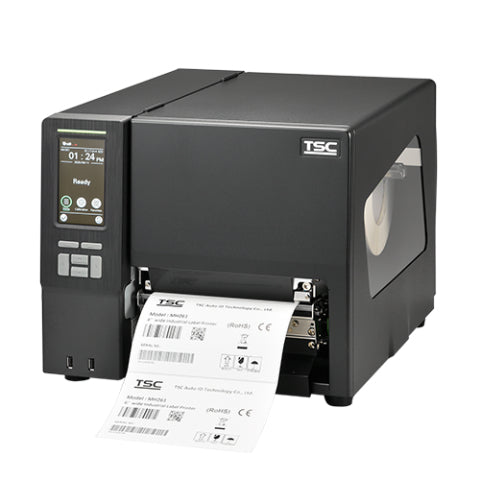

The MH261 Series is TSC's mainstream industrial barcode label printer built upon the legacy of the MH240 Series. It brings new features to those looking for solutions to address evolving business challenges from growing production line demands to increasing operational complexities.Sophisticated TSC Sense Care
The TSC TPH Care Mechanism offers an advanced level of auto-detection ensuring real-time printhead health status, to monitor and prevent down. In addition, the MH261 series supports various media with a pre-printed black mark on top or bottom sides by user’s selection in the panel menu.
Dynamic Remote Printer Management
SOTI Connect and TSC Console provide enterprise remote printer management on multiple tasks to reduce maintenance costs and avoid downtime of business-critical devices.
Multi-Connectivity
The MH261 series offers GPIO to support common applicators and emulations along with an optional 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module.
Highly Adaptable to Various Media
MH261 printers can adapt to various media lengths and widths. The MH261T supports media width up to 6.8-inches, and the MH261 supports up to 4.5-inches. Additionally, the mechanism for fine adjustment to avoid ribbon wrinkles and ensures label print quality.
Brilliant User Experience
The MH241T and MH241P can easily adjust the media near-end sensor to detect the media and remind users to change the media roll on the color GUI display. The MH261 series allows users to easily replace printhead and platen roller without the need for specific tools.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 16.8 cm |
| Printing | |
| Print speed | 254 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 16.8 cm |
| Print technology | Direct thermal / Thermal transfer |
| Display | |
| Colour display | Yes |
| Display resolution | 480 x 272 pixels |
| Display | LCD |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Paper handling | |
| Ribbon width | 17.8 cm |
| Ribbon length | 450 m |
| Core diameter | 7.62 cm |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Connectivity technology | Wired |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Number of fonts | 8 |
| Ribbon width | 17.8 cm |
| Ribbon length | 450 m |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Design | |
| Colour display | Yes |
| Display resolution | 480 x 272 pixels |
| Display | LCD |
| Product colour | Black |
| Control type | Buttons, Touch |
| Built-in display | Yes |
| Power | |
| Power consumption (printing) | 243 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Technical details | |
| Product colour | Black |
| Number of fonts | 8 |
| Ribbon width | 17.8 cm |
| Ribbon length | 450 m |
| Harmonized System (HS) code | 84433210 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 25 - 85% |
| Weight & dimensions | |
| Width | 357 mm |
| Depth | 514 mm |
| Height | 313 mm |
| Weight | 17.8 kg |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
